Why Choose the ABB MZ160 Meter Plate Expansion 1PW?

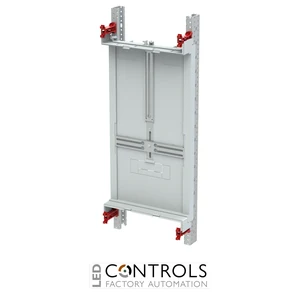

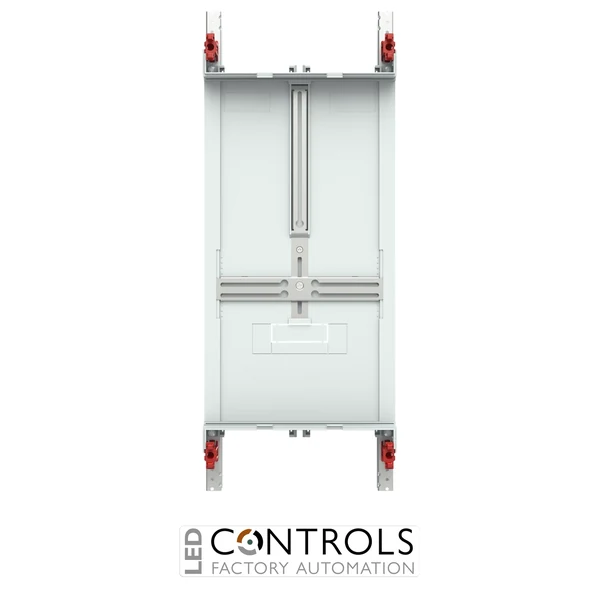

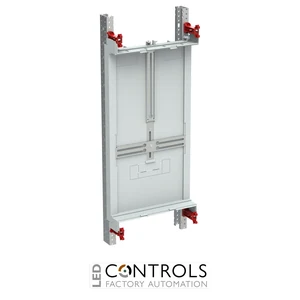

The ABB MZ160 is a meter mounting plate expansion module designed for ABB CombiLine N low-voltage sub-distribution assemblies. Supplied under ABB order code 2CPX041401R9999, it provides a dedicated mounting arrangement for one electricity meter with three-point fixing.
As part of the ABB DESUJ Sub Distribution product group, the MZ160 is intended for intermediate metering applications within professional distribution boards and switchgear assemblies. The module is supplied mounted for cabinet installation and incorporates plastic covers with 90-degree press-and-turn fasteners.
The MZ160 has a 1PW / 250 mm field width, a height of 450 mm and provides 36 PLE. It is suitable for installation from a cabinet depth of 225 mm and is designed for expansion on a WR mounting frame, which is ordered separately.
Key Advantages
- Purpose-designed meter plate expansion module for ABB CombiLine N systems.
- Accommodates one meter with three-point fixing.
- 1PW / 250 mm field width for modular distribution-board construction.
- Provides 36 PLE within a 450 mm high module.
- Suitable for intermediate metering applications.
- Designed for expansion on an ABB WR mounting frame.
Key Features
- ABB CombiLine N interior expansion system.
- MZ160 Meter Plate Expansion 1PW.
- Meter mounting plate for three-point meter attachment.
- Capacity for one meter.
- 3 RE / 450 mm module height.
- 1 field / 250 mm module width.
- 36 PLE installation capacity.
- Plastic covers with 90-degree press-and-turn fasteners.
Structured Meter Integration for CombiLine N Systems
The ABB MZ160 provides a dedicated mounting platform for incorporating a three-point electricity meter into a modular CombiLine N distribution assembly. This enables intermediate energy measurement to be integrated neatly alongside other switching, protection and distribution equipment.
Its compact 1PW format and WR mounting-frame compatibility make the MZ160 suitable for structured panel construction where dependable meter mounting, accessibility and efficient use of enclosure space are required.
Typical Applications
- ABB CombiLine N low-voltage distribution boards.
- Intermediate electricity metering.
- Commercial sub-distribution panels.
- Industrial distribution cabinets.
- Three-point electricity meter installations.
- Professional panel-building and switchgear applications.
