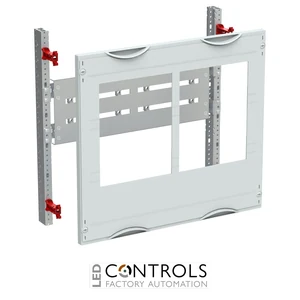

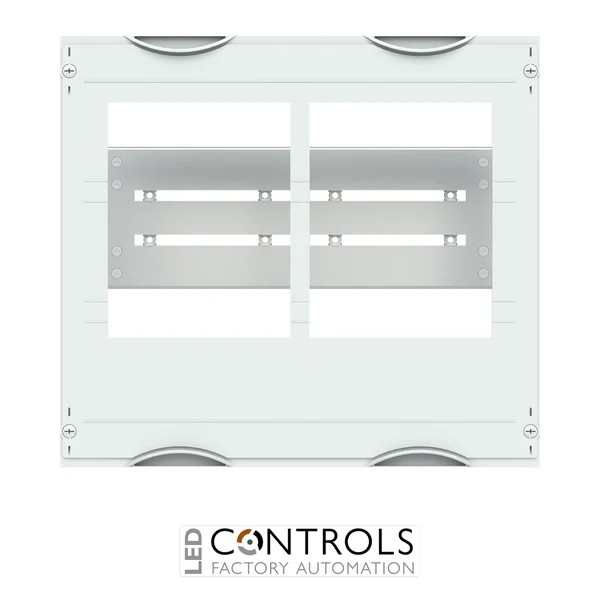

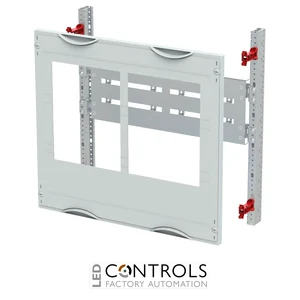

ABB MBT242 is a 2 PW CombiLine NH1 fuse switch expansion module for two ABB ZH431 fuse switch disconnectors with a 3-pole busbar system and a maximum module rated current of 440 A.
Why Choose the ABB MBT242 NH1 Fuse Switch Expansion 2PW?
The ABB MBT242 is an unassembled NH1 fuse switch disconnector expansion module designed for ABB CombiLine modular distribution assemblies. Supplied under ABB order code 2CPX041777R9999, it provides the mounting infrastructure for installing two ABB NH1 fuse switch disconnectors within compatible low-voltage distribution boards.
The MBT242 is designed for two NH1 fuse switch disconnectors and incorporates a 3-pole busbar system. It is intended for ABB ZH431 NH1 fuse switch disconnectors rated up to 250 A each and supports a maximum module rated current of 440 A in its single-level busbar arrangement.
With a height of 450 mm, width of 500 mm and cabinet-depth requirement of at least 200 mm, the MBT242 corresponds to a 3 RE × 2 PW configuration and provides 72 space units. RAL 7035 plastic covers with equipment cut-outs and 90-degree push-turn fasteners complete the modular assembly, while the fuse switch disconnectors, busbar accessories and mounting frame are selected separately.
Key Advantages
Purpose-designed NH1 fuse switch expansion for ABB CombiLine systems.
Provides mounting capacity for two NH1 fuse switch disconnectors.
Designed for ABB ZH431 250 A NH1 fuse switch disconnectors.
Integrated provision for a 3-pole busbar system.
Maximum module rated current of 440 A.
2 PW / 500 mm width with 72 space units for structured distribution-board integration.
Key Features
ABB MBT242 NH1 fuse switch expansion module.
ABB order code 2CPX041777R9999.
Part of the ABB CombiLine interior fitting system.
Supplied as an unassembled kit.
3 RE / 450 mm height.
2 PW / 500 mm width.
72 space units.
Prepared for 2 × NH1 fuse switch disconnectors.
Designed for ABB ZH431 fuse switch disconnectors.
Fuse switch disconnector rating up to 250 A.
3-pole busbar system.
Maximum module rated current of 440 A.
Plastic covers with equipment cut-outs.
RAL 7035 cover finish.
90-degree push-turn cover fasteners.
Suitable for cabinets from 200 mm depth.
Compatible EDF or WR mounting frame must be ordered separately.
NH Fuse Protection and Power Distribution for Electrical Assemblies
NH fuse switch disconnector modules such as the ABB MBT242 provide a structured method of integrating high-capacity fuse protection and switching into low-voltage distribution assemblies. The module positions compatible NH1 fuse switch disconnectors in conjunction with a three-pole busbar system, supporting protected outgoing circuits while maintaining an organised modular panel layout.
The ABB CombiLine system uses standardised interior components to create configurable distribution assemblies. With provision for two 250 A NH1 fuse switch disconnectors, a maximum module rated current of 440 A and a compact 2 PW configuration, the MBT242 provides a practical solution for fused power distribution in commercial and industrial switchboards.
Typical Applications
ABB CombiLine modular distribution assemblies.
NH1 fused outgoing distribution circuits.
Commercial and industrial sub-distribution boards.
Low-voltage electrical distribution cabinets.
Panel-building and switchboard applications.
Three-phase fused power-distribution systems.
Technical Specifications
Tick the specs you need, then view products that match.
Current
440 A
Product Series
S&J CombiLine N
Device Type
Mounting / Expansion Module
Series
CombiLine
ABB order code
2CPX041777R9999
Product type
NH1 fuse switch disconnector expansion module
Product group
DESUJ Sub Distribution
Delivery form
Unassembled kit
Height
450 mm / 3 RE
Width
500 mm / 2 PW
Space units
72
NH fuse size
NH1
Fuse switch disconnector capacity
2
Compatible fuse switch disconnector
ABB ZH431
Fuse switch disconnector rated current
Up to 250 A
Busbar system
3-pole
Maximum module rated current
440 A
Cover material
Plastic
Cover design
With cut-out
Colour
RAL 7035
Cover fastening
90-degree push-turn fastener
Minimum cabinet depth
200 mm
Mounting frame compatibility
EDF or WR
Quantity
1 piece
Frequently Asked Questions
What is the ABB MBT242 used for?
The MBT242 is an unassembled CombiLine expansion module designed to accommodate two NH1 fuse switch disconnectors and integrate them with a three-pole busbar system in compatible electrical distribution assemblies.
Which fuse switch disconnectors are designed for the MBT242?
The MBT242 is designed for up to two ABB ZH431 NH1 fuse switch disconnectors, each rated up to 250 A.
What is the maximum rated current of the ABB MBT242?
The MBT242 supports a maximum module rated current of 440 A with its single-level three-pole busbar arrangement.
What size is the ABB MBT242?
The MBT242 has a height of 450 mm / 3 RE and a width of 500 mm / 2 PW, provides 72 space units and is suitable for cabinets from 200 mm depth.
Does the ABB MBT242 include the NH1 fuse switch disconnectors?
No. The MBT242 is supplied unpopulated; the compatible NH1 fuse switch disconnectors and the required EDF or WR mounting frame must be ordered separately.
