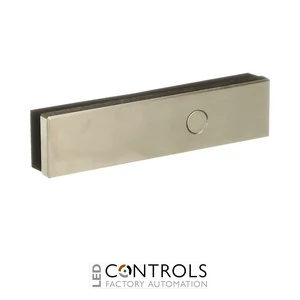

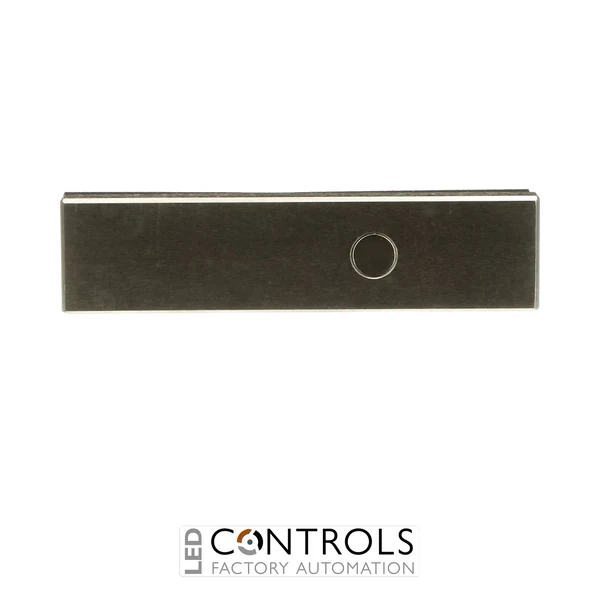

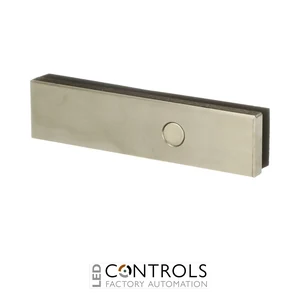

ABB 2TLA042023R0420 Magne Anchor 32E is a single-hole anchor plate with an integrated permanent magnet providing approximately 30 N holding force and supplied Magne rubber for compatible ABB Magne electromagnetic process locks.
£30.21
The ABB 2TLA042023R0420, designated Magne Anchor 32E, is an anchor plate with an integrated permanent magnet designed for compatible ABB Magne electromagnetic process locks. Classified within the Sensors/Switches product group, it forms the door-side component against which the Magne locking unit develops its electromagnetic holding force.
The Anchor 32E incorporates a permanent magnet providing approximately 30 N holding force when the Magne electromagnetic lock is released. This light retaining force helps keep a machine door or hatch closed during normal operation while still allowing it to be opened easily when access is required.
A single mounting hole allows the anchor plate to align against the Magne locking surface, while the supplied Magne rubber provides compliant mounting for effective surface contact. The Anchor 32E is therefore a purpose-designed mechanical accessory for complete ABB Magne 3 and Magne 4 process-locking installations.
ABB Magne process locks use electromagnetic force to hold machine doors and hatches closed. The Magne Anchor 32E provides the corresponding door-side anchor surface and includes a permanent magnet that supplies approximately 30 N of holding force when the main Magne electromagnetic locking function is released.
This residual holding force is intended to keep the door or hatch conveniently closed without preventing normal manual opening. The single-hole mounting arrangement and supplied Magne rubber allow the anchor plate to move sufficiently for effective contact with the Magne locking surface. A complete Magne installation requires the appropriate frame-side Magne unit and door-side components, with additional Eva sensing components required for applicable Magne 4 configurations.
Tick the specs you need, then view products that match.
| Device Type | Mounting / bracket | |
|---|---|---|
| Product group | Sensors/Switches | |
| Product family | Magne | |
| Order code | 2TLA042023R0420 | |
| Product type | Anchor plate with permanent magnet | |
| Accessory type | Magne electromagnetic process-lock accessory | |
| Function | Door-side anchor plate for electromagnetic process locking | |
| Compatible product family | ABB Magne 3 / Magne 4 | |
| Permanent magnet | Yes | |
| Permanent-magnet holding force | 30 N | |
| Number of mounting holes | 1 | |
| Included component | Magne rubber | |
| Electrical connection | None | |
| GTIN / EAN | 7350024485943 | |
| Customs tariff number | 7326909290 |
The ABB Magne Anchor 32E is an anchor plate with a permanent magnet for compatible ABB Magne electromagnetic process locks, providing the door-side surface required for electromagnetic locking.
Yes. The Magne Anchor 32E incorporates a permanent magnet providing approximately 30 N of holding force when the Magne electromagnetic lock is released.
The approximately 30 N permanent-magnet force helps keep the machine door or hatch closed when Magne is unlocked while remaining light enough for the door to be opened easily when access is required.
The Anchor 32E contains a permanent magnet that provides approximately 30 N of retaining force when unlocked, whereas the Anchor 32D is supplied without a permanent magnet.
Yes. ABB supplies the Magne Anchor 32E with Magne rubber, providing the compliant mounting needed for effective contact and alignment with the Magne locking unit.
ABB Magne Anchor 32E combines a dedicated Magne anchor surface, single-hole mounting, supplied Magne rubber and approximately 30-newton permanent-magnet retention to help keep machine doors conveniently closed when the electromagnetic process lock is released.
