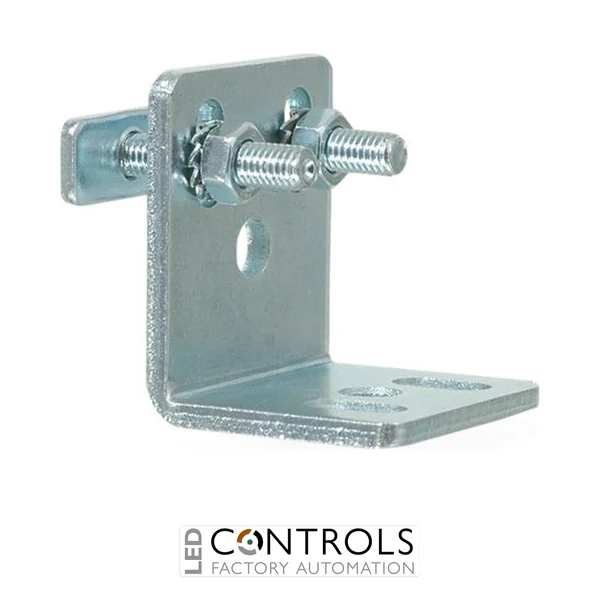

ABB JSM Orion09 six-bracket mounting kit for installing Orion3 Base and Orion3 Extended safety light guards with heights of 1200 mm or more in an ABB Orion Stand.
£66.84
The ABB JSM Orion09 is a dedicated mounting kit for installing Orion3 safety light guards in an ABB Orion Stand. Identified by part number 2TLA022310R0700, the kit is designed specifically for longer Orion3 installations where additional mechanical support is required.
The JSM Orion09 kit contains 6 mounting brackets and is intended for Orion3 light guards with a height of 1200 mm or more. It provides the mechanical interface required to mount compatible Orion3 active and passive units securely within an Orion protective stand.
Compatible with ABB Orion3 Base and Orion3 Extended safety light grids, the JSM Orion09 supports neat, stable installation around machine access points, robot cells and automated production areas. For Orion3 units shorter than 1200 mm, ABB specifies the corresponding four-bracket JSM Orion08 kit.
Correct mechanical support and alignment are important when installing electro-sensitive protective equipment. The ABB JSM Orion09 provides the dedicated mounting hardware required to secure longer Orion3 safety light guards within an Orion Stand, helping maintain a stable installation around hazardous machinery and access points.
The six-bracket configuration is specifically intended for Orion3 light guards measuring 1200 mm or more. Using the matching ABB mounting kit helps machine builders and safety-system integrators create a consistent installation using components designed to work together as part of the Orion safeguarding system.
Tick the specs you need, then view products that match.
| Device Type | Mounting / bracket | |
|---|---|---|
| Manufacturer | ABB | |
| Product family | Orion accessories | |
| Model | JSM Orion09 | |
| Part number | 2TLA022310R0700 | |
| Product type | Safety light guard mounting bracket kit | |
| Application | Mounting Orion3 in Orion Stand | |
| Number of brackets | 6 | |
| Compatible product ranges | Orion3 Base and Orion3 Extended | |
| Compatible light guard height | 1200 mm or more | |
| Mounting type | Stand mounting | |
| Product net weight | approx. 0.2 kg | |
| HS Code | 73269098 | |
| Country of Manufacture | Italy |
The ABB JSM Orion09 is a mounting kit for installing Orion3 safety light guards in an ABB Orion Stand.
The JSM Orion09 kit contains 6 mounting brackets.
The JSM Orion09 is designed for Orion3 light guards with a height of 1200 mm or more.
Yes. The JSM Orion09 is suitable for compatible Orion3 Base and Orion3 Extended safety light guards installed in an Orion Stand.
For Orion3 light guards shorter than 1200 mm, ABB specifies the JSM Orion08 four-bracket mounting kit.
ABB Jokab Safety mounting accessories such as the JSM Orion09 provide machine builders, automation engineers and system integrators with purpose-designed hardware for secure and consistent installation of Orion3 safety light guards in industrial safeguarding systems.
