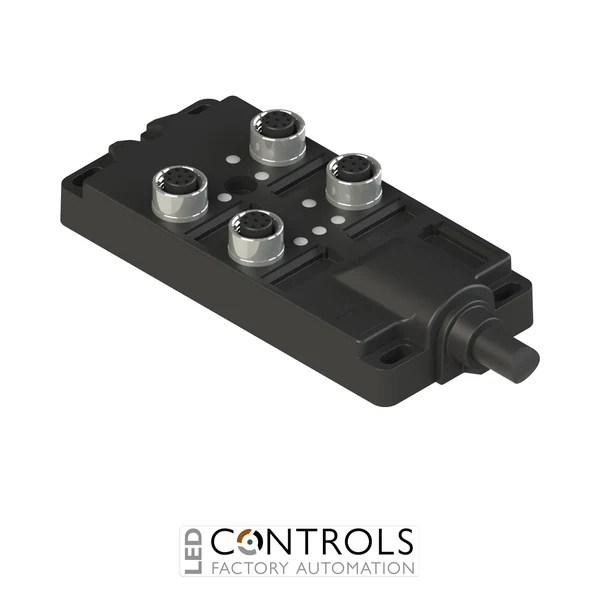

Pizzato BC 1Z4A1A1AF10 is a BC series passive junction box with four 8-pole M12 female inputs, 24 V DC supply, 10 m 12-core PVC output cable and a compact IP65/IP67 technopolymer housing for industrial safety-device distribution.
£165.24
The Pizzato BC 1Z4A1A1AF10 is a BC series passive junction box designed to simplify the connection of compatible industrial safety devices within machine safety systems. Its compact distribution architecture brings multiple device connections together into a single output, helping machine builders create cleaner and more efficient safety-system wiring.
This configuration provides four 8-pole M12 female inputs within a compact 54 × 115 mm technopolymer housing. It operates from a 24 V DC supply and uses a common I3/IE1 input for the connected devices, providing a practical connection solution for compatible Pizzato safety equipment.
The BC 1Z4A1A1AF10 is equipped with an axial 12 × 0.5 mm² PVC cable with a length of 10 m. With IP65 and IP67 protection, integrated diagnostic indication and a robust sealed housing, the unit is well suited to industrial machinery where organised safety-device distribution and straightforward maintenance are required.
The Pizzato BC series is designed to simplify safety-device wiring by grouping multiple connections within a compact passive distribution box. Rather than routing separate cables from every compatible field device back to the control system, the BC 1Z4A1A1AF10 allows four devices to be connected through its M12 inputs and consolidates the associated wiring into a single multi-core output cable.
This approach can reduce wiring complexity, improve cable organisation and make replacement of connected devices more straightforward. The compact sealed technopolymer enclosure, M12 connections and integrated diagnostic LEDs make the BC 1Z4A1A1AF10 particularly useful for distributed machine safety installations where robust connectivity and efficient troubleshooting are priorities.
Tick the specs you need, then view products that match.
| Device Type | Cable / Connector | |
|---|---|---|
| Manufacturer | Pizzato Elettrica | |
| Series | BC | |
| Model | BC 1Z4A1A1AF10 | |
| Alternative SKU | BC1Z4A1A1AF10 | |
| Product type | Passive junction box | |
| Number of inputs | 4 | |
| Input connection | M12 female, 8-pole | |
| Input signal management | Single I3/IE1 input common to all devices | |
| Supply voltage | 24 V DC | |
| Output connection | Axial PVC cable | |
| Cable configuration | 12 × 0.5 mm² | |
| Cable length | 10 m | |
| Housing material | Technopolymer | |
| Housing dimensions | 54 × 115 mm | |
| Protection rating | IP65 / IP67 | |
| Ambient operating temperature | -20 to +50 °C | |
| Diagnostics | Integrated LED signalling | |
| Barcode / EAN | 8018851630613 | |
| HS Code | 85369095 |
The BC 1Z4A1A1AF10 is a BC series passive junction box designed to consolidate connections from compatible industrial safety devices into a more organised machine wiring arrangement.
It provides four M12 female 8-pole inputs for connection of compatible safety devices.
The passive junction box is designed for a 24 V DC supply.
This configuration has an axial 12 × 0.5 mm² PVC cable with a length of 10 m.
The BC 1Z4A1A1AF10 uses a compact technopolymer housing measuring 54 × 115 mm.
The junction box is rated IP65 and IP67, supporting installation in demanding industrial machine environments.
Yes. The BC series incorporates LED diagnostic signalling to provide rapid visual indication of connected-device status.
The compact alternative product SKU is BC1Z4A1A1AF10.
Pizzato Elettrica BC series passive junction boxes provide machine builders, automation engineers and system integrators with a practical way to consolidate safety-device connections, simplify field wiring and support efficient diagnostics in modern industrial machinery.
