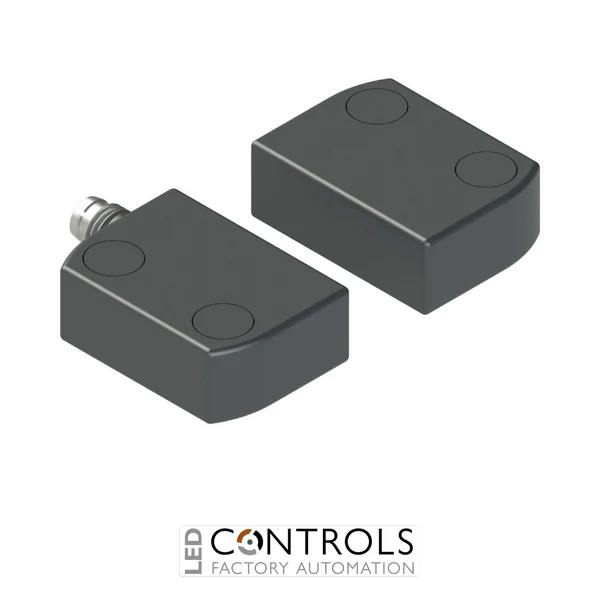

Pizzato SRAL40ALK-A01N coded magnetic safety switch with SM A01N actuator, 2NC contacts, IP67 protection, 5 mm actuation distance, and M8 connector for industrial machine guarding applications.
£36.36
The Pizzato SRAL40ALK-A01N is a compact coded magnetic safety switch with integrated actuator designed for reliable monitoring of machine guards, doors, and protective covers in industrial automation systems. It is part of the proven Pizzato SR-A safety switch series, widely used in OEM machinery where non-contact safety interlocking and high reliability are required.
This model integrates a coded magnetic sensor with the SM A01N actuator, ensuring the switch only operates when the correct actuator is present. This enhances tamper resistance and ensures safe machine shutdown when the guard is opened or misaligned.
With a robust technopolymer housing, IP67 protection rating, and an operating distance of up to 5 mm, the SRAL40ALK-A01N is suitable for packaging equipment, automated production lines, and general industrial safety applications requiring dependable guard monitoring. RatingValue: 4.7
The SRAL40ALK-A01N uses a coded magnetic system that detects only its matched actuator. When the guard is opened or the actuator moves out of range, the safety contacts open and the machine is safely stopped.
This non-contact design reduces mechanical wear and ensures stable operation in harsh industrial environments with dust, vibration, or contamination.
Tick the specs you need, then view products that match.
| Sensing Principle | Magnetic (coded) | |
|---|---|---|
| Contacts | 2NC | |
| Connection | M8 connector | |
| Product Series | Pizzato SR (magnetic) | |
| IP Rating | IP67 | |
| Series | SR-A | |
| Product type | Coded magnetic safety switch with actuator | |
| Contacts | 2NC | |
| Protection rating | IP67 | |
| Housing material | Technopolymer (industrial plastic) | |
| Actuator type | SM A01N integrated coded magnetic actuator | |
| Actuation distance | 5 mm | |
| Connection type | M8 4-pin connector (left-side) | |
| HS Code | 85369095 |
It is used to monitor safety guards and machine doors, ensuring machinery stops when a guard is opened.
Yes, it includes the SM A01N integrated coded actuator for matched operation.
The switch operates at a distance of up to 5 mm.
It uses an M8 4-pin connector for quick installation and secure wiring.
Pizzato SR-A series coded magnetic safety switches are widely used in industrial automation to provide reliable non-contact guard monitoring and support modern machinery safety standards in OEM production environments.
