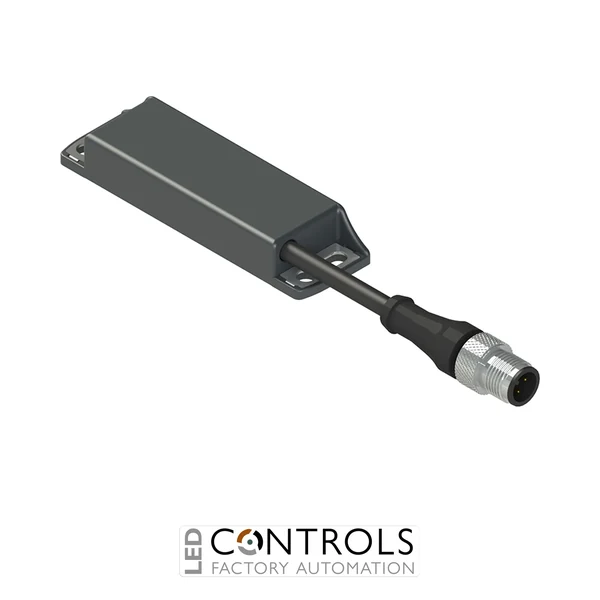

Pizzato SR BD41AM0.2 coded magnetic safety sensor with 2NC plus 1NO contacts and M12 connector for industrial machine guarding applications.
£39.32
The Pizzato SR BD41AM0.2 is a compact and reliable coded magnetic safety sensor designed for monitoring machine guards, safety doors and protective barriers in industrial automation systems. As part of the Pizzato SR-B series coded magnetic safety sensors, it provides dependable non-contact safety monitoring with robust construction and reliable switching performance.
The SR BD41AM0.2 uses a coded magnetic actuator system to detect the correct actuator position and provide safety switching signals. Its non-contact operating principle eliminates mechanical wear, while the reinforced technopolymer housing and metal fixing plates provide improved durability for industrial applications.
Featuring a 2NC + 1NO contact configuration, a 0.2 m cable connection with M12 connector and IP67 / IP69K protection, the SR BD41AM0.2 is suitable for machine guarding applications requiring reliable safety interlocking and straightforward electrical integration.
Coded magnetic safety sensors provide a dependable solution for monitoring movable guards, machine doors and access points. The coded actuator system ensures the sensor responds only to the correct actuator, helping improve machine safety and reduce the risk of unintended operation.
The Pizzato SR-B series is designed for industrial automation environments where compact dimensions, resistance to contamination and dependable safety performance are required. The sensors can be combined with suitable safety modules to create high-performance machine protection systems.
Tick the specs you need, then view products that match.
| Connection | M12 connector | |
|---|---|---|
| Sensing Principle | Magnetic (coded) | |
| Contacts | 1NO + 2NC | |
| Product Series | Pizzato SR (magnetic) | |
| IP Rating | IP67, IP69K | |
| Manufacturer | Pizzato Elettrica | |
| Series | SR-B Coded Magnetic Safety Sensors | |
| Model | SR BD41AM0.2 | |
| Product type | Safety magnetic sensor | |
| Actuation type | Coded magnetic actuator system | |
| Output type | Reed contact switching | |
| Contact configuration | 2NC + 1NO | |
| Housing material | Glass-reinforced technopolymer with metal fixing plates | |
| Protection rating | IP67 / IP69K | |
| Operating temperature | -20°C to +80°C | |
| Connection type | 0.2 m cable with M12 connector | |
| Application | Machine guarding and safety interlocking | |
| HS Code | 85369095 |
The Pizzato SR BD41AM0.2 is used for monitoring machine guards, safety doors and protective barriers in industrial safety applications.
The SR BD41AM0.2 is a coded magnetic safety sensor from the Pizzato SR-B series.
The sensor provides a 2NC + 1NO contact configuration for safety circuit monitoring.
The sensor uses a 0.2 m cable with M12 connector for electrical connection.
No, the SR BD41AM0.2 is supplied as a sensor only and requires a compatible coded magnetic actuator.
Pizzato SR-B series coded magnetic safety sensors are widely used by automation engineers and machine builders to provide reliable non-contact safety monitoring for industrial machinery and protective guarding systems.
