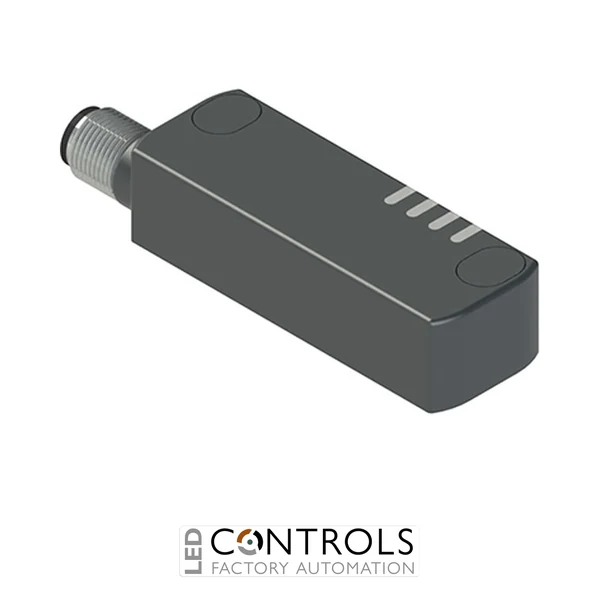

Pizzato ST DL420MK is a programmable 24 V DC ST D series RFID safety sensor with two safety inputs, two safety outputs, one signalling output, one programming input, an M12 connection and IP67/IP69K protection for industrial machine guard monitoring.
£80.86
The Pizzato ST DL420MK is a programmable RFID non-contact safety sensor from the Pizzato ST D series, designed for monitoring machine guards, access doors and protective devices in industrial automation systems. Its electronic non-contact operating principle eliminates mechanical switching between the sensor and actuator, helping reduce wear and support reliable operation on frequently accessed machinery.
Operating from a 24 V DC supply, the ST DL420MK provides two IS1–IS2 safety inputs, two OS1–OS2 safety outputs, one O3 signalling output and one I3 programming input. The 420 configuration provides programmable functionality for flexible integration into machine safety architectures and can be incorporated into suitably designed systems up to PL e, Category 4 and SIL 3.
The ST DL420MK features an M12 connector positioned on the left for convenient machine wiring and servicing. Its robust technopolymer housing, IP67 / IP69K protection and operating temperature range of -25 °C to +70 °C make it suitable for demanding industrial environments. The appropriate compatible RFID actuator can be selected according to the required actuation distance and coding level.
Pizzato ST D RFID safety sensors monitor movable guards and protective devices without requiring mechanical switching contact between the sensor and actuator. This contactless principle helps reduce mechanical wear and provides dependable guard monitoring for machinery where doors and protective guards are frequently opened during production, maintenance, cleaning or changeover procedures.
The ST DL420MK combines programmable safety functionality with two safety inputs, two safety outputs and an M12 connection, making it suitable for flexible machine safety architectures. Compatible ST D actuators are available with different coding levels and actuation distances, allowing machine builders to select the actuator configuration appropriate to the application's safety and installation requirements.
Tick the specs you need, then view products that match.
| Connection | M12 connector | |
|---|---|---|
| Sensing Principle | RFID (coded) | |
| Contacts | 2 safety outputs (OSSD) + 1 signalling | |
| Product Series | Pizzato ST D (RFID) | |
| IP Rating | IP67, IP69K | |
| Manufacturer | Pizzato Elettrica | |
| Series | ST D Safety Sensor Series | |
| Model | ST DL420MK | |
| SKU | STDL420MK | |
| Product type | Programmable RFID non-contact safety sensor | |
| Technology | RFID coded non-contact switching | |
| Supply voltage | 24 V DC | |
| Safety inputs | 2 (IS1–IS2) | |
| Safety outputs | 2 (OS1–OS2) | |
| Signalling output | 1 (O3) | |
| Programming input | 1 (I3) | |
| Programmable | Yes | |
| Connection type | M12 connector | |
| Connection position | Left | |
| Housing material | Technopolymer | |
| Protection rating | IP67 / IP69K | |
| Operating temperature | -25 °C to +70 °C | |
| Safety performance | Up to PL e, Category 4 / SIL 3 in suitably designed safety systems | |
| HS Code | 85369095 |
The ST DL420MK is a programmable RFID safety sensor designed for non-contact monitoring of machine guards, access doors and protective devices in industrial machinery and automation systems.
The ST DL420MK provides two IS1–IS2 safety inputs, two OS1–OS2 safety outputs, one O3 signalling output and one I3 programming input for integration into machine safety systems.
The ST DL420MK uses an M12 connector positioned on the left, providing a convenient detachable connection for installation, maintenance and sensor replacement.
The ST DL420MK can be paired with a compatible Pizzato ST D RFID actuator. The actuator should be selected according to the required coding level, actuation distance and installation arrangement.
Yes. The ST D series features robust technopolymer construction, IP67 / IP69K protection and an operating temperature range of -25 °C to +70 °C, supporting use in demanding industrial machinery applications.
Pizzato ST D series RFID safety sensors provide machine builders and automation engineers with reliable non-contact guard monitoring, programmable safety functionality and flexible integration for demanding industrial machinery and automated production systems.
