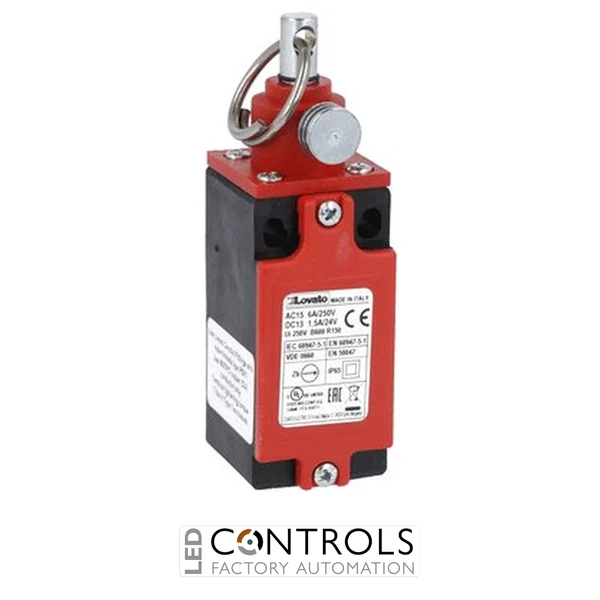

Lovato RS131310 is an ISO 13850 compliant rope-pull safety limit switch for emergency stopping with a manual reset button, 1NO+1NC contacts and a 25 N operating force.
£41.52
The Lovato RS131310 is a rope-pull safety limit switch for emergency stopping, designed to provide accessible emergency-stop control along machinery and conveyor installations. It features a rope-pull lever, front manual RESET button, 1NO+1NC contacts and a 25 N operating force.
Designed in accordance with ISO 13850 emergency-stop principles, the RS131310 allows an emergency command to be initiated by pulling a connected rope rather than requiring access to a single local pushbutton. Following actuation, the switch remains in its emergency condition until it is intentionally restored using the reset button, helping prevent unintended automatic restart.
The RS131310 uses a durable polymer thermoplastic housing, self-releasing screw terminals and a PG11 cable entry. With a 10 A conventional thermal current, 250 V rated insulation voltage and mechanical endurance of 100,000 cycles, it provides a practical safety switching solution for industrial machinery and material-handling systems.
Rope-pull safety switches provide an effective emergency-stop solution where personnel need access to a stopping command along an extended section of machinery. Instead of relying on a single fixed emergency-stop pushbutton, the Lovato RS131310 can be connected to a suitably designed rope system so an emergency command can be initiated from accessible positions along the protected area.
The 1NO+1NC contact arrangement allows the RS131310 to interface with appropriate machine-control and safety circuits, while the manual reset mechanism requires deliberate intervention following operation. This combination makes the switch particularly suitable for conveyors, material-handling equipment and other machinery where emergency-stop accessibility is required over an extended operating area.
Tick the specs you need, then view products that match.
| Device Type | Rope-pull switch | |
|---|---|---|
| Reset Type | Manual | |
| Auxiliary Contacts | 1 NC | |
| Manufacturer | Lovato Electric | |
| Model | RS131310 | |
| Product type | Safety limit switch | |
| Product designation | Rope-pull lever with reset button | |
| Application | Emergency stopping | |
| Operating mechanism | Rope-pull lever | |
| Reset | Manual reset button | |
| Housing material | Polymer thermoplastic | |
| Contact configuration | 1NO+1NC | |
| Operating force | 25 N | |
| Conventional thermal current Ith | 10 A | |
| Rated insulation voltage Ui | 250 V | |
| Short-circuit protection | 10 A gG fuse | |
| Average resistance per pole | <10 mΩ | |
| Mechanical life | 100,000 cycles | |
| Maximum mechanical operating frequency | 1,800 cycles/h | |
| Operating head fixing | Screwed | |
| Cable connection | Self-releasing screw terminal | |
| Cable entry | PG11 | |
| Maximum conductor size | 2.5 mm² / 14 AWG | |
| Maximum switch fixing torque | 2.5 Nm | |
| Maximum contact terminal tightening torque | 0.8 Nm | |
| Pollution degree | 3 | |
| Operating temperature | -25 to +70 °C | |
| Storage temperature | -40 to +70 °C | |
| ETIM classification | EC000030 - End switch | |
| Compliance | ISO 13850 | |
| Package quantity | 1 | |
| Package dimensions | 100 × 44 × 32 mm | |
| Package volume | 140.8 cm³ | |
| EAN | 8013975086490 | |
| HS code | 85365080 |
The RS131310 is a rope-pull safety limit switch for emergency stopping, allowing an emergency-stop command to be initiated through a connected rope system on industrial machinery and equipment.
Yes. The RS131310 incorporates a reset button that provides deliberate manual restoration after the rope-pull emergency mechanism has been actuated.
The Lovato RS131310 has 1NO+1NC contacts, comprising one normally open and one normally closed contact.
The RS131310 has a specified rope-pull operating force of 25 N.
Yes. Lovato specifies the RS131310 as a rope-pull limit switch for emergency stopping compliant with ISO 13850, making it suitable for appropriately designed industrial emergency-stop systems.
