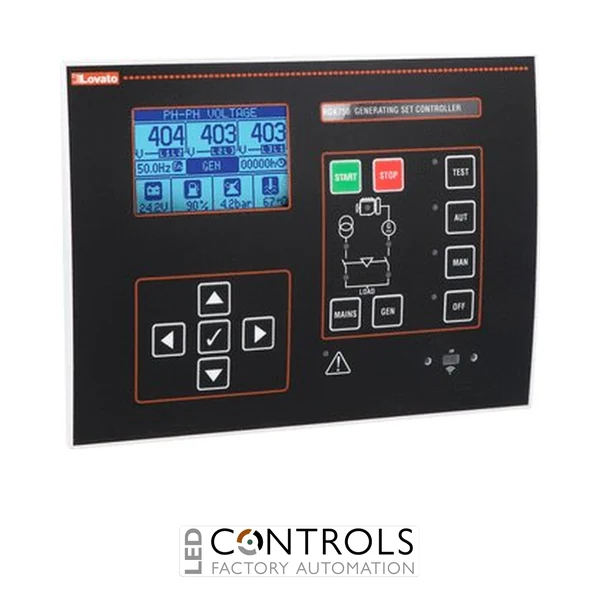

Lovato RGK750 is a 12/24 V DC Automatic Mains Failure gen-set controller with graphic display, CANbus, expandable I/O and IP65 front protection for automatic generator monitoring and mains-generator switching.
£435.46
The Lovato RGK750 is an advanced Automatic Mains Failure (AMF) generator set controller designed for automatic control, monitoring and protection of generating sets with mains-generator changeover management. As part of the Lovato RGK series of engine and generator controllers, it combines comprehensive electrical measurement, engine management and programmable control functions in a robust panel-mounted unit.
The RGK750 automatically monitors the mains supply and manages generator operation and mains-generator switching when required. Its 128 × 80 pixel backlit graphic LCD, function keys, status LEDs and built-in buzzer provide a clear operator interface, while advanced programmable inputs and outputs allow the controller to be configured for a wide variety of generator installations.
Designed for 12/24 V DC battery systems, the RGK750 measures generator and mains voltages from 100–480 V AC and supports three-phase 1 A or 5 A current transformer inputs. Integrated CANbus communication, front optical programming connectivity and two expansion slots for EXP modules provide extensive integration and expansion possibilities for modern generator control systems.
Automatic Mains Failure controllers such as the Lovato RGK750 continuously supervise the electrical supply and coordinate generator operation when mains power is unavailable. The controller manages the generator starting sequence and mains-generator switching logic while monitoring electrical and engine parameters, helping provide dependable standby power operation.
The RGK750 is designed for sophisticated generator installations requiring flexible control and communications. Programmable I/O, CANbus connectivity and two EXP expansion slots allow the controller to be adapted with additional digital I/O, static or relay outputs and compatible communication interfaces, making it suitable for both standard standby generator systems and more complex power control applications.
Tick the specs you need, then view products that match.
| Device Type | ATS controller | |
|---|---|---|
| HS Code | 85389091 | |
| Manufacturer | Lovato Electric | |
| Series | RGK Engine and Generator Controllers | |
| Model | RGK750 | |
| Product type | Automatic Mains Failure (AMF) gen-set controller | |
| Function | Automatic mains-generator control and switching management | |
| Rated battery voltage | 12/24 V DC | |
| Voltage measurement range | 100–480 V AC | |
| Frequency range | 45–65 Hz | |
| Voltage measurement method | TRMS | |
| Rated current input | 1 A / 5 A | |
| Current measurement range | 0.05–1.2 A or 0.05–6 A | |
| Current inputs | Three-phase, /1 A or /5 A | |
| Current measurement method | TRMS | |
| Digital inputs | 8 negative + 1 positive | |
| Speed input | W signal, generator frequency or pick-up | |
| Static outputs | 6 SSR + 1 static output | |
| Relay outputs | 3 | |
| CANbus | Yes | |
| Display | 128 × 80 pixel backlit graphic LCD | |
| Operator controls | 13 function and setting keys | |
| Status indication | 10 LEDs | |
| Audible indication | Built-in buzzer | |
| Expansion | 2 slots for EXP series modules | |
| Maximum I/O | 12 inputs + 13 outputs with EXP modules | |
| Front dimensions (W × H) | 240 × 180 mm | |
| Panel cut-out | 220 × 160 mm | |
| Protection rating | IP65 front | |
| Weight | 976.6 g | |
| EAN | 8013975234211 | |
| Standards | IEC/EN 61010-1, IEC/EN 61000-6-2, IEC/EN 61000-6-3 |
The RGK750 is an Automatic Mains Failure generator set controller used to monitor mains and generator supplies, control generator operation and manage automatic mains-generator switching.
The controller is designed for a 12/24 V DC battery supply, making it suitable for common generator starting and control systems.
The RGK750 provides a voltage measurement range of 100–480 V AC with a frequency range of 45–65 Hz.
Yes. The RGK750 includes an integrated CANbus interface for communication with compatible electronic engine control systems.
Yes. The controller has two expansion slots for Lovato EXP series modules, allowing compatible communication interfaces and additional digital, static or relay I/O to be added.
Lovato RGK engine and generator controllers provide comprehensive monitoring, automatic mains failure management and flexible system integration for reliable standby and industrial generator installations.
