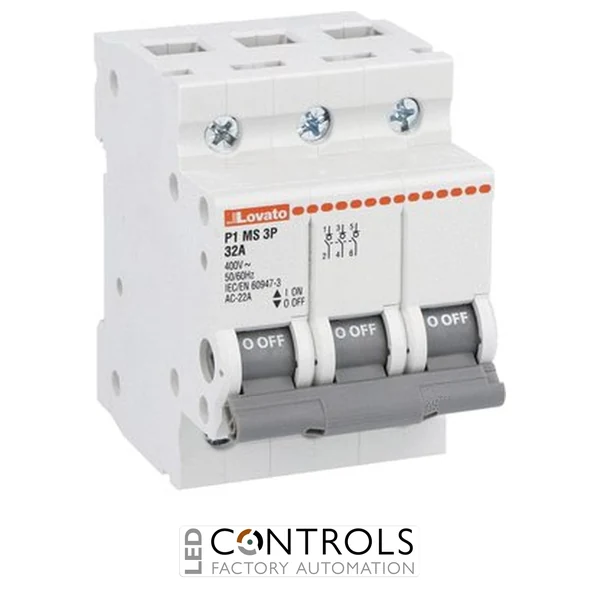

Lovato P1MS3P032 is a 32 A three-pole modular switch disconnector rated for 400–440 V AC, designed for switching and isolation of industrial three-phase electrical circuits.
£22.51
The Lovato P1MS3P032 is a compact three-pole modular switch disconnector designed for the safe switching, disconnection and isolation of electrical power circuits. Part of the Lovato P1MS series, it provides a practical DIN rail mounted isolation solution for industrial control panels, distribution boards and machinery.
Rated at 32 A, the P1MS3P032 is suitable for three-phase circuits with an IEC rated operational voltage of 400–440 V AC. Its AC-22A utilisation category allows switching of mixed resistive and inductive loads, while clear contact-status indication helps operators identify the switching state of the device.
The three-pole device occupies 3 DIN modules and mounts directly onto standard 35 mm DIN rail. With a rated insulation voltage of 1000 V, 4 kV impulse withstand rating and compatibility with optional auxiliary-contact and padlocking accessories, it provides dependable isolation for modern industrial electrical systems.
Switch disconnectors such as the Lovato P1MS3P032 provide a defined means of switching and isolating electrical circuits for operation, servicing and maintenance. The three mechanically linked poles enable simultaneous disconnection of all three phases in a compatible three-phase installation.
The P1MS series is designed for modular electrical panels and can also switch suitable resistive and inductive loads. Its compact DIN rail construction, clear contact indication and optional auxiliary-contact and padlocking accessories make the P1MS3P032 a versatile choice for industrial power distribution and machine-control systems.
Tick the specs you need, then view products that match.
| Device Type | Modular Switch Disconnect | |
|---|---|---|
| Mounting Type | DIN rail | |
| Current | 32 A | |
| Poles | 3-pole | |
| HS Code | 85362010 | |
| Manufacturer | Lovato Electric | |
| Series | P1MS | |
| Model | P1MS3P032 | |
| Product type | Modular switch disconnector | |
| Number of poles | 3P | |
| Rated current | 32 A | |
| Rated operational voltage | 400–440 V AC | |
| Rated frequency | 50/60 Hz | |
| Utilisation category | AC-22A | |
| Rated insulation voltage (Ui) | 1000 V | |
| Rated impulse withstand voltage (Uimp) | 4 kV | |
| Conditional short-circuit rating | 25 kA with 63 A gG fuse; 15 kA with 125 A gG fuse | |
| Rated short-time withstand current | 12 × Ie for 1 s | |
| Number of DIN modules | 3 | |
| Mounting | 35 mm DIN rail | |
| Normal operating position | Vertical plane | |
| Conductor section | 1–50 mm² | |
| Terminal tightening torque | 3.2–3.5 Nm | |
| Terminal tool | PZ2 | |
| Electrical life | 1,000 cycles | |
| Mechanical life | 7,000 cycles | |
| Operating temperature | -25 to +70 °C | |
| Storage temperature | -25 to +70 °C | |
| Maximum altitude | 2,000 m | |
| Pollution degree | 3 | |
| Weight | approx. 250 g | |
| Compliance | IEC/EN/BS 60947-3 |
The P1MS3P032 is a three-pole modular switch disconnector primarily used for switching, disconnecting and isolating three-phase electrical power circuits.
The P1MS3P032 has an IEC rated current of 32 A.
The three-pole P1MS3P032 has an IEC rated operational voltage of 400–440 V AC at 50/60 Hz.
Yes. The P1MS series has an AC-22A utilisation category and is designed for switching suitable mixed resistive and inductive loads as well as circuit isolation.
The P1MS3P032 occupies 3 DIN modules and is designed for mounting on standard 35 mm DIN rail inside compatible electrical panels and distribution equipment.
Lovato Electric P1MS modular switch disconnectors provide compact and dependable switching and isolation for industrial power distribution, control panels and machinery, with DIN rail mounting and IEC-compliant performance for professional electrical installations.
