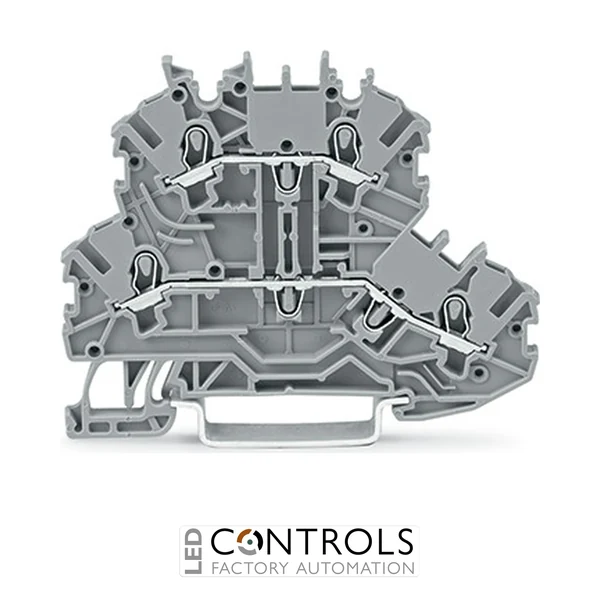

WAGO 2000-2201 is a grey TOPJOB S double-deck through/through L/L terminal block with Push-in CAGE CLAMP connection technology, a 1 mm² nominal cross-section and ratings of 13.5 A and 500 V.
£1.09
The WAGO 2000-2201 is a compact double-deck through/through terminal block from the WAGO TOPJOB® S 2000 Series, designed to provide two separate feed-through potentials within a space-saving DIN rail footprint. Its L/L configuration is particularly suited to industrial control panels, machinery and automation systems where high connection density and organised wiring are important.
The terminal block uses WAGO's proven Push-in CAGE CLAMP® connection technology, allowing suitable solid and ferruled conductors to be inserted directly without tools while also accommodating other conductor types using the operating tool. The spring-pressure connection maintains reliable contact without routine screw retightening and is well suited to vibration-prone industrial applications.
With a nominal conductor cross-section of 1 mm², a rated current of 13.5 A and a rated voltage of 500 V, the 2000-2201 provides four connection points across two electrically separate levels. Its slim 3.5 mm width helps maximise wiring density on standard 35 mm DIN rails.
Double-deck terminal blocks place two electrically separate connection levels into a single narrow DIN rail position, allowing panel builders to increase wiring density without significantly increasing cabinet size. The through/through L/L arrangement of the WAGO 2000-2201 provides two independent feed-through circuits, each with two conductor connection points.
Push-in CAGE CLAMP® technology further simplifies panel assembly by allowing suitable solid and ferruled conductors to be inserted directly. Spring-pressure termination maintains consistent contact force, helping provide dependable electrical connections in industrial machinery, automation equipment and control cabinets.
Tick the specs you need, then view products that match.
| Voltage | 500 V | |
|---|---|---|
| Current | 13.5 A | |
| Number of Connection Points | 2 | |
| Product Series | WAGO TOPJOB S | |
| Connection | Push-in | |
| Terminal Type | Multi-level | |
| Conductor Size | 1 mm² | |
| Number of Levels | 2 | |
| Colour | Grey | |
| HS Code | 85369010 | |
| Country of Manufacture | China | |
| Manufacturer | WAGO | |
| Series | TOPJOB® S 2000 Series | |
| Model | 2000-2201 | |
| Product type | Double-deck through/through terminal block | |
| Terminal configuration | L/L | |
| Connection technology | Push-in CAGE CLAMP® | |
| Nominal cross-section | 1 mm² | |
| Solid conductor range | 0.14–1.5 mm² | |
| Solid conductor direct push-in range | 0.5–1.5 mm² | |
| Fine-stranded conductor range | 0.14–1.5 mm² | |
| Fine-stranded conductor with ferrule | 0.5–1.5 mm² | |
| Strip length | 9–11 mm | |
| Number of levels | 2 | |
| Connection points per level | 2 | |
| Total connection points | 4 | |
| Number of potentials | 2 | |
| Levels internally connected | No | |
| Rated current | 13.5 A | |
| Rated voltage | 500 V | |
| Rated impulse voltage | 6 kV | |
| Overvoltage category | III | |
| Pollution degree | 3 | |
| Width | 3.5 mm | |
| Height at lowest mounting position | 51.7 mm | |
| Length | 69.7 mm | |
| Mounting | DIN rail 35 × 15 / 35 × 7.5 mm | |
| Colour | Grey | |
| Insulation material | Polyamide | |
| Flammability classification | UL 94 V-0 | |
| Operating temperature | -60 to 105 °C | |
| Weight | approx. 7.3 g | |
| End plate required | Yes |
The WAGO 2000-2201 is a double-deck through/through terminal block used to connect two separate electrical potentials within compact industrial DIN rail wiring assemblies.
It uses Push-in CAGE CLAMP® spring-pressure connection technology, allowing suitable solid and ferruled conductors to be inserted directly without tools.
The terminal block provides four connection points across two levels, with two connection points on each electrically separate level.
The terminal block has a rated current of 13.5 A and a rated voltage of 500 V.
The terminal supports solid and fine-stranded conductors from 0.14–1.5 mm², with supported solid conductors from 0.5–1.5 mm² suitable for direct push-in termination.
WAGO TOPJOB® S terminal blocks combine compact dimensions with spring-pressure connection technology to provide reliable, space-efficient wiring solutions for industrial automation, machinery and electrical control panels.
