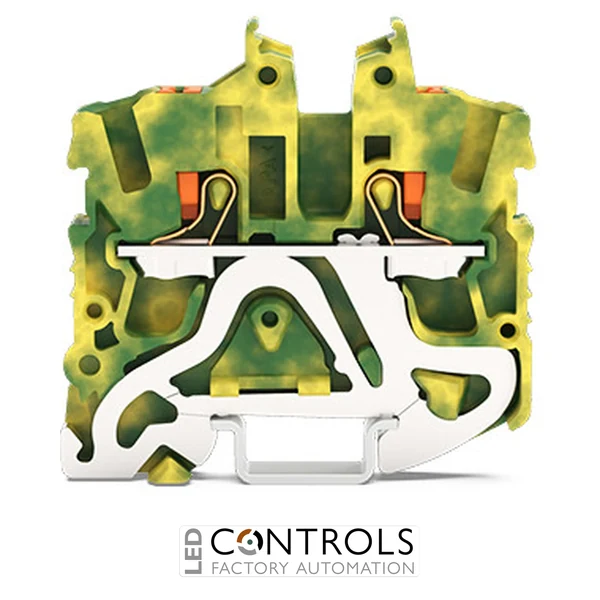

WAGO 2252-1207 TOPJOB S 2.5 mm² two-conductor miniature protective earth terminal block with push-button Push-in CAGE CLAMP connection technology for compact 15 mm DIN-rail installations.
£1.85
The WAGO 2252-1207 is a compact 2-conductor miniature protective earth terminal block designed for reliable grounding connections in space-constrained electrical and industrial control applications. Part of the WAGO TOPJOB® S 2252 series, it combines a nominal cross-section of 2.5 mm² with convenient push-button operation and proven Push-in CAGE CLAMP® connection technology.
Designed specifically for 15 mm DIN rail mounting, the 2252-1207 provides two connection points and one potential in an exceptionally compact format. Its spring-pressure connection system accommodates solid and fine-stranded conductors while providing a secure, maintenance-friendly termination without conventional screw connections.
The terminal block features the internationally recognised green-yellow protective earth colour, front-entry wiring and both side and centre marking positions. With a width of only 5.2 mm, it is particularly well suited to compact control equipment, junction assemblies and other installations where DIN-rail space is limited.
Protective earth terminal blocks provide an organised connection point for grounding conductors and help establish the protective bonding required within electrical equipment. The WAGO 2252-1207 combines this essential function with a miniature form factor, making it particularly useful where conventional terminal blocks would occupy excessive rail space.
Push-in CAGE CLAMP® technology maintains spring pressure on the conductor without requiring screw tightening, helping provide a durable connection while simplifying installation and servicing. The integrated push-buttons make conductor operation straightforward, while the green-yellow housing enables immediate visual identification of the protective earth connection.
Tick the specs you need, then view products that match.
| Product Series | WAGO TOPJOB S | |
|---|---|---|
| Terminal Type | Earth (PE) | |
| Colour | Green/Yellow | |
| HS Code | 85369010 | |
| Country of Manufacture | India | |
| Manufacturer | WAGO | |
| Series | TOPJOB® S 2252 | |
| Model | 2252-1207 | |
| Product type | 2-conductor miniature protective earth terminal block | |
| Terminal type | Earth / protective earth | |
| Connection technology | Push-in CAGE CLAMP® | |
| Actuation | Push-button | |
| Nominal cross-section | 2.5 mm² | |
| Solid conductor | 0.25–4 mm² | |
| Solid conductor, direct push-in | 0.75–4 mm² | |
| Fine-stranded conductor | 0.25–4 mm² | |
| Fine-stranded conductor with ferrule | 0.75–4 mm² | |
| Conductor range | AWG 22–12 | |
| Number of connection points | 2 | |
| Number of potentials | 1 | |
| Wiring direction | Front-entry | |
| Strip length | 10–12 mm | |
| Mounting method | 15 mm top-hat DIN rail | |
| Width | 5.2 mm | |
| Height | 36.5 mm | |
| Depth | 30.8 mm | |
| Weight | approx. 7.16 g | |
| Insulation material | Polyamide | |
| Flammability class | UL 94 V-0 | |
| Colour | Green-yellow |
The WAGO 2252-1207 is a protective earth terminal block used to terminate grounding and bonding conductors in compact electrical equipment, control panels and automation systems.
The terminal block has a nominal cross-section of 2.5 mm² and accommodates conductors up to 4 mm², depending on the conductor and termination type.
It uses WAGO Push-in CAGE CLAMP® spring-pressure connection technology together with push-button actuation for convenient conductor insertion and removal.
The 2252-1207 is a miniature terminal block designed for mounting on a 15 mm top-hat DIN rail, making it suitable for particularly compact electrical assemblies.
The WAGO 2252-1207 provides two connection points and one potential for protective earth conductor termination.
WAGO TOPJOB® S terminal blocks are widely used by panel builders, machine manufacturers and electrical professionals for reliable, space-efficient and maintenance-friendly conductor connections in modern electrical systems.
