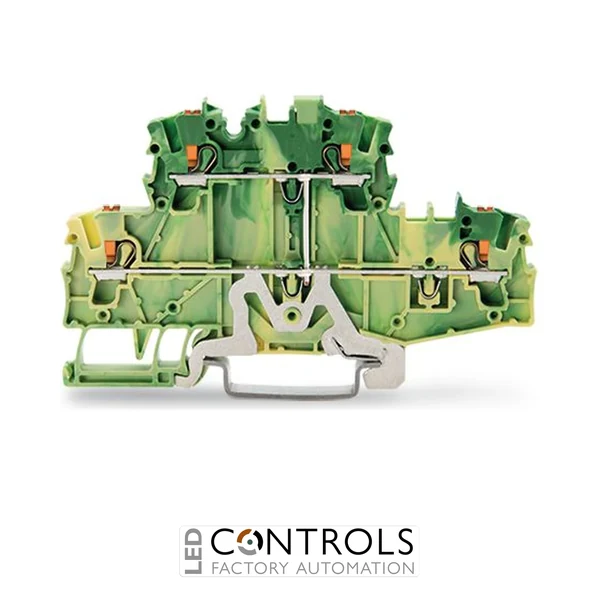

WAGO 2202-2707 is a green-yellow TOPJOB S 2.5 mm² 4-conductor double-deck protective earth terminal block with internal commoning, push-button operation and Push-in CAGE CLAMP technology.
£3.09
The WAGO 2202-2707 is a compact 4-conductor double-deck protective earth terminal block designed for reliable grounding connections in industrial control cabinets, machinery and electrical distribution systems. Part of the WAGO TOPJOB® S 2202 Series, it combines a 2.5 mm² nominal cross-section with Push-in CAGE CLAMP® technology and push-button actuation for fast, secure and maintenance-friendly conductor termination.
Unlike a conventional double-deck through terminal, the 2202-2707 is specifically designed as a PE protective earth terminal. Its four conductor connection points are internally commoned to a single protective earth potential across two levels, providing a space-saving way to connect multiple protective conductors to the DIN-rail grounding system. The green-yellow housing provides immediate visual identification of its protective earth function.
The WAGO 2202-2707 accepts solid and fine-stranded copper conductors from 0.25 to 4 mm² and supports direct push-in termination for suitable conductors. At only 5.2 mm wide, the two-level design provides four PE connection points while conserving valuable DIN-rail space. It is suitable for DIN-35 × 15 and DIN-35 × 7.5 mm rails, including specified Ex e II applications, and is supplied in a pack of 50.
Double-deck protective earth terminals are particularly useful where multiple PE conductors must be terminated in a limited amount of DIN-rail space. The WAGO 2202-2707 provides four conductor connection points across two levels, with all positions internally commoned to a single protective earth potential. This allows several protective conductors to be grouped efficiently without requiring separate single-level terminals.
Push-in CAGE CLAMP® technology uses spring pressure to maintain reliable conductor contact without conventional screw clamping. Suitable solid and ferruled conductors can be inserted directly, while the integrated push-buttons provide convenient operation when terminating other conductor types or removing existing wiring. The result is a compact, clearly identifiable and maintainable grounding solution for professional electrical installations.
Tick the specs you need, then view products that match.
| Number of Connection Points | 4 | |
|---|---|---|
| Connection | Push-in | |
| Terminal Type | End plate / End stop (accessory) | |
| Conductor Size | 2.5 mm² | |
| Number of Levels | 2 | |
| Product Series | WAGO TOPJOB S | |
| Colour | Green/Yellow | |
| HS Code | 85369010 | |
| Country of Manufacture | Germany | |
| Manufacturer | WAGO | |
| Series | TOPJOB® S 2202 | |
| Model | 2202-2707 | |
| Manufacturer part number | 2202-2707 | |
| Product type | Double-deck terminal block | |
| Terminal function | Protective earth / ground | |
| Potential marking | PE | |
| Number of levels | 2 | |
| Connection points | 4 | |
| Total number of potentials | 1 | |
| Internal commoning | Yes | |
| Number of jumper slots | 3 | |
| Number of jumper slots (rank) | 2 | |
| Nominal cross-section | 2.5 mm² | |
| Connection technology | Push-in CAGE CLAMP® | |
| Actuation type | Push-button | |
| Connectable conductor material | Copper | |
| Solid conductor range | 0.25–4 mm² | |
| Solid conductor direct push-in range | 0.75–4 mm² | |
| Fine-stranded conductor range | 0.25–4 mm² | |
| Fine-stranded conductor with insulated ferrule | 0.25–2.5 mm² | |
| Fine-stranded conductor with ferrule, direct push-in | 1–2.5 mm² | |
| Conductor range | 22–12 AWG | |
| Strip length | 10–12 mm | |
| Wiring direction | Front-entry wiring | |
| Current for specified power loss | 24 A | |
| Power loss per potential | 0.7661 W | |
| Resistance at specified current | 0.00133 Ω | |
| Colour | Green-yellow | |
| Actuator colour | Orange | |
| Insulating material | Polyamide 66 (PA66) | |
| Material group | I | |
| Flammability class | UL 94 V0 | |
| Width | 5.2 mm | |
| Height | 92.5 mm | |
| Depth from upper edge of DIN rail | 51.7 mm | |
| Mounting type | DIN-35 rail | |
| Compatible DIN rails | 35 × 15 mm and 35 × 7.5 mm | |
| Marking level | Centre and side marking | |
| Marker carrier | Without marker carrier | |
| Weight | approx. 16 g | |
| Fire load | 0.04 MJ | |
| Processing temperature | -35 to +85 °C | |
| Continuous operating temperature | -60 to +105 °C | |
| Hazardous-area suitability | Suitable for specified Ex e II applications | |
| Pack quantity | 50 pieces | |
| Packaging type | Box | |
| Country of origin | Germany | |
| GTIN | 4055143844482 | |
| Customs tariff number | 85369010000 | |
| RoHS status | Compliant, no exemption |
The WAGO 2202-2707 is a 4-conductor double-deck protective earth terminal block used to connect multiple protective conductors to a common PE potential in industrial control panels, machinery and electrical distribution systems.
The terminal provides four conductor connection points across two levels. All four positions are internally commoned to a single protective earth potential.
The terminal has a nominal cross-section of 2.5 mm² and accepts solid and fine-stranded copper conductors from 0.25 to 4 mm², depending on conductor construction and termination method.
The WAGO 2202-2707 uses Push-in CAGE CLAMP® spring-pressure technology with push-button actuation. Suitable solid and ferruled conductors can also be inserted directly using push-in termination.
No. The 2202-2707 is specifically a 4-conductor protective earth terminal block. Its two levels are internally commoned to one PE potential, unlike a through/through double-deck terminal that provides separate electrical potentials.
WAGO TOPJOB® S protective earth terminal blocks combine space-saving multi-level construction, Push-in CAGE CLAMP® spring-pressure technology and clear green-yellow identification to provide dependable grounding connections for industrial automation, machinery and electrical distribution systems.
