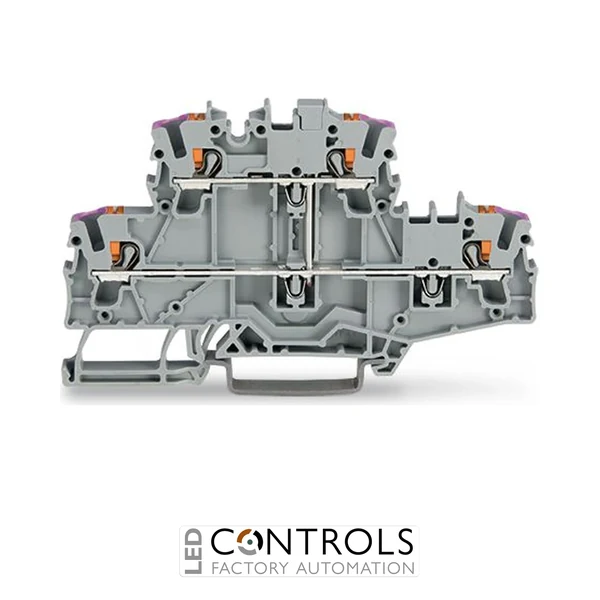

WAGO 2202-2708 is a grey TOPJOB S double-deck 4-conductor through terminal block with a 2.5 mm² nominal cross-section, push-button actuation, Push-in CAGE CLAMP connection technology and internal commoning for compact DIN-rail wiring.
£1.71
The WAGO 2202-2708 is a compact double-deck terminal block with push-buttons designed for efficient conductor connection and potential distribution in industrial control panels, machinery and electrical installations. Part of the WAGO TOPJOB® S 2202 Series, it combines space-saving two-level construction with proven Push-in CAGE CLAMP® connection technology.
This grey terminal block is configured as a 4-conductor through terminal block with internal commoning and a nominal conductor cross-section of 2.5 mm². The integrated push-buttons provide convenient operation of the spring connection, while the violet-marked conductor entry helps identify the relevant connection position during installation and maintenance.
Designed for mounting on standard 35 × 15 mm and 35 × 7.5 mm DIN rails, the 2202-2708 provides a practical solution where high wiring density is required. It is also specified by WAGO as suitable for Ex e II applications, supporting use in appropriately designed hazardous-area electrical installations.
Double-deck terminal blocks provide two wiring levels within a compact DIN-rail footprint, helping panel builders increase connection density without significantly increasing cabinet size. This makes the WAGO 2202-2708 particularly useful where numerous field and control conductors must be organised within limited installation space.
The combination of Push-in CAGE CLAMP® technology and push-button operation supports fast installation while maintaining reliable spring-pressure conductor connections. Internal commoning further simplifies circuit distribution by electrically linking the appropriate terminal points without requiring additional external wiring.
Tick the specs you need, then view products that match.
| Voltage | 800 V | |
|---|---|---|
| Current | 24 A | |
| Number of Connection Points | 4 | |
| Number of Levels | 2 | |
| Connection | Push-in | |
| Terminal Type | End plate / End stop (accessory) | |
| Conductor Size | 2.5 mm² | |
| Product Series | WAGO TOPJOB S | |
| Colour | Grey | |
| HS Code | 85369010 | |
| Country of Manufacture | Germany | |
| Manufacturer | WAGO | |
| Series | TOPJOB® S 2202 | |
| Model | 2202-2708 | |
| Product type | Double-deck terminal block | |
| Terminal function | 4-conductor through terminal block | |
| Terminal type | Double deck / through | |
| Connection technology | Push-in CAGE CLAMP® | |
| Actuation type | Push-button | |
| Nominal cross-section | 2.5 mm² | |
| Internal connection | Internally commoned | |
| Designation | L | |
| Conductor-entry marking | Violet | |
| Colour | Grey | |
| Marker carrier | Without marker carrier | |
| Mounting type | DIN rail | |
| Compatible DIN rails | 35 × 15 mm and 35 × 7.5 mm | |
| Hazardous-area suitability | Ex e II applications | |
| Pack quantity | 50 |
The WAGO 2202-2708 is a double-deck 4-conductor through terminal block used for high-density conductor connection and distribution in industrial control panels, machinery and electrical installations.
The terminal block has a nominal conductor cross-section of 2.5 mm².
The 2202-2708 uses WAGO Push-in CAGE CLAMP® connection technology with integrated push-button actuation.
Yes. The terminal block is internally commoned, providing an integrated electrical connection between the designated terminal points.
The terminal block is designed for 35 × 15 mm and 35 × 7.5 mm DIN rails.
WAGO TOPJOB® S double-deck terminal blocks provide compact, dependable and service-friendly connection solutions for industrial control cabinets, machinery and high-density electrical installations.
