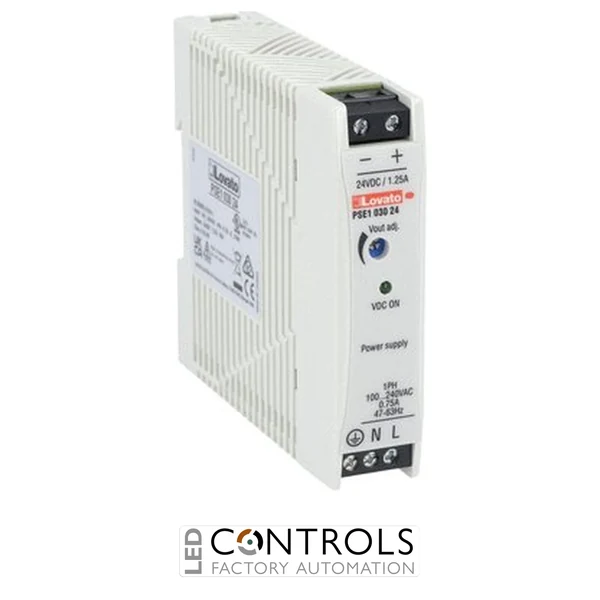

Lovato PSE103024 is a compact single-phase DIN rail switching power supply with 100–240 V AC input and a regulated 24 V DC, 1.25 A, 30 W output for industrial automation and control applications.
£41.53
The Lovato PSE103024 is a compact single-phase DIN rail switching power supply designed to provide a stable 24 V DC supply for industrial automation, machinery and electrical control systems. Part of the Lovato PSE1 compact power supply range, it accepts a wide 100–240 V AC input and delivers up to 1.25 A at 30 W.
Its wide input operating range of 85–264 V AC also supports 120–375 V DC input, making the PSE103024 suitable for installations with varying supply conditions. The output can be adjusted from 22.5–28.5 V DC using the integrated potentiometer, allowing the voltage to be fine-tuned for connected control equipment.
At only 22.5 mm wide, the PSE103024 helps conserve valuable DIN rail space while providing short-circuit, overload and overvoltage protection. Free-air convection cooling, an integrated power-on LED and up to 86% efficiency make it a practical power source for PLCs, relays, sensors and other 24 V DC automation devices.
DIN rail switching power supplies such as the Lovato PSE103024 convert incoming mains power into a regulated low-voltage DC supply for automation equipment. Its 24 V DC output is suitable for powering PLCs, relays, sensors, control modules, operator interfaces and other low-voltage devices commonly used in industrial electrical panels.
The wide 100–240 V AC input range, adjustable DC output and integrated protection functions help the PSE103024 maintain dependable operation across a variety of supply and load conditions. Its slim 22.5 mm housing and convection cooling are particularly beneficial where control-panel space is limited and maintenance-free operation is preferred.
Tick the specs you need, then view products that match.
| Phase | Single Phase | |
|---|---|---|
| Mounting Type | DIN rail | |
| Device Type | DIN rail PSU | |
| Current | 1.25 A | |
| Output Voltage | 24 V DC | |
| Output Power (W) | 30 W | |
| Mounting | DIN rail | |
| Manufacturer | Lovato Electric | |
| Series | PSE1 | |
| Model | PSE103024 | |
| Product type | Compact DIN rail switching power supply | |
| Input type | Single-phase | |
| Rated supply voltage | 100–240 V AC | |
| AC operating range | 85–264 V AC | |
| DC input operating range | 120–375 V DC | |
| Rated frequency | 50/60 Hz | |
| Operational frequency range | 47–63 Hz | |
| Maximum input current | 750 mA | |
| Power dissipation | 5.7 W | |
| Input/output insulation voltage | 3000 V AC / 4242 V DC | |
| Internal fuse | T2A, 250 V AC | |
| Rated output voltage | 24 V DC | |
| Output adjustment range | 22.5–28.5 V DC | |
| Rated output current | 1.25 A | |
| Rated output power | 30 W | |
| Efficiency | Up to 86% | |
| Line regulation | ±1% | |
| Load regulation | ±1% | |
| Temperature coefficient | ±0.03%/°C | |
| Overload protection | 140% | |
| Overvoltage protection | 28.8–32.4 V | |
| Short-circuit protection | Hiccup mode | |
| Ripple and noise | 100 mV | |
| Parallel connection | No | |
| Power-on LED | Yes | |
| Terminal type | Screw | |
| Maximum terminal tightening torque | 0.5 Nm | |
| IEC conductor cross-section | 0.2–2.5 mm² | |
| Conductor range | AWG 26–12 | |
| Cable stripping length | 4–5 mm | |
| Operating temperature | -25 to +71 °C | |
| Storage temperature | -40 to +85 °C | |
| Output derating | 2.5%/°C above 50 °C | |
| Relative humidity | <95% | |
| Maximum altitude | 5000 m | |
| Maximum pollution degree | 2 | |
| Housing material | Plastic | |
| Protection rating | IP20 | |
| Dimensions | 22.5 × 90 × 100 mm | |
| Mounting | 35 mm DIN rail | |
| Installation position | Vertical, with other orientations subject to derating | |
| Cooling | Free-air convection | |
| Weight | 140 g | |
| ETIM 8.0 classification | EC002540 - DC power supply | |
| Compliance | IEC/EN/BS 62368-1, IEC/EN/BS 61000-6-2, IEC/EN/BS 61000-6-3, UL 508, CSA C22.2 No. 107.1 | |
| Certifications | cULus, EAC, RCM | |
| EAN13 | 8013975268391 | |
| HS code | 8504318090 |
The PSE103024 provides a rated output of 24 V DC at 1.25 A, delivering up to 30 W of power.
The Lovato PSE103024 has a rated multivoltage input of 100–240 V AC, with an operating range of 85–264 V AC. It can also operate from 120–375 V DC.
Yes. The output can be adjusted using the built-in potentiometer from 22.5–28.5 V DC.
The PSE103024 includes overload, overvoltage and hiccup-mode short-circuit protection, along with an internal T2A 250 V AC fuse.
The PSE103024 mounts vertically on a standard 35 mm DIN rail and uses screw terminals for electrical connections.
Lovato Electric PSE1 switching power supplies provide compact and dependable DC power for industrial automation, machinery, building controls and professional OEM electrical systems.
