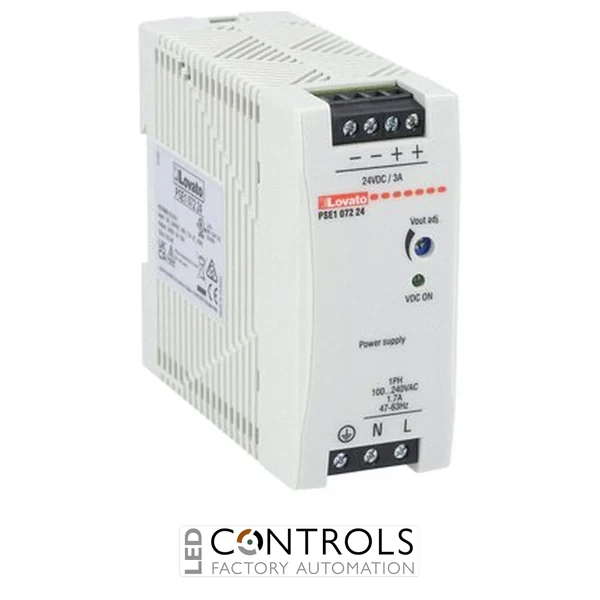

Lovato PSE107224 is a compact 72 W single-phase DIN rail switching power supply with a 100–240 V AC input and regulated 24 V DC, 3 A output for industrial automation and control systems.
£64.63
The Lovato PSE107224 is a compact single-phase DIN rail switching power supply designed to provide stable 24 V DC power for industrial automation, machine control and electrical panel applications. As part of the Lovato PSE1 compact power supply series, it combines a wide input range with regulated DC output and convenient DIN rail installation.
With a rated output power of 72 W, a rated output current of 3 A and a nominal output voltage of 24 V DC, the PSE107224 is suitable for powering PLCs, relays, sensors, control electronics and other industrial devices. Its 100–240 V AC single-phase input accommodates common industrial mains supplies, while the output can be adjusted between 22.5–28.5 V DC using the integrated potentiometer.
The PSE107224 offers efficiency of up to 89% and incorporates overload and short-circuit protection for dependable operation. Its compact housing mounts directly onto a standard 35 mm DIN rail, making it a practical choice where panel space, reliable DC power and straightforward installation are important.
Switching power supplies such as the Lovato PSE107224 convert incoming mains power into a stable low-voltage DC supply for industrial control equipment. Its regulated 24 V DC, 3 A output provides up to 72 W for devices such as PLCs, interface relays, sensors, instrumentation and control electronics.
The PSE1 series is designed for compact installation inside industrial electrical panels. Wide-range input capability, adjustable output voltage, electronic protection and natural convection cooling make the PSE107224 a versatile power source for machine builders, panel builders and industrial automation systems.
Tick the specs you need, then view products that match.
| Phase | Single Phase | |
|---|---|---|
| Mounting Type | DIN rail | |
| Current | 3 A | |
| Device Type | DIN rail PSU | |
| Output Voltage | 24 V DC | |
| Output Power (W) | 72 W | |
| Mounting | DIN rail | |
| HS Code | 8504318090 | |
| Manufacturer | Lovato Electric | |
| Series | PSE1 | |
| Model | PSE107224 | |
| Product type | Compact DIN rail switching power supply | |
| Rated output power | 72 W | |
| Rated output voltage | 24 V DC | |
| Rated output current | 3 A | |
| Output voltage adjustment | 22.5–28.5 V DC | |
| Input type | Single-phase | |
| Rated AC supply voltage | 100–240 V AC | |
| AC operating range | 85–264 V AC | |
| DC operating range | 120–375 V DC | |
| Rated frequency | 50 / 60 Hz | |
| Operating frequency range | 47–63 Hz | |
| Maximum input current consumption | 1.7 A | |
| Power dissipation | 10.5 W | |
| Efficiency | Up to 89% | |
| Line regulation | ±1% | |
| Load regulation | ±1% | |
| Temperature coefficient | ±0.03%/°C | |
| Overload protection | 140% | |
| Short-circuit protection | Hiccup mode | |
| Input/output insulation voltage | 3000 V AC / 4242 V DC | |
| Internal fuse | T3.15 A, 250 V AC | |
| Cooling | Free-air convection | |
| Installation position | Vertical; other orientations with derating | |
| Mounting type | 35 mm DIN rail | |
| Protection rating | IP20 | |
| Operating temperature | -25 to +71 °C | |
| Storage temperature | -40 to +85 °C | |
| Weight | 307.4 g |
The PSE107224 is a DIN rail switching power supply designed to provide regulated 24 V DC power for industrial automation, machine control and electrical panel equipment.
The Lovato PSE107224 has a rated output power of 72 W with a rated output current of 3 A.
The power supply provides a nominal 24 V DC output, which can be adjusted between 22.5–28.5 V DC using the integrated potentiometer.
The PSE107224 has a rated 100–240 V AC single-phase input and an AC operating range of 85–264 V AC. It can also operate from 120–375 V DC.
Yes. The PSE107224 incorporates 140% overload protection and hiccup-mode short-circuit protection to help protect the power supply and connected equipment.
The PSE107224 is designed for installation on a standard 35 mm DIN rail, normally in the vertical position inside an electrical control panel.
Lovato Electric PSE1 compact switching power supplies provide dependable low-voltage DC power for machine builders, panel builders and automation engineers, combining wide-range input capability, regulated output, electronic protection and space-efficient DIN rail installation.
