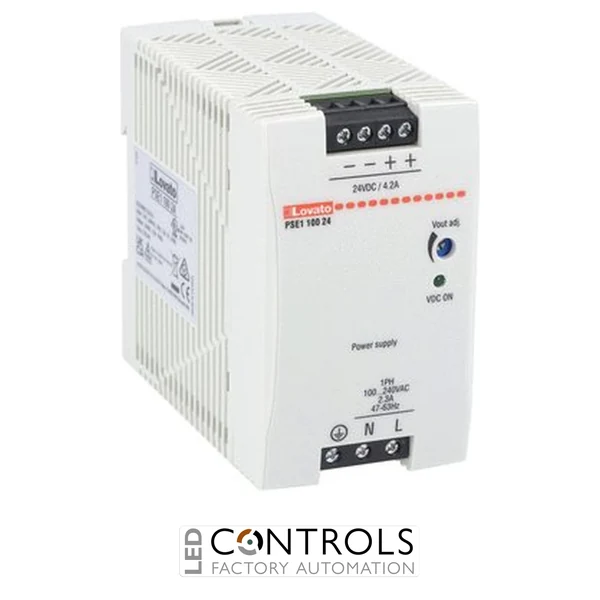

Lovato PSE110024 is a compact single-phase DIN rail switching power supply with a 100–240 V AC input and regulated 24 V DC, 4.2 A, 100 W output for industrial automation and control applications.
£78.49
The Lovato PSE110024 is a compact single-phase DIN rail switching power supply designed to provide a stable 24 V DC output for industrial automation and control equipment. With a rated output of 4.2 A / 100 W and a wide 100–240 V AC multivoltage input, it is suitable for a broad range of control-panel installations.
Part of the Lovato PSE1 series, the PSE110024 provides an adjustable DC output from 22.5 to 28.5 V DC via an onboard potentiometer. It offers 88% efficiency and incorporates overload, overvoltage and hiccup-mode short-circuit protection to help protect both the power supply and connected equipment.
The compact 54 × 90 × 100 mm enclosure mounts directly on a standard 35 mm DIN rail and uses natural free-air convection cooling. A power-on LED provides clear operating indication, while screw terminals provide secure connections for industrial panel wiring.
The Lovato PSE110024 is designed to deliver regulated 24 V DC power for industrial control circuits while accommodating a broad mains input range. Its adjustable output allows the voltage to be fine-tuned between 22.5 and 28.5 V DC where compensation for wiring losses or application requirements is necessary.
Integrated overload, overvoltage and hiccup-mode short-circuit protection contribute to dependable operation, while free-air convection eliminates the need for a cooling fan. The compact 54 mm-wide enclosure makes the PSE110024 particularly useful where DIN rail space is limited.
Tick the specs you need, then view products that match.
| Phase | Single Phase | |
|---|---|---|
| Mounting Type | DIN rail | |
| Device Type | DIN rail PSU | |
| Current | 4.2 A | |
| Output Voltage | 24 V DC | |
| Output Power (W) | 100 W | |
| Mounting | DIN rail | |
| HS Code | 8504318090 | |
| Manufacturer | Lovato Electric | |
| Series | PSE1 | |
| Model | PSE110024 | |
| Product type | Compact DIN rail switching power supply | |
| Input type | Single-phase | |
| Rated AC supply voltage | 100–240 V AC | |
| AC operating range | 85–264 V AC | |
| DC input operating range | 120–375 V DC | |
| Rated frequency | 50/60 Hz | |
| Operational frequency range | 47–63 Hz | |
| Maximum current consumption | 2300 mA | |
| Power dissipation | 17 W | |
| Input/output insulation voltage | 3000 V AC | |
| Internal fuse | T3.15A 250 V AC | |
| Rated output voltage | 24 V DC | |
| Output voltage adjustment | 22.5–28.5 V DC | |
| Rated output current | 4.2 A | |
| Rated output power | 100 W | |
| Efficiency | 88% | |
| Line regulation | ±1% | |
| Load regulation | ±1% | |
| Ripple and noise | 100 mV | |
| Overvoltage protection | 28.8–32.4 V | |
| Short-circuit protection | Hiccup mode | |
| Parallel connection | No | |
| Power-on LED | Yes | |
| Terminal type | Screw | |
| IEC conductor cross-section | 0.2–2.5 mm² | |
| Maximum terminal tightening torque | 0.5 Nm | |
| Operating temperature | −25 to +71 °C | |
| Derating | 2.5%/°C above 45 °C | |
| Storage temperature | −40 to +85 °C | |
| Relative humidity | <95% | |
| Maximum pollution degree | 2 | |
| Maximum altitude | 5000 m | |
| Degree of protection | IP20 | |
| Housing material | Plastic | |
| Dimensions (W × H × D) | 54 × 90 × 100 mm | |
| Mounting | 35 mm DIN rail | |
| Installation position | Vertical; other orientations require derating | |
| Cooling | Free-air convection | |
| Product weight | 350 g | |
| EAN | 8013975268421 | |
| ETIM classification | EC002540 – DC power supply | |
| Conformity | IEC/EN/BS 62368-1, IEC/EN/BS 61000-6-2, IEC/EN/BS 61000-6-3, UL 508 and CSA C22.2 No. 107.1 |
The PSE110024 provides a rated output of 24 V DC at 4.2 A, giving a total rated output power of 100 W.
It has a 100–240 V AC multivoltage single-phase input, with an AC operating range of 85–264 V. It can also operate from 120–375 V DC.
Yes. An integrated potentiometer allows the DC output to be adjusted from 22.5 to 28.5 V DC.
Yes. The PSE110024 incorporates hiccup-mode short-circuit protection together with overload and overvoltage protection.
The power supply mounts on a standard 35 mm DIN rail. Lovato specifies vertical installation for normal operation, with derating required for other installation orientations.
Lovato Electric PSE1 switching power supplies combine compact DIN rail construction, wide-range input capability and regulated DC output with integrated electrical protection, providing dependable power for industrial automation and control equipment.
