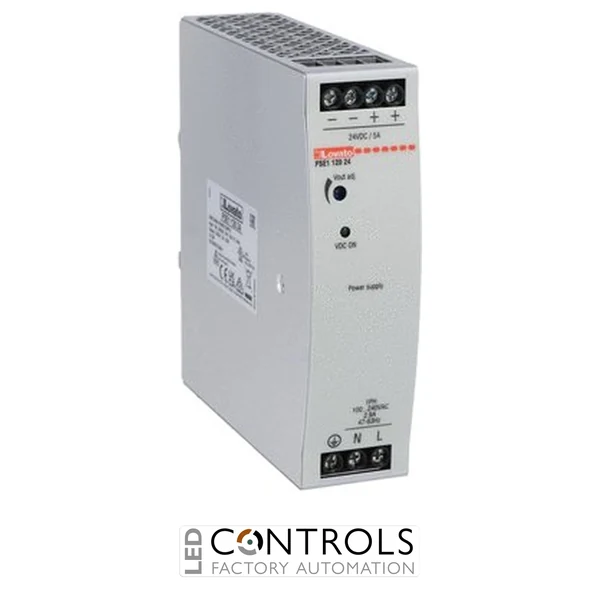

Lovato PSE112024 is a compact single-phase DIN rail switching power supply providing 24 V DC at 5 A and 120 W from a 100–240 V AC input for industrial automation and control applications.
£95.21
The Lovato PSE112024 is a compact and reliable single-phase DIN rail switching power supply designed to provide stable 24 V DC power for industrial automation, control and electrical panel applications. As part of the Lovato PSE1 compact power supply series, it combines high output capacity with a space-saving metal enclosure suitable for modern control cabinets.
This power supply delivers a rated output of 120 W at 24 V DC and 5 A from a wide-range 100–240 V AC single-phase input. Its adjustable output voltage allows the DC supply to be trimmed between approximately 22.5–28.5 V DC, providing flexibility for industrial control circuits and connected automation equipment.
Designed for installation on a standard 35 mm DIN rail, the PSE112024 uses free-air convection cooling and incorporates overload and overvoltage protection. Its compact dimensions and high efficiency make it well suited to PLC systems, relays, sensors, control equipment and other 24 V DC industrial loads.
Industrial automation equipment depends on a stable DC supply for dependable operation. The Lovato PSE112024 converts single-phase AC mains power into regulated 24 V DC, making it suitable for powering PLCs, sensors, relays, contactor coils, interfaces and other control-system components.
The PSE1 series combines compact DIN rail construction with protection against overload and excessive output voltage. Its fanless convection cooling and robust metal enclosure help provide reliable service in industrial electrical panels while reducing maintenance requirements.
Tick the specs you need, then view products that match.
| Mounting Type | DIN rail | |
|---|---|---|
| Device Type | DIN rail PSU | |
| Current | 5 A | |
| Output Voltage | 24 V DC | |
| Output Power (W) | 120 W | |
| Mounting | DIN rail | |
| Phase | Single Phase | |
| HS Code | 8504318090 | |
| Manufacturer | Lovato Electric | |
| Series | PSE1 | |
| Model | PSE112024 | |
| Product type | Compact switching power supply | |
| Input type | Single-phase | |
| Rated input voltage | 100–240 V AC | |
| AC operating range | 85–264 V AC | |
| Rated frequency | 50 / 60 Hz | |
| Rated output voltage | 24 V DC | |
| Output voltage adjustment | 22.5–28.5 V DC | |
| Rated output current | 5 A | |
| Rated output power | 120 W | |
| Efficiency | 89% | |
| Protection rating | IP20 | |
| Enclosure material | Metal | |
| Mounting type | 35 mm DIN rail | |
| Cooling | Free-air convection | |
| Installation position | Vertical, with derating required for alternative orientations | |
| Dimensions (W × H × D) | 34.2 × 124.5 × 116.6 mm |
The PSE112024 converts single-phase AC mains power into a regulated 24 V DC supply for industrial automation, machine control and electrical panel equipment.
The power supply provides a rated output of 24 V DC at 5 A, corresponding to a maximum rated output power of 120 W.
The unit is rated for a 100–240 V AC single-phase supply and supports a wide AC operating range for industrial installations.
Yes. The DC output can be adjusted using the built-in potentiometer over a range of approximately 22.5–28.5 V DC.
The power supply is designed for mounting on a standard 35 mm DIN rail inside an electrical enclosure or industrial control cabinet.
Lovato Electric PSE1 switching power supplies provide compact and dependable DC power conversion for industrial automation, machinery and control-panel applications where reliable 24 V DC power is required.
