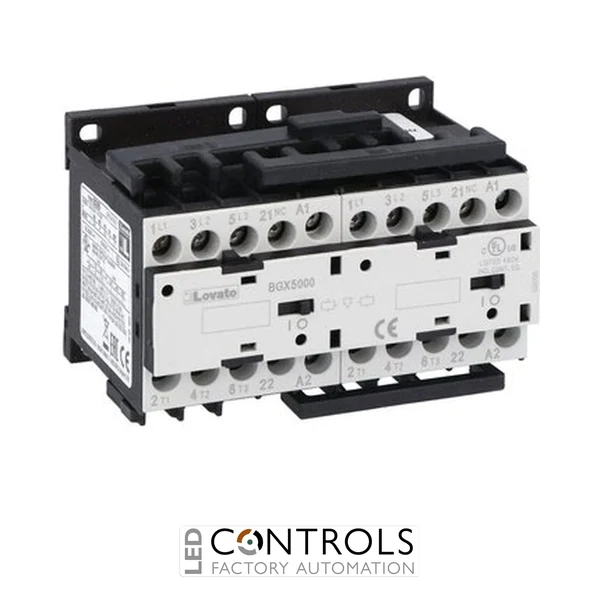

Lovato 11BGR0901A04860 is a factory-assembled BGR09 reversing contactor rated at 9 A AC-3 and 4 kW at 400 V with a 48 V AC 60 Hz coil, external mechanical interlock, power and auxiliary wiring, and one built-in NC auxiliary contact.
£141.83
The Lovato 11BGR0901A04860 is a factory-assembled BGR09 reversing contactor designed for forward and reverse control of three-phase motors. It provides a rated operational current of 9 A AC-3 at voltages up to 440 V and uses a dedicated 48 V AC 60 Hz coil.
Supplied as an open-frame reversing contactor assembly, the 11BGR0901A04860 incorporates an external mechanical interlock together with the required power and auxiliary wiring. This factory-assembled arrangement simplifies integration into motor-control panels while mechanically preventing simultaneous operation of the opposing contactors.
The BGR09 assembly provides an AC-3 motor rating of 4 kW at 400 V, with ratings extending to 5 kW at 500 V and 690 V. A built-in 1NC auxiliary contact supports control and interlocking functions, making this compact Lovato assembly suitable for machinery, conveyors and other applications requiring dependable bidirectional motor control.
Reversing contactor assemblies change the phase sequence applied to a suitable three-phase motor, allowing the motor's direction of rotation to be switched between forward and reverse. The Lovato 11BGR0901A04860 provides this functionality in a coordinated factory-assembled package rather than requiring separate contactors, interlocking hardware and reversing connections to be assembled individually.
The integrated external mechanical interlock prevents the opposing contactors from closing simultaneously, while the factory-installed power and auxiliary wiring simplifies panel construction. With its 9 A AC-3 rating and dedicated 48 V AC 60 Hz control coil, the BGR09 is a practical solution for industrial machinery requiring repeatable bidirectional motor operation.
Tick the specs you need, then view products that match.
| Coil / Supply Voltage | 48 V AC | |
|---|---|---|
| Manufacturer | Lovato Electric | |
| Family | Electromechanical & Electronic Starters | |
| Product designation | Reversing contactor | |
| Product type designation | BGR09 | |
| Order code | 11BGR0901A04860 | |
| Construction | Open frame with external interlock, power wiring and auxiliary wiring | |
| Maximum operating current ≤440 V | 9 A | |
| Rated operational current AC-3 ≤440 V, ≤55 °C | 9 A | |
| Rated operational power AC-3 at 230 V | 2.2 kW | |
| Rated operational power AC-3 at 400 V | 4 kW | |
| Rated operational power AC-3 at 415 V | 4.3 kW | |
| Rated operational power AC-3 at 440 V | 4.5 kW | |
| Rated operational power AC-3 at 500 V | 5 kW | |
| Rated operational power AC-3 at 690 V | 5 kW | |
| Coil type | AC | |
| Coil voltage | 48 V AC | |
| Coil frequency | 60 Hz | |
| Built-in auxiliary contacts | 0NO + 1NC | |
| UL/CSA horsepower rating at 480 V | 5 HP | |
| Interlocking | External mechanical interlock | |
| Weight | 396 g | |
| Quantity per package | 1 | |
| EAN | 8013975083437 | |
| HS code | 85365080 |
The 11BGR0901A04860 is a reversing contactor assembly designed to provide forward and reverse control of suitable three-phase motors.
Lovato rates the assembly at 9 A AC-3 for operating voltages up to 440 V at the specified operating conditions.
The reversing contactor has a rated operational motor power of 4 kW at 400 V AC-3.
This exact version is equipped with an AC coil rated at 48 V AC, 60 Hz.
Yes. It is supplied as an open-frame assembly with an external mechanical interlock plus power and auxiliary wiring, and it incorporates one built-in NC auxiliary contact.
Lovato BGR reversing contactor assemblies provide machine builders, panel manufacturers and automation engineers with factory-coordinated solutions for dependable forward and reverse motor control in industrial equipment.
