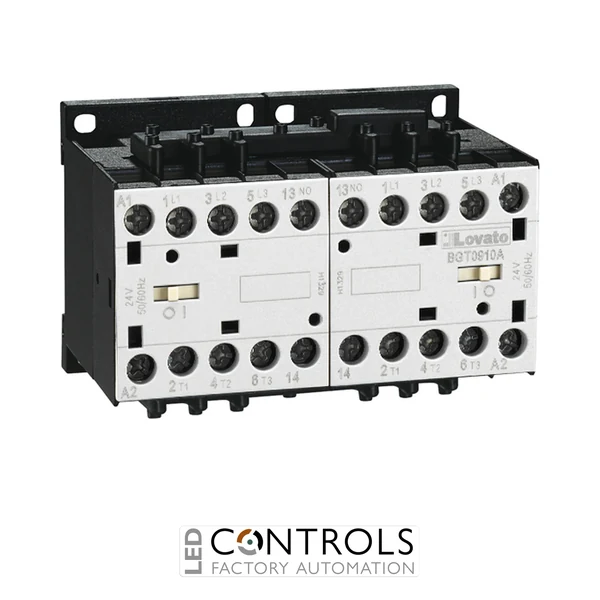

Lovato 11BGT1210A02460 is a BGT12 reversing contactor assembly rated at 12 A AC-3 with a 24 V AC 60 Hz control coil for forward and reverse control of three-phase motors.
£135.27
The Lovato 11BGT1210A02460 is a compact BGT12 reversing contactor assembly designed for controlling the forward and reverse operation of three-phase motors. Part of Lovato Electric's electromechanical motor-control range, it combines two mechanically interlocked contactors in a factory-coordinated reversing configuration.
The BGT12 platform is designed for compact motor-control applications and provides a practical solution where motor direction must be changed by reversing two phases of the supply. The assembly uses three-pole contactors with a 12 A AC-3 operational current rating, making it suitable for appropriately rated three-phase motor loads.
This version features a 24 V AC, 60 Hz control coil. Its integrated reversing arrangement reduces the amount of assembly work required compared with constructing a reversing starter from separate contactors and interlocking components, making it well suited to machinery, conveyors and automated equipment.
A reversing contactor assembly changes the direction of a three-phase motor by changing the phase sequence supplied to the motor. The Lovato 11BGT1210A02460 provides the two coordinated switching contactors required for forward and reverse operation, while mechanical interlocking helps ensure that opposing contactors cannot be closed simultaneously.
This integrated configuration simplifies the construction of bidirectional motor-control circuits and reduces the need to select and assemble separate mechanical interlocking components. When combined with suitable overload and short-circuit protection, the BGT12 reversing contactor can form part of a complete motor starter for machinery requiring controlled movement in both directions.
Tick the specs you need, then view products that match.
| Coil / Supply Voltage | 24 V AC | |
|---|---|---|
| HS Code | 85365080 | |
| Manufacturer | Lovato Electric | |
| Series | BGT12 | |
| Model | 11BGT1210A02460 | |
| Product type | Reversing contactor assembly | |
| Application | Forward/reverse motor control | |
| Main contact configuration | 3-pole | |
| Rated operational current AC-3 | 12 A | |
| Control voltage | 24 V AC | |
| Coil frequency | 60 Hz | |
| Interlocking | Mechanical interlock between contactors | |
| Connection type | Screw terminals | |
| Installation | Industrial control panels and motor-control assemblies |
The 11BGT1210A02460 is a reversing contactor assembly for controlling the forward and reverse operation of compatible three-phase motors.
The BGT12.10A configuration has a rated operational current of 12 A in AC-3 motor-switching applications.
This version uses a 24 V AC control coil designed for 60 Hz operation.
The reversing assembly uses two contactors to change the phase sequence supplied to a three-phase motor, allowing the motor to operate in forward or reverse.
Yes. The forward and reverse contactors are mechanically interlocked to help prevent both contactors from closing simultaneously.
Lovato Electric BGT reversing contactors provide compact, coordinated switching for bidirectional motor applications, helping panel builders and machine manufacturers implement reliable forward and reverse control in industrial automation systems.
