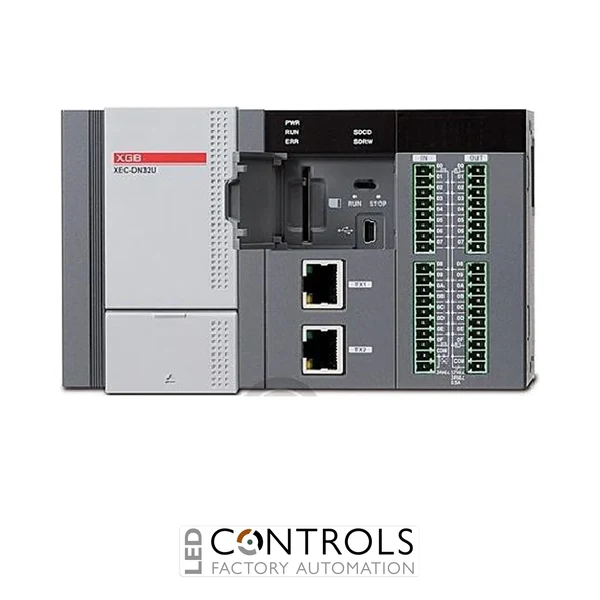

IMO XBC-DN32U is an XGBU compact PLC with a 100–240 V AC supply, 16 24 V DC digital inputs, 16 sink transistor outputs, dual Ethernet, RS232, RS485, Mini USB and SD card connectivity.
£620.46
The IMO XBC-DN32U is a high-performance XGBU compact programmable logic controller combining processing, digital I/O and extensive communications in a single controller. It operates from a 100–240 V AC supply and provides 16 × 24 V DC digital inputs together with 16 sink-type transistor outputs, giving a total of 32 integrated I/O points.
Designed for demanding machine and industrial automation applications, the XBC-DN32U incorporates two Ethernet ports, RS232, RS485 and Mini USB connectivity. Integrated Ethernet functionality supports networked automation applications, while the serial interfaces provide flexible communication with HMIs, drives, other PLCs and compatible Modbus devices.
The controller also provides an SD memory card slot for data logging, with support for cards up to 16 GB, together with an integrated web server, FTP functionality, email and SNTP capabilities. Eight high-speed counter channels further enhance its suitability for applications involving fast pulse signals, sensors, encoders and machine control.
The IMO XBC-DN32U combines conventional PLC control with extensive built-in communications, reducing the number of separate communication modules required in many applications. Its dual Ethernet interfaces can support networked automation equipment, while the independent RS232 and RS485 interfaces allow serial communication with HMIs, drives and other industrial devices.
For applications involving production records or machine data, the SD card interface provides local data-logging capability. Integrated web server, FTP, email and SNTP functions further extend the controller's networking capabilities, while eight high-speed counter channels make the XBC-DN32U suitable for applications requiring rapid pulse acquisition and position-related input processing.
| Manufacturer | IMO Precision Controls |
|---|---|
| Series | XGB / XGBU |
| Model | XBC-DN32U |
| Product type | Compact programmable logic controller |
| Power supply | 100–240 V AC |
| Total onboard I/O | 32 points |
| Digital inputs | 16 × 24 V DC |
| Digital outputs | 16 × transistor outputs |
| Output type | Sink / NPN transistor |
| Rated output load voltage | 12/24 V DC |
| Output operating voltage range | 10.2–26.4 V DC |
| Maximum output current | 0.5 A per point, 2 A per common |
| Output response time | 1 ms or less |
| Output isolation | Photocoupler |
| Ethernet | 2 ports |
| Serial communications | RS232 and RS485 |
| Programming interface | Mini USB |
| Memory card | SD card slot |
| SD data logging capacity | Up to 16 GB |
| High-speed counters | 8 channels |
| Network functions | Web server, FTP, email and SNTP |
| Programming software | XG5000 |
| Operating temperature | 0–55 °C |
| Storage temperature | -25–70 °C |
| Operating humidity | 5–95% RH, non-condensing |
| Weight | approx. 571 g |
| HS Code | 8537109199 |
| Country of Manufacture | South Korea |
The XBC-DN32U provides 32 onboard I/O points, consisting of 16 × 24 V DC digital inputs and 16 sink-type transistor digital outputs.
The standard IMO XBC-DN32U operates from a 100–240 V AC power supply. A separate XBC-DN32U/DC variant is available for applications requiring a 24 V DC-powered controller.
The controller includes two Ethernet ports, one RS232 interface, one RS485 interface and a Mini USB connection, providing extensive options for programming and industrial communications.
Yes. The XBC-DN32U incorporates an SD card slot and supports data logging to SD memory cards up to 16 GB, making it suitable for recording machine and process information.
The XBC-DN32U has 16 sink-type transistor outputs. They have a rated load voltage of 12/24 V DC and support up to 0.5 A per output point, subject to the specified 2 A per common limit.
The IMO XBC-DN32U combines 32 integrated digital I/O points, dual Ethernet, RS232, RS485, USB, SD data logging and high-speed counter functionality in a compact XGBU controller for sophisticated machine and industrial automation applications.
