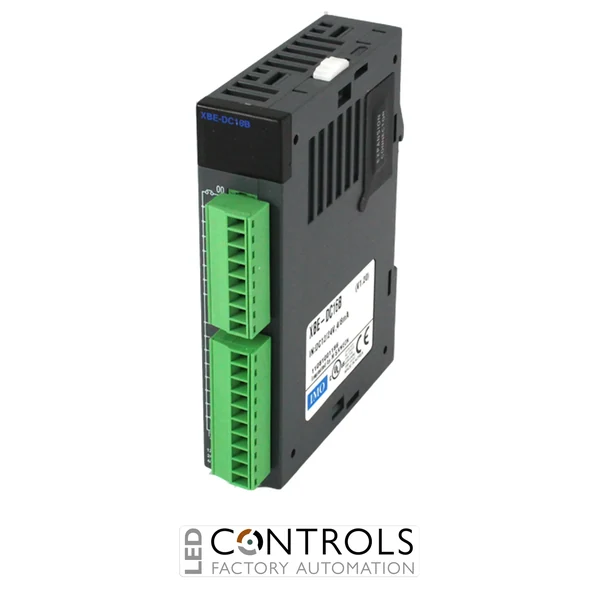

IMO XBE-DC16B is an XGB 16-point 12/24 V DC sinking/sourcing digital input expansion module with photocoupler isolation, configurable response filtering, LED status indication and removable terminal blocks.
£141.53
The IMO XBE-DC16B is a 16-point 12/24 V DC digital input expansion module designed for compatible IMO XGB programmable logic controller systems. It provides 16 additional discrete input channels for connecting sensors, switches, push buttons, limit switches and other DC field devices to an XGB automation system.
The XBE-DC16B supports both sinking and sourcing input wiring, with all 16 input points arranged on a single common. Its wide 9.5–30 V DC operating range allows the module to accommodate both nominal 12 V DC and 24 V DC input systems, while photocoupler isolation provides electrical separation between the field inputs and internal PLC circuitry.
Configurable input filtering provides response-time selections from 1–100 ms, allowing the module to be adapted to different signal and noise conditions. Individual LED status indication and removable terminal blocks also simplify installation, commissioning, diagnostics and maintenance in industrial control panels.
The IMO XBE-DC16B provides a practical way to add a further 16 discrete field signals to an XGB PLC system. Its ability to accept both nominal 12 V DC and 24 V DC signals, together with sinking and sourcing wiring support, makes the module adaptable to a broad range of industrial sensors, switches and control devices.
Adjustable response filtering allows the input behaviour to be matched to the application. Faster settings can be selected where rapid signal recognition is important, while longer filtering periods can help suppress unwanted transitions caused by electrical noise or mechanical contact bounce. Individual input LEDs provide immediate visual feedback during commissioning and fault finding.
| Manufacturer | IMO Precision Controls |
|---|---|
| Series | XGB |
| Model | XBE-DC16B |
| Product type | Digital input expansion module |
| Number of inputs | 16 |
| Input type | Sinking/sourcing |
| Rated input voltage | 12/24 V DC |
| Rated input current at 12 V DC | 4 mA |
| Rated input current at 24 V DC | 8 mA |
| Operating voltage range | 9.5–30 V DC |
| Permitted ripple | Less than 5% |
| ON voltage/current | 9 V DC or higher / 3 mA or higher |
| OFF voltage/current | 5 V DC or lower / 1 mA or lower |
| Input resistance | approx. 2.7 kΩ |
| Isolation method | Photocoupler |
| Common configuration | 16 points / COM |
| Response time | 1 / 3 / 5 / 10 / 20 / 70 / 100 ms, configurable by PLC parameter |
| Default response time | 3 ms |
| Dielectric withstand | 560 V AC RMS for 3 cycles at an altitude of 2,000 m |
| Insulation resistance | 10 MΩ or greater |
| Internal current consumption | approx. 40 mA with all inputs on |
| Operation indication | LED illuminated when input is on |
| External connection | 8-pin terminal block connector + 10-pin terminal block connector |
| Recommended conductor size | 0.3–0.75 mm² stranded conductor |
| Maximum conductor external diameter | 2.8 mm |
| Weight | approx. 53 g |
| Approvals | CE and UL |
| HS Code | 8537109199 |
| Country of Manufacture | South Korea |
The XBE-DC16B provides 16 digital input points, with all 16 channels arranged on a single common.
The module is rated for 12/24 V DC input signals and has an operating voltage range of 9.5–30 V DC with less than 5% ripple.
Yes. The XBE-DC16B supports both sinking and sourcing wiring, providing flexibility when connecting compatible DC sensors and other field devices.
Yes. The input response can be configured through the PLC parameters with settings of 1, 3, 5, 10, 20, 70 or 100 ms. The default setting is 3 ms.
The XBE-DC16B uses removable 8-pin and 10-pin terminal block connectors, allowing field wiring to be disconnected from the module during installation or maintenance.
The IMO XBE-DC16B provides 16 sinking/sourcing-compatible 12/24 V DC digital inputs with photocoupler isolation, configurable response filtering, LED status indication and removable terminal blocks for versatile XGB PLC expansion.
