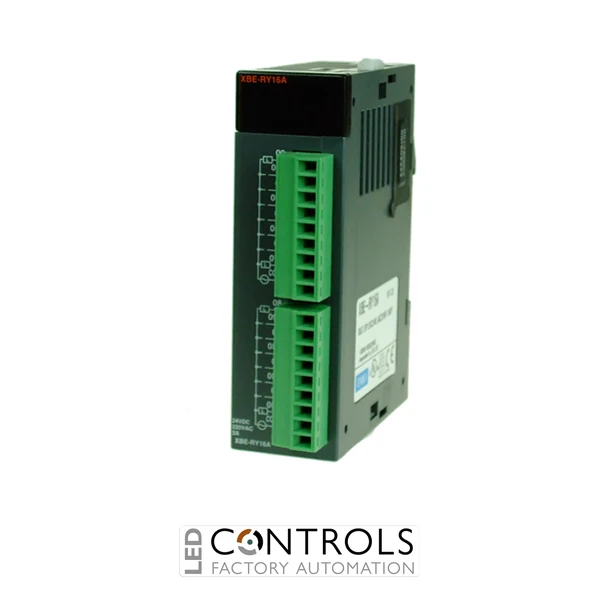

IMO XBE-RY16A is a 16-point relay output expansion module for XGB PLC systems, providing relay-isolated switching of compatible AC and DC loads in industrial automation applications.
£195.36
The IMO XBE-RY16A is a compact and reliable 16-point relay output expansion module designed for IMO XGB programmable logic controller systems. It provides 16 relay-isolated outputs for controlling electrical loads in industrial machinery, control panels and automated equipment.
As part of the IMO XGB expansion I/O range, the XBE-RY16A enables compatible PLC systems to control contactors, solenoid valves, indicators, alarms and other AC or DC loads. Its electromechanical relay outputs provide electrical isolation and allow a wide range of load voltages to be switched, making the module a versatile choice for industrial control applications.
The module provides 16 relay output points arranged as two groups of eight outputs, with a maximum common current of 5 A per COM. Each output supports a resistive load of up to 2 A at 24 V DC or 2 A at 220 V AC, while the maximum load voltage is 250 V AC or 125 V DC.
Relay output modules allow a PLC to control external electrical equipment by opening and closing electrically isolated contacts. The IMO XBE-RY16A provides 16 relay outputs, giving machine builders and control engineers a higher-density solution for switching compatible AC and DC loads from an XGB PLC system.
The outputs are divided into two groups of eight, each with its own common connection. This arrangement provides practical field wiring while the relay contacts allow different types of industrial loads to be controlled. LED status indication gives operators and engineers quick visual confirmation of output operation during commissioning, maintenance and fault finding.
Tick the specs you need, then view products that match.
| Current | 16 A | |
|---|---|---|
| Manufacturer | IMO | |
| Series | XGB | |
| Model | XBE-RY16A | |
| Product type | Relay output expansion module | |
| Number of outputs | 16 | |
| Output type | Relay | |
| Isolation method | Relay isolation | |
| Rated resistive load | 24 V DC, 2 A / 220 V AC, 2 A per point | |
| Maximum common current | 5 A / COM | |
| Minimum load | 5 V DC, 1 mA | |
| Maximum load voltage | 250 V AC / 125 V DC | |
| OFF leakage current | 0.1 mA at 220 V AC, 60 Hz | |
| Maximum switching frequency | 3,600 operations / hour | |
| Surge absorber | None | |
| Mechanical service life | 20 million operations or more | |
| Electrical service life at rated load | 100,000 operations or more | |
| OFF to ON response time | 10 ms or less | |
| ON to OFF response time | 12 ms or less | |
| Common configuration | 8 points / COM | |
| Number of commons | 2 | |
| Recommended cable size | 0.3–0.75 mm² stranded cable | |
| Internal current consumption | 420 mA with all outputs ON | |
| Operation indication | LED illuminated when output is ON | |
| External connection | 9-pin terminal block connector × 2 | |
| Weight | approx. 130 g | |
| HS Code | 8537109199 | |
| Country of Manufacture | South Korea |
The XBE-RY16A is used to add 16 relay output points to compatible IMO XGB PLC systems, allowing the controller to switch contactors, solenoid valves, indicators and other compatible AC or DC electrical loads.
The XBE-RY16A provides 16 relay output points, arranged as two groups of eight outputs with a separate common for each group.
For resistive loads, each relay output is rated at up to 2 A at 24 V DC or 220 V AC, with a maximum total current of 5 A per common.
The relay outputs support a maximum load voltage of 250 V AC or 125 V DC, subject to the applicable contact and load ratings.
The relay outputs have an OFF-to-ON response time of 10 ms or less and an ON-to-OFF response time of 12 ms or less.
IMO XGB expansion modules provide flexible additional I/O for industrial PLC applications, helping machine builders and automation engineers expand control systems with dependable relay-based switching for a wide range of industrial field equipment.
