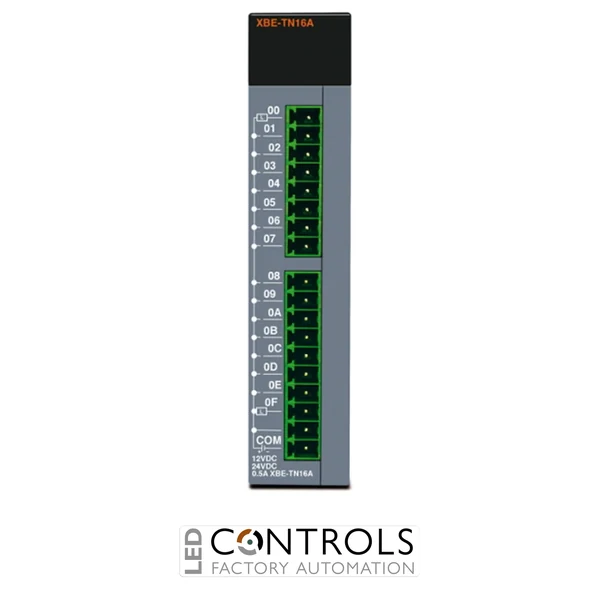

IMO XBE-TN16A is an XGB 16-point sink-type transistor output expansion module for 12 / 24 V DC loads, providing fast solid-state switching at 0.2 A per output point for industrial automation.
£181.50
The IMO XBE-TN16A is a compact 16-point sink-type transistor output expansion module designed for XGB programmable logic controller systems. It provides sixteen solid-state DC outputs for controlling compatible industrial loads where reliable and responsive electronic switching is required.
The XBE-TN16A provides 16 sink-type transistor outputs with a 12 / 24 V DC rated load voltage and an operating load voltage range of 10.2–26.4 V DC. Each output supports a rated load of up to 0.2 A per point, with the module using a 16-point common arrangement.
With photocoupler isolation and switching response times of 1 ms or less, the XBE-TN16A is well suited to industrial automation applications requiring faster and more frequent switching than conventional electromechanical relay outputs. Integrated output indication, Zener diode surge suppression and removable terminal connections support straightforward installation, commissioning and maintenance.
Transistor output modules provide solid-state switching for compatible DC loads, making them particularly useful for automation applications involving frequent or rapid switching. The IMO XBE-TN16A provides sixteen independently controlled sink-type outputs that allow an XGB PLC system to operate compatible actuators, indicators and other DC control devices.
Photocoupler isolation separates the field output circuitry from the module's internal electronics, while integrated Zener diode surge suppression helps manage switching transients. Output status LEDs provide immediate visual indication during commissioning and troubleshooting, making the module a practical choice for machine builders and industrial automation engineers.
Tick the specs you need, then view products that match.
| Current | 16 A | |
|---|---|---|
| Manufacturer | IMO | |
| Series | XGB | |
| Model | XBE-TN16A | |
| Product type | Digital transistor output expansion module | |
| Output type | Sink transistor | |
| Number of outputs | 16 | |
| Isolation method | Photocoupler | |
| Rated load voltage | 12 / 24 V DC | |
| Load voltage range | 10.2–26.4 V DC | |
| Rated load current | 0.2 A per point | |
| OFF-state leakage current | 0.1 mA or less | |
| Maximum inrush current | 4 A for 10 ms or less | |
| Maximum ON-state voltage drop | 0.4 V DC | |
| Surge suppression | Zener diode | |
| OFF-to-ON response time | 1 ms or less | |
| ON-to-OFF response time | 1 ms or less at rated resistive load | |
| Common configuration | 16 points / COM | |
| External power supply | 12 / 24 V DC ±10% | |
| External current consumption | 10 mA or less at 24 V DC | |
| Internal current consumption | 60 mA with all points ON | |
| Recommended conductor size | 0.3–0.75 mm² stranded cable | |
| Operation indication | LED illuminated when output is ON | |
| External connection | 8-pin and 10-pin terminal block connectors | |
| Weight | approx. 54 g | |
| HS Code | 8537109199 | |
| Country of Manufacture | South Korea |
The XBE-TN16A is a 16-point sink-type transistor output expansion module used to control compatible DC loads from an XGB PLC automation system.
The XBE-TN16A provides 16 sink-type transistor outputs with a 16-point common configuration.
The module is designed for 12 / 24 V DC rated loads and supports a load voltage range of 10.2–26.4 V DC.
The XBE-TN16A supports a rated load current of 0.2 A per output point.
The XBE-TN16A provides an OFF-to-ON response time of 1 ms or less and an ON-to-OFF response time of 1 ms or less under specified rated resistive-load conditions.
