IMO XBL-CMEA XGB CANopen master communication module with one communication port, support for up to 32 CANopen nodes and transmission speeds from 10 kbps to 1,000 kbps for industrial automation networks.
£602.23

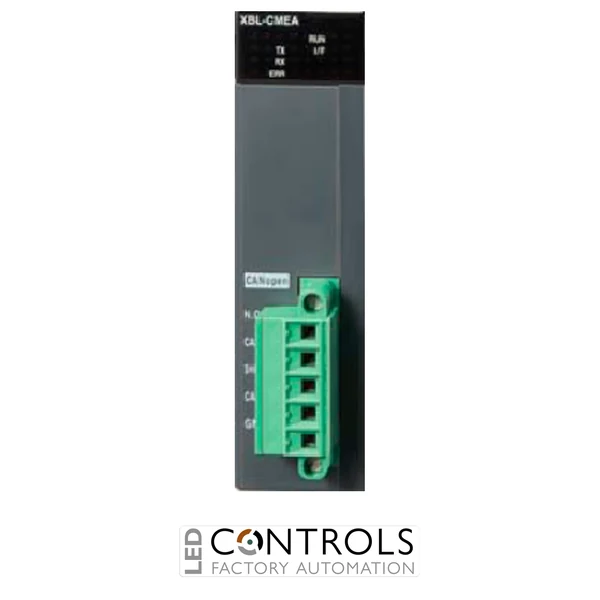

The IMO XBL-CMEA is a compact industrial CANopen master communication module designed for compatible XGB programmable logic controller (PLC) systems. It provides a dedicated CANopen interface that allows an XGB PLC to operate as the network master and exchange process data with compatible drives, HMIs, controllers, remote I/O and other CANopen field devices.
Designed around the established CANopen industrial communication standard, the XBL-CMEA supports a wide range of network transmission rates from 10 kbps to 1,000 kbps. The module provides one CANopen communication port and supports bus topology, PDO and SDO communication, SYNC production, NMT master functionality and network scanning for flexible industrial automation integration.
The XBL-CMEA supports connection of up to 32 CANopen nodes and provides extensive communication and diagnostic functionality for machinery and automated systems. Its compact 90 × 27 × 60 mm format makes efficient use of control-panel space, while integrated RUN, I/F, TX, RX and ERR indicators provide convenient visual monitoring of module and network status.
CANopen is an established industrial networking protocol based on the CAN bus and is widely used for communication between PLCs, motor drives, motion equipment, sensors, actuators and other automation devices. The IMO XBL-CMEA enables a compatible XGB PLC system to manage a CANopen network as its master device, coordinating communication with connected slave nodes.
The module supports process data objects (PDOs), service data objects (SDOs), network management and synchronisation services. This combination allows both rapid cyclic process-data exchange and parameter or configuration communication, making the XBL-CMEA suitable for sophisticated machine control and distributed automation applications.
| Manufacturer | IMO |
|---|---|
| Series | XGB |
| Model | XBL-CMEA |
| Product type | CANopen master communication module |
| Communication protocol | CANopen |
| Network function | CANopen Master |
| Number of communication ports | 1 |
| Transmission speeds | 10, 20, 50, 100, 125, 250, 500, 800, 1,000 kbps |
| Maximum connected nodes | 32 |
| Supported TPDOs | 32 |
| Supported RPDOs | 32 |
| Maximum data length per PDO | 8 bytes |
| Supported SDOs | 127 clients / 1 server |
| SDO transmission | Expedited and normal |
| Network access method | CSMA/BA |
| Network topology | Bus |
| SYNC service | Producer, 20–5,000 ms cycle |
| NMT node control | NMT Master |
| NMT error control | Heartbeat and Life Guarding |
| Network scan | Supported |
| CAN termination | 120 Ω, 1/2 W |
| Current consumption | 211 mA |
| Dimensions (H × W × D) | 90 × 27 × 60 mm |
| Weight | 78 g |
| HS Code | 8537109199 |
| Country of Manufacture | South Korea |
The XBL-CMEA is a CANopen master communication module that allows a compatible XGB PLC system to communicate with and manage devices on an industrial CANopen network.
The XBL-CMEA supports connection of up to 32 CANopen nodes, making it suitable for multi-device industrial automation networks.
The module supports CANopen transmission rates of 10, 20, 50, 100, 125, 250, 500, 800 and 1,000 kbps.
The XBL-CMEA operates as a CANopen master and provides NMT master functionality for managing compatible slave devices on the network.
The XBL-CMEA measures approximately 90 × 27 × 60 mm (H × W × D) and weighs approximately 78 g, providing a compact communication solution for industrial control panels.
IMO XGB communication modules provide machine builders, system integrators and automation engineers with flexible industrial networking options for integrating PLC control systems with drives, remote devices and distributed automation equipment.
