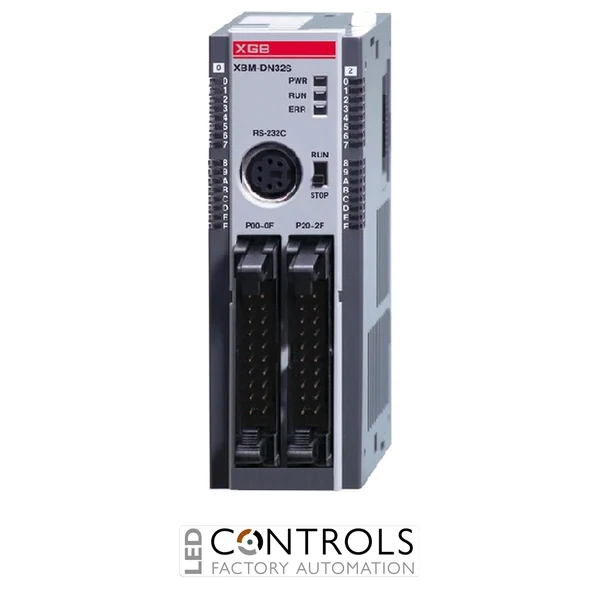

IMO XBM-DN32S XGB micro PLC with 24 V DC supply, 16 digital inputs, 16 transistor outputs, 10K-step program capacity and expandable industrial automation functionality.
£332.61
The IMO XBM-DN32S is a compact and high-performance programmable logic controller (PLC) designed for small and medium-scale industrial automation applications. As part of the IMO XGB XBM PLC series, it combines an integrated CPU with 16 digital inputs and 16 transistor outputs, providing a total of 32 onboard digital I/O points in a space-efficient controller.
Powered from a 24 V DC supply, the XBM-DN32S provides fast PLC processing with a basic instruction speed of approximately 160 ns/step and a program capacity of 10K steps. Built-in high-speed inputs, positioning functionality, PID control and serial communications make it suitable for machinery requiring more than basic sequential control.
The XBM-DN32S provides 16 × 24 V DC digital inputs and 16 transistor outputs rated up to 0.2 A per general-purpose point. The controller can also accommodate up to seven expansion modules and supports up to 256 I/O points, providing a flexible platform that can grow with the requirements of an automation system.
Programmable logic controllers such as the IMO XBM-DN32S provide deterministic control of sensors, switches, actuators and other industrial equipment. Its integrated digital I/O enables the controller to handle a wide range of machine signals without requiring separate I/O modules for a basic installation, while expansion capability allows additional digital, analogue and specialist functions to be added when required.
The XBM platform combines high-speed processing with built-in communication, positioning, high-speed counting and PID functionality. This makes the XBM-DN32S suitable for applications ranging from straightforward machine sequencing to more sophisticated automation involving motion, process control and communication with other industrial devices.
| Manufacturer | IMO |
|---|---|
| Series | XGB XBM |
| Model | XBM-DN32S |
| Product type | Micro programmable logic controller |
| Supply voltage | 24 V DC |
| Onboard digital inputs | 16 |
| Rated input voltage | 24 V DC |
| Input type | Source / sink compatible DC input |
| Input operating voltage range | 20.4–28.8 V DC |
| Onboard digital outputs | 16 |
| Output type | Transistor, sink |
| Rated output load voltage | 12 / 24 V DC |
| Output load voltage range | 10.2–26.4 V DC |
| General output rating | 0.2 A per point |
| Output response time | ≤1 ms |
| Program capacity | 10K steps |
| Basic processing speed | approx. 160 ns/step |
| Maximum I/O capacity | up to 256 points |
| Maximum expansion modules | 7 |
| Programming language | Ladder |
| Programming software | XG5000 |
| Communication | RS-232C / RS-485 |
| PID control | Supported |
| High-speed inputs | Supported |
| Positioning | Supported |
| Internal current consumption | approx. 280 mA |
| Operating temperature | 0–55 °C |
| Storage temperature | -25–70 °C |
| Operating humidity | 5–95% RH, non-condensing |
| Maximum operating altitude | 2,000 m |
| Mounting type | DIN rail |
| External I/O connection | 20-pin connectors |
| Compatible breakout cable | R40H/20HH-05S-XBM3 |
| Compatible terminal board | TG7-1H40S |
| Weight | approx. 110 g |
| HS Code | 8537109199 |
| Country of Manufacture | South Korea |
The XBM-DN32S is a micro PLC designed to control industrial machinery and automation systems using its integrated digital inputs, transistor outputs, communications and programmable control functions.
The XBM-DN32S has 16 digital inputs and 16 transistor digital outputs, providing 32 onboard digital I/O points.
The XBM-DN32S operates from a 24 V DC supply, making it suitable for standard industrial control-panel power systems.
Yes. The XBM platform supports up to 7 expansion modules, with the XBM-DN32S system capable of supporting up to 256 I/O points depending on the selected configuration.
The XBM-DN32S uses connector-based I/O and can be connected to the TG7-1H40S screw terminal board using the appropriate R40H/20HH-05S-XBM3 breakout cable.
IMO XGB XBM programmable logic controllers provide machine builders, system integrators and automation engineers with compact, expandable control for machinery ranging from straightforward sequential systems to applications requiring high-speed I/O, positioning and industrial communications.
