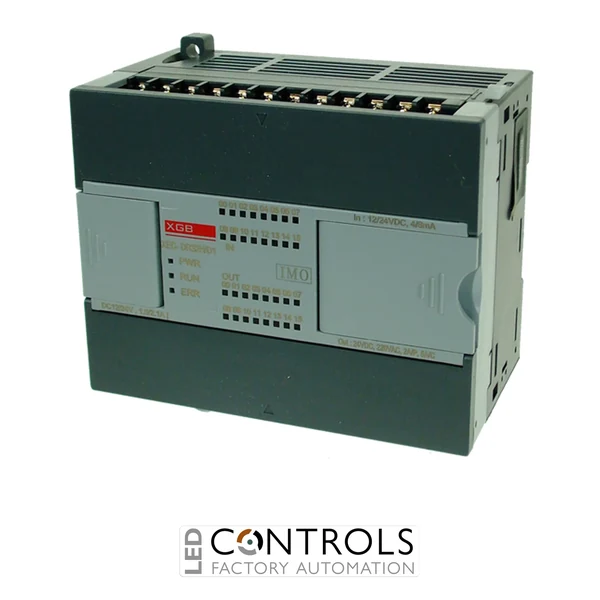

IMO XEC-DR32H/DC-E is an E-marked XGB IEC PLC with a 12/24 V DC supply, 16 digital inputs, 16 relay outputs rated at 2 A resistive, 200 KB IEC program capacity and integrated RS-232C, RS-485, high-speed counter, PID and positioning functions.
£525.75
The IMO XEC-DR32H/DC-E is a high-performance programmable logic controller (PLC) from the IMO XGB XEC range, combining an IEC-programmable CPU with 16 digital inputs and 16 relay outputs. This provides 32 onboard digital I/O points for machinery, vehicle-based equipment and industrial automation systems requiring flexible relay switching.
The XEC-DR32H/DC-E operates from a 12/24 V DC supply and is the E-marked version of the XEC-DR32H platform, making it particularly suitable for compatible vehicle and mobile-equipment applications. Its CPU provides a basic instruction processing speed of approximately 83 ns/step and an IEC program capacity of 200 KB.
In addition to its onboard I/O, the controller provides built-in RS-232C and RS-485 communications, high-speed counting, PID control, pulse catch, configurable input filtering, external interrupts, positioning and a real-time clock. Up to 10 expansion modules can be added, allowing the XEC-DR32H/DC-E to form the core of substantially larger automation systems.
The IMO XEC-DR32H/DC-E combines the industrial automation capabilities of the XGB XEC platform with a DC-powered, E-marked design. This makes it particularly useful where PLC control is required in compatible vehicle, mobile-machine or transport-related installations, while retaining the programming, I/O expansion and control functions expected from an industrial PLC.
Built-in high-speed counting, PID control, positioning, pulse catch and external interrupt functions allow the controller to handle considerably more than basic sequential logic. RS-232C and RS-485 communications provide connectivity with HMIs, drives and other automation equipment, while the expansion architecture allows additional digital, analogue and specialist modules to be incorporated when required.
| Manufacturer | IMO |
|---|---|
| Series | XGB XEC |
| Model | XEC-DR32H/DC-E |
| Alternative manufacturer designation | XEC-DR32H/D1 |
| Product type | IEC programmable logic controller |
| Version | E-marked DC-powered controller |
| Rated supply voltage | 12/24 V DC |
| Total onboard I/O | 32 points |
| Digital inputs | 16 |
| Digital outputs | 16 |
| Output type | Relay |
| Relay output rating | 2 A resistive |
| Control method | Repetitive, cyclic, interrupt and constant scan |
| I/O control | Refresh mode batch processing by scan synchronisation / direct mode by instruction |
| Basic instructions | 28 |
| Applied instructions | 687 |
| Basic instruction processing speed | approx. 83 ns/step |
| IEC program capacity | 200 KB |
| Maximum I/O capacity | 672 points including main unit and expansion |
| Maximum expansion modules | 10 |
| Maximum programs | 128 |
| Programming languages | IEC standard LD, SFC and FD |
| Symbolic variable area | 32 KB |
| Input variable area | 2 KB |
| Output variable area | 2 KB |
| M direct variable area | 16 KB |
| R direct variable area | 20 KB |
| W direct variable area | 20 KB |
| F flag variable area | 2 KB |
| K variable area | 8 KB |
| L variable area | 4 KB |
| N variable area | 10 KB |
| U variable area | 1 KB |
| Flash area | 20 KB × 2 blocks using R device |
| Programming interface | USB Rev. 1.1 / RS-232C |
| Built-in serial communication | RS-232C and RS-485 |
| High-speed counter | Supported |
| PID control | Supported |
| Pulse catch | Supported |
| Input filtering | Supported |
| External interrupt | Supported |
| Positioning | Supported |
| Real-time clock | Integrated |
| Operating modes | RUN, STOP, DEBUG |
| Data retention | Latch-range setting through basic parameters |
| Self-diagnostics | Operation-delay monitoring, memory-error monitoring and controller diagnostics |
| Internal current consumption | approx. 660 mA |
| Weight | approx. 600 g |
| HS Code | 8537109199 |
| Country of Manufacture | South Korea |
The XEC-DR32H/DC-E is an E-marked XGB IEC programmable logic controller with 16 digital inputs, 16 relay outputs and a 12/24 V DC power supply.
The controller provides 16 digital inputs and 16 relay outputs, giving a total of 32 onboard digital I/O points.
The XEC-DR32H/DC-E is an E-marked version intended for compatible vehicle applications, making it particularly suitable for automation systems installed in mobile and vehicle-based equipment where the corresponding approval is required.
The controller provides built-in high-speed counting, PID control, pulse catch, input filtering, external interrupts, positioning and real-time clock functionality, together with RS-232C and RS-485 communications.
Yes. The XEC-DR32H/DC-E supports up to 10 expansion modules and a maximum system capacity of up to 672 I/O points, allowing compatible digital, analogue, communication and specialist modules to be added.
IMO XGB XEC programmable logic controllers provide machine builders, vehicle-equipment manufacturers and automation engineers with high-speed processing, expandable I/O, IEC programming and integrated control functions for demanding industrial and mobile automation applications.
