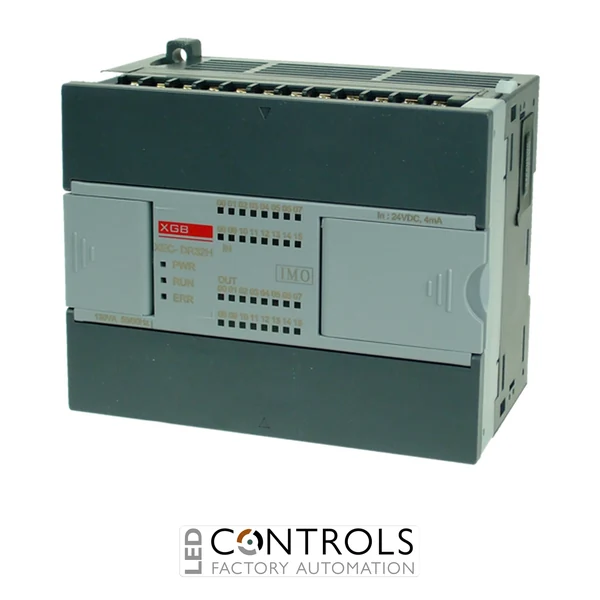

IMO XEC-DR32H XGB high-performance PLC with a 100–240 V AC supply, 16 digital inputs, 16 relay outputs rated at 2 A resistive, 200 KB IEC program capacity and built-in serial communications.
£525.75
The IMO XEC-DR32H is a compact, high-performance programmable logic controller (PLC) from the IMO XGB range, designed for industrial machinery and sophisticated automation applications. It combines an IEC-programmable CPU with 16 digital inputs and 16 relay outputs, providing a total of 32 onboard digital I/O points.
Powered from a 100–240 V AC supply, the XEC-DR32H provides fast PLC processing with a basic instruction execution speed of approximately 83 ns/step. Its IEC program memory capacity is 200 KB, while integrated communication and control functions make the controller suitable for both standalone machinery and expandable automation systems.
The XEC-DR32H provides 16 × 24 V DC digital inputs together with 16 relay outputs rated at 2 A resistive. Expansion support allows additional digital, analogue and specialist modules to be added, while built-in RS-232C and RS-485 interfaces provide convenient communication with HMIs, drives and other industrial equipment.
The IMO XEC-DR32H combines fast PLC processing with relay-based output switching, making it suitable for machinery that requires control of contactors, solenoid valves, indicators and other AC or DC loads. The 16 integrated digital inputs accept standard 24 V DC machine signals, while configurable input response times allow the controller to be adapted to different sensing and control requirements.
The XGB architecture also allows the XEC-DR32H to be expanded with compatible digital, analogue, communication and specialist modules. Built-in RS-232C and RS-485 interfaces simplify integration with HMIs, variable-speed drives and other automation equipment, providing a flexible platform for both standalone machines and larger control systems.
| Manufacturer | IMO |
|---|---|
| Series | XGB XEC |
| Model | XEC-DR32H |
| Product type | High-performance programmable logic controller |
| Rated supply voltage | 100–240 V AC |
| Supply voltage range | 85–264 V AC |
| Supply frequency | 50 / 60 Hz |
| Total onboard I/O | 32 points |
| Digital inputs | 16 |
| Rated input voltage | 24 V DC |
| Input type | Source / sink compatible |
| Input insulation | Photocoupler |
| Input operating voltage range | 20.4–28.8 V DC |
| Rated input current | approx. 4 mA, with inputs 0–7 approx. 10 mA |
| Input response time | 1 / 3 / 5 / 10 / 20 / 70 / 100 ms selectable, 3 ms default |
| Digital outputs | 16 |
| Output type | Relay |
| Relay insulation | Relay isolation |
| Rated relay load | 24 V DC, 2 A resistive / 220 V AC, 2 A resistive |
| Maximum current per common | 5 A |
| Minimum relay load | 5 V DC, 1 mA |
| Maximum relay load voltage | 250 V AC / 125 V DC |
| Relay OFF-to-ON response | ≤10 ms |
| Relay ON-to-OFF response | ≤12 ms |
| Maximum relay switching frequency | 3,600 operations/hour |
| Mechanical relay life | 20 million operations or more |
| Basic instruction processing speed | approx. 83 ns/step |
| IEC program capacity | 200 KB |
| Maximum expansion | 10 stages |
| Programming languages | IEC-compatible programming including Ladder Diagram and sequential programming functions |
| Serial communication | RS-232C / RS-485 |
| PID control | Supported |
| High-speed counter | Supported |
| Battery | 3 V, 220 mAh lithium battery for program/data backup and RTC operation |
| Internal 5 V DC current consumption | approx. 660 mA |
| Dimensions (W × H × D) | approx. 114 × 90 × 64 mm |
| Weight | approx. 800 g |
| HS Code | 8537109199 |
| Country of Manufacture | South Korea |
The XEC-DR32H is a high-performance PLC designed for industrial machinery and automation systems requiring integrated digital I/O, relay switching, fast program execution and expandable control functionality.
The XEC-DR32H provides 16 digital inputs and 16 relay outputs, giving a total of 32 onboard digital I/O points.
The XEC-DR32H is the AC-powered version and has a rated supply of 100–240 V AC, with an operating input range of approximately 85–264 V AC.
The relay outputs are rated for loads including 24 V DC at 2 A resistive and 220 V AC at 2 A resistive, subject to the specified 5 A common-group limit.
Yes. The XEC-DR32H supports up to 10 expansion stages, allowing compatible digital I/O, analogue, communication and specialist modules to be added to suit the automation application.
IMO XGB XEC programmable logic controllers provide machine builders, system integrators and automation engineers with high-speed processing, expandable I/O, industrial communications and flexible IEC programming for demanding machine and process-control applications.
