Why Choose the ABB 831038 Aria Pertinax Mounting Plate?

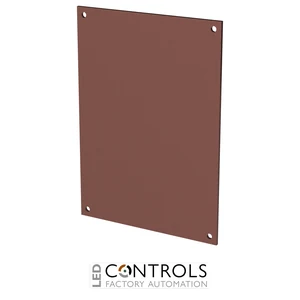

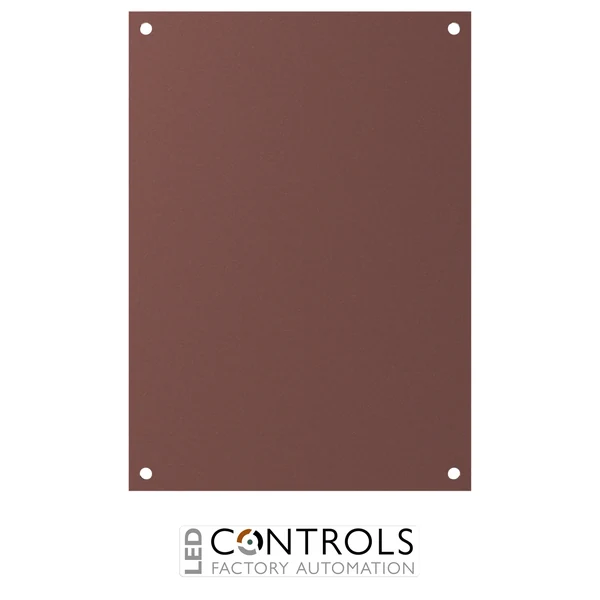

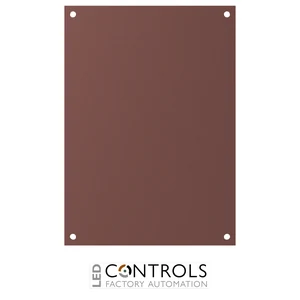

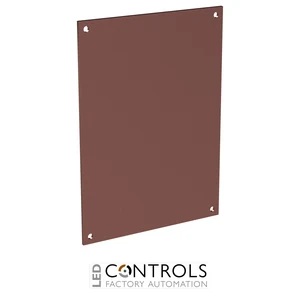

The ABB 831038 is a 250 mm wide × 350 mm high × 5 mm thick Pertinax mounting plate designed for use with the ABB Aria 43 electrical enclosure. Also identified by the manufacturer's reference AR043I03, this internal mounting accessory provides a practical support surface for installing suitable electrical components within compatible distribution and control cabinets.
Part of the ABB Aria Enclosures accessory range, the 831038 is manufactured from Pertinax insulating hard paper, providing a non-metallic alternative to conventional steel mounting plates. Its rigid construction makes it useful for electrical panel assembly applications where an insulating mounting surface is preferred for the installation of compatible components and accessories.
With its 5 mm material thickness and 250 × 350 mm nominal mounting dimensions, the ABB 831038 offers a dedicated mounting solution for Aria 43 cabinets. The plate is suitable for professional electrical installation, panel-building and maintenance applications where component positioning, enclosure compatibility and appropriate mechanical support are important considerations.
Key Advantages
- 5 mm thick Pertinax construction provides a rigid internal mounting surface.
- Non-metallic insulating material offers an alternative to steel mounting plates.
- 250 × 350 mm dimensions for compatible ABB Aria 43 enclosures.
- Designed specifically for the ABB Aria 43 enclosure range.
- Supports organised installation of suitable electrical components.
- Provides a dedicated internal mounting surface for electrical cabinet assemblies.
- Suitable for applications where an insulating mounting substrate is preferred.
- Can support customised component positioning using appropriate fixing methods.
- Useful for new panel construction and compatible replacement applications.
- Forms part of the established ABB Aria Enclosures accessory system.
- Identified by ABB order code 4TBA831038C0100 for accurate product selection.
Key Features
- ABB Aria Enclosures accessory.
- 831038 product designation.
- AR043I03 manufacturer reference.
- Internal electrical enclosure mounting plate.
- Pertinax insulating hard paper material.
- Non-metallic construction.
- 250 mm nominal width.
- 350 mm nominal height.
- 5 mm material thickness.
- Designed for ABB Aria 43 enclosures.
- Suitable for mounting appropriately selected electrical equipment.
- Supports internal component layout and panel assembly.
- Supplied as 1 mounting plate.
Insulating Mounting Solutions for Electrical Control and Distribution Panels
Electrical enclosures frequently require internal mounting surfaces for equipment such as terminal blocks, relays, control components and associated installation accessories. The ABB 831038 Pertinax mounting plate provides a dedicated non-metallic mounting substrate within the compatible Aria 43 enclosure, supporting an organised electrical equipment layout.
Pertinax is a rigid insulating material commonly used in electrical engineering applications. Compared with a conventional steel mounting plate, it provides a non-metallic mounting surface that may be beneficial where the panel design calls for an insulating substrate. Its 5 mm thickness offers a substantial base for suitable component fixing arrangements, subject to the manufacturer's mechanical and installation requirements.
When selecting the ABB 831038 for an electrical panel, installers should consider component dimensions, mounting hardware, mechanical loads, operating temperatures, wiring access and electrical clearances. Any required fixing holes or modifications must be made using appropriate methods and in accordance with the relevant installation instructions. The mounting plate's insulating material does not replace the need for suitable protective measures, component insulation or compliance with applicable electrical installation standards.
Typical Applications
- Internal component mounting within ABB Aria 43 enclosures.
- Electrical distribution cabinet assembly.
- Industrial control panel construction.
- Mounting suitable terminal blocks and electrical accessories.
- Electrical installations requiring a non-metallic mounting substrate.
- Commercial building electrical control cabinets.
- Electrical panel-building and equipment assembly projects.
- Control and automation enclosure installations.
- Replacement of compatible Aria 43 mounting plates.
- Electrical cabinet refurbishment and maintenance.
