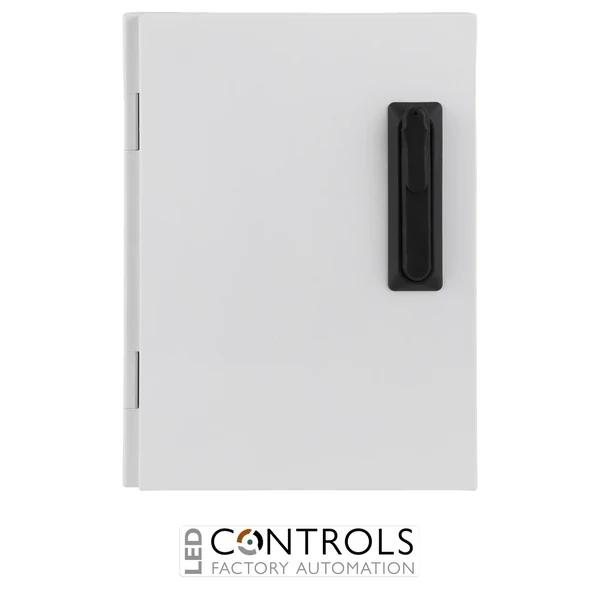

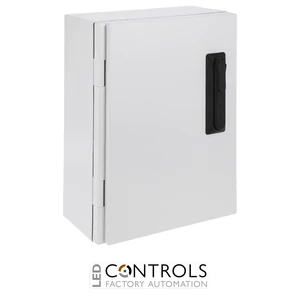

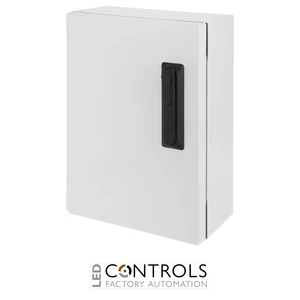

Why Choose the ABB 831034 ARIA Polyester Enclosure?
The ABB 831034 (4TBA831034C0100) is a robust and reliable industrial electrical enclosure designed to protect electrical distribution, control and automation equipment in demanding environments. As part of the established ABB ARIA Enclosures series, this enclosure provides a durable housing solution for electrical installations requiring dependable protection against dust, moisture and mechanical impact.
Manufactured from high-quality glass-fibre reinforced polyester, the ABB 831034 combines excellent mechanical strength with corrosion resistance and electrical insulation properties. Its self-extinguishing, halogen-free construction makes it suitable for a wide range of industrial and commercial applications. The enclosure features a solid, non-transparent door and a secure locking arrangement to help protect installed electrical components from environmental exposure and unauthorised access.
With enclosure dimensions of 315 mm wide, 415 mm high and 170 mm deep, the ABB 831034 offers a practical housing solution for electrical control and distribution equipment. Its IP66 ingress protection rating and IK08 mechanical impact resistance make it particularly suitable for installations where environmental protection and long-term durability are essential.
Key Advantages
- Durable industrial electrical enclosure from the ABB ARIA series.
- 315 × 415 × 170 mm enclosure dimensions for electrical distribution and control applications.
- IP66 ingress protection against dust and powerful water jets when correctly installed.
- IK08 impact resistance for dependable mechanical protection.
- Robust glass-fibre reinforced polyester construction offers excellent corrosion resistance.
- Self-extinguishing and halogen-free material supports electrical installation safety.
- Solid, non-transparent door provides a protective enclosure front.
- Security lock handle helps restrict access to internal electrical equipment.
- Electrically insulating enclosure material reduces the risk of conductive contact through the housing.
- Suitable for industrial, commercial and building services installations.
- Compatible with selected ABB ARIA mounting accessories for flexible internal equipment arrangements.
Key Features
- ABB ARIA universal polyester enclosure series.
- Manufacturer reference: 831034.
- ABB order code: 4TBA831034C0100.
- ARIA 43 enclosure format.
- 315 mm width, 415 mm height and 170 mm depth.
- IP66 protection rating for demanding installation environments.
- IK08 mechanical impact resistance.
- Glass-fibre reinforced polyester housing.
- Self-extinguishing, halogen-free construction.
- Solid door without an inspection window.
- Security lock handle for controlled enclosure access.
- Corrosion-resistant, electrically insulating enclosure body.
- Provision for compatible internal mounting plates and mounting frames.
- Designed for surface-mounted electrical installations.
- Suitable for electrical distribution, industrial control and automation equipment.
Technical Specifications
- Manufacturer: ABB
- Product group: Aria Enclosures
- Series: ARIA Universal Polyester Enclosures
- Enclosure format: ARIA 43
- Manufacturer reference: 831034
- ABB order code: 4TBA831034C0100
- Catalogue type: AR043H33
- Product type: Industrial electrical enclosure
- Product description: 831034 Encl 315w x 415h x 170d B/D SL
- Enclosure width: 315 mm
- Enclosure height: 415 mm
- Enclosure depth: 170 mm
- Dimensions (W × H × D): 315 × 415 × 170 mm
- Housing material: Glass-fibre reinforced polyester
- Material category: Non-metallic, electrically insulating
- Door type: Solid, non-transparent door
- Locking mechanism: Security lock handle
- Protection rating: IP66
- Mechanical impact rating: IK08
- Fire behaviour: Self-extinguishing material
- Halogen content: Halogen-free
- Continuous temperature resistance: Up to 70 °C
- Mounting arrangement: Surface mounting
- Internal equipment mounting: Compatible mounting plates and frames
- Compatible mounting plate size: 350 × 250 mm
- Mounting plate accessory: AR043M03 galvanised steel mounting plate
- Mounting frame accessory: AR043D03
- Application: Electrical distribution, control and automation equipment protection
- Country of origin: Belgium
Reliable Protection for Electrical and Automation Equipment
Industrial electrical enclosures such as the ABB 831034 ARIA enclosure provide a protective housing for electrical components, helping reduce exposure to dust, moisture, accidental contact and mechanical damage. The enclosure's robust construction makes it suitable for electrical distribution systems, industrial control equipment and building services installations.
The IP66 protection rating indicates a dust-tight enclosure designed to resist powerful water jets when correctly assembled and installed. Combined with its IK08 impact resistance, this provides dependable protection for equipment installed in environments where durability and resistance to external conditions are important.
Unlike conventional sheet steel enclosures, the ABB ARIA series uses glass-fibre reinforced polyester, offering inherent corrosion resistance and electrical insulation. This makes the enclosure particularly useful where exposure to moisture, atmospheric contaminants or demanding operating conditions could affect conventional metallic housings.
The enclosure material is also self-extinguishing and halogen-free, supporting safer electrical installation practices. ABB ARIA polyester enclosures are designed to withstand continuous temperatures of up to 70 °C, although the permitted internal equipment temperatures and thermal loading must be considered when designing the complete installation.
The ARIA 43 enclosure format supports compatible mounting plates and internal mounting arrangements, allowing electrical installers and panel builders to configure the housing for their equipment. The security lock handle provides convenient access for authorised personnel while helping prevent unintended access to internal components.
Typical Applications
- Industrial electrical distribution and control panels.
- Automation and machine control equipment enclosures.
- Electrical junction and termination installations.
- Building services and electrical infrastructure systems.
- Commercial and industrial electrical installations.
- Motor control and associated electrical equipment housing.
- Instrumentation and monitoring equipment protection.
- Industrial plant and manufacturing facilities.
- Utility and infrastructure electrical installations.
- Indoor and suitably designed outdoor electrical installations.
- Electrical installations requiring corrosion-resistant polyester housings.
- OEM control panel and electrical equipment assemblies.
