Why Choose the ABB 831041 ARIA 43 Mounting Frame?

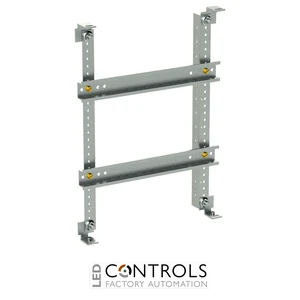

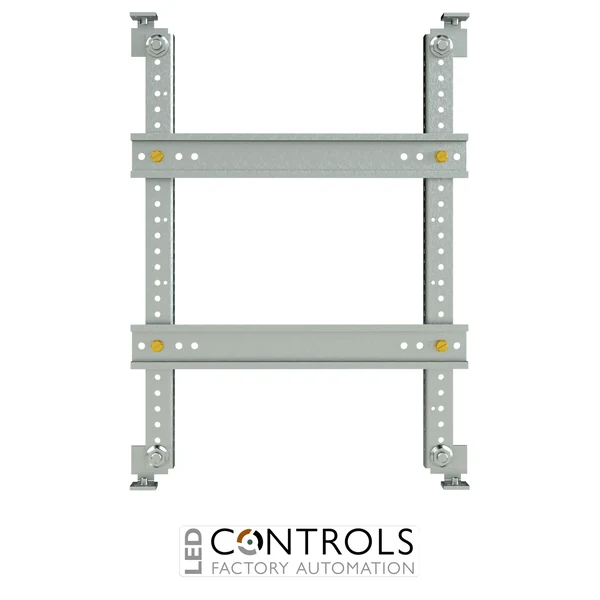

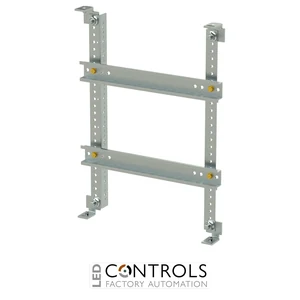

The ABB 831041 ARIA 43 Mounting Frame is a purpose-designed electrical enclosure accessory for organising modular electrical equipment inside compatible ABB ARIA 43 polyester enclosures. Identified by manufacturer type AR043D03 and ABB order code 4TBA831041C0100, this mounting frame forms part of the ABB ARIA Enclosures range and provides a practical foundation for professional electrical distribution assemblies.
Designed with two mounting rows and a total capacity of 24 modular units, the ABB AR043D03 supports organised equipment layouts within the ARIA 43 enclosure format. Each row accommodates up to 12 modular units, allowing installers to arrange compatible modular devices in a structured two-row configuration. The frame is intended for use with suitable ABB ARIA enclosure components and protective front plates, selected according to the requirements of the completed assembly.
With manufacturer-listed product dimensions of 315 mm wide × 415 mm high × 35 mm deep, the ABB 831041 is specifically associated with the ARIA 43 enclosure size. It is suitable for electrical contractors, panel builders and maintenance engineers assembling or upgrading compatible electrical distribution equipment. As a mounting accessory rather than a complete enclosure, it must be combined with the appropriate cabinet and other required components.
Key Advantages
- Dedicated ABB ARIA 43 compatibility supports correct accessory selection for the intended enclosure.
- 24-module capacity provides an organised mounting arrangement for compatible modular electrical equipment.
- Two-row configuration allows equipment to be divided across separate mounting levels.
- 12 modular units per row support straightforward layout planning.
- Purpose-designed enclosure accessory helps simplify professional electrical panel assembly.
- 315 × 415 × 35 mm manufacturer-listed dimensions assist with identifying the correct frame.
- Structured equipment arrangement helps installers organise modular distribution components.
- Compatible with the ABB ARIA accessory system for coordinated enclosure configurations.
- Suitable for new installations and refurbishment of matching ARIA 43 assemblies.
- Manufacturer-specific identification supports accurate ordering and replacement.
- Separate mounting frame format allows installers to select the enclosure and front protection components appropriate to the project.
- Part of the established ABB ARIA electrical enclosure range.
Key Features
- ABB ARIA 43 electrical enclosure mounting frame.
- Manufacturer model: 831041.
- ABB extended product type: AR043D03.
- ABB order code: 4TBA831041C0100.
- Compatible enclosure series: ABB ARIA 43.
- Mounting rows: 2.
- Total modular capacity: 24 modules.
- Modular capacity per row: 12 modules.
- Manufacturer-listed width: 315 mm.
- Manufacturer-listed height: 415 mm.
- Manufacturer-listed depth: 35 mm.
- Product net weight: 0.83 kg.
- Accessory type: Internal electrical equipment mounting frame.
- Product family: ABB ARIA universal polyester enclosures.
- Installation application: Compatible modular electrical distribution assemblies.
- Catalogue pack quantity: 1 piece.
Organised Modular Equipment Mounting for ABB ARIA 43 Enclosures
The ABB AR043D03 mounting frame is designed to support modular electrical equipment within the ABB ARIA 43 enclosure system. Its two-row, 24-module arrangement allows installers to plan equipment positions across two groups of up to 12 modules. This arrangement can be useful when configuring electrical distribution equipment that requires a structured internal layout, appropriate separation between components and convenient access for installation and maintenance.
The ARIA 43 enclosure format provides a coordinated range of cabinets and accessories for electrical installations. The ABB 831041 mounting frame is listed for this enclosure size and can be combined with suitable ARIA 43 protective cover accessories. For example, the AR043S03 front cover is a separately listed accessory with openings for modular equipment. Selection of the correct enclosure, mounting frame, cover plates and electrical devices is essential to ensure that the completed assembly is mechanically suitable and provides the required protection against accidental contact.
Because the ABB 831041 is a mounting frame rather than a complete distribution board, its 24-module capacity does not mean that it includes 24 protective devices or provides electrical protection independently. The number of devices that can be installed depends on their individual module widths and the assembly design. The finished installation must also be assessed for electrical clearances, cable routing, thermal performance, protective earthing where required and compliance with relevant standards. Installation should be undertaken by competent personnel following ABB's applicable instructions.
Typical Applications
- Internal mounting arrangements for ABB ARIA 43 electrical enclosures.
- Electrical distribution assemblies requiring two rows of modular equipment.
- Installation layouts accommodating up to 24 compatible modular units.
- Commercial and industrial electrical distribution panel assembly.
- Building services electrical control and distribution equipment.
- Modular protective device mounting within appropriately designed enclosures.
- Electrical panel refurbishment and component replacement projects.
- Custom electrical assemblies using compatible ABB ARIA accessories.
- Professional electrical installation and panel-building applications.
- Replacement of matching ABB AR043D03 mounting frames.
