Why Choose the ABB 831333 ARIA Perforated Mounting Plate?

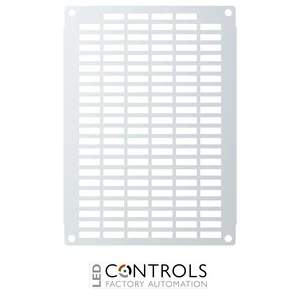

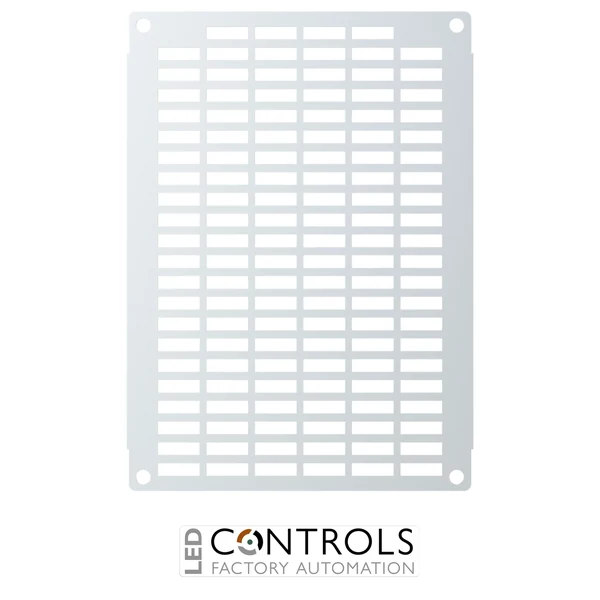

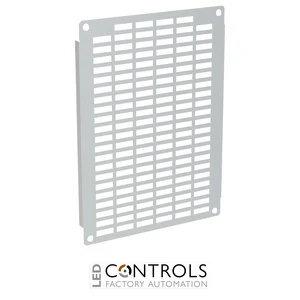

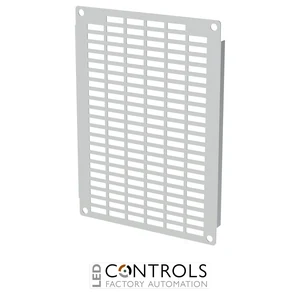

The ABB 831333 Perforated Mounting Plate is a practical internal mounting accessory for compatible electrical enclosures in the ABB Aria Enclosures range. Measuring 250 mm wide × 350 mm high × 1.5 mm thick, it provides a defined mounting surface for organising suitable electrical components within an enclosure.
Identified by ABB order code 4TBA831333C0100, the 831333 features a perforated mounting surface designed to support flexible component positioning. The perforations can help panel builders arrange compatible equipment and mounting hardware without relying solely on a completely blank mounting surface.
With its compact 250 × 350 mm format, the ABB 831333 is particularly useful for electrical control and distribution assemblies where internal space needs to be planned carefully. It is a mounting plate accessory rather than a complete enclosure, making it suitable for new panel-building projects and compatible replacement applications.
Key Advantages
- Purpose-designed perforated mounting plate for compatible ABB ARIA electrical enclosures.
- 250 × 350 mm mounting format provides a defined area for arranging suitable components.
- 1.5 mm nominal thickness offers a compact internal mounting panel profile.
- Perforated surface supports flexible component positioning with compatible fixings.
- Helps organise electrical equipment within an enclosure.
- Can simplify the planning and assembly of control panel layouts.
- Suitable for electrical panel building, maintenance and refurbishment.
- Provides an alternative to a plain, unperforated mounting plate.
- Part of the ABB Aria Enclosures accessory range.
- ABB order code 4TBA831333C0100 supports accurate specification and procurement.
Key Features
- ABB Aria Enclosures accessory.
- Model 831333.
- Perforated mounting plate (MP) configuration.
- 250 mm nominal width.
- 350 mm nominal height.
- 1.5 mm nominal thickness.
- Designed for mounting compatible electrical components.
- Perforated surface for use with suitable fixing arrangements.
- Suitable for internal electrical enclosure assembly.
- Supports organised panel layouts and equipment positioning.
- Can be used in compatible replacement and refurbishment projects.
- Manufacturer order code 4TBA831333C0100.
Flexible Component Mounting for ABB ARIA Electrical Enclosures
The ABB 831333 perforated mounting plate provides an internal surface for arranging suitable electrical equipment within a compatible enclosure. A mounting plate helps create a structured installation by giving panel builders a defined area on which to position components and associated mounting hardware.
Its perforated design can make component positioning more flexible than on a completely blank plate, provided the selected fixings and equipment are compatible with the perforation pattern. The exact hole spacing, perforation geometry and permissible fixing arrangements should be confirmed against the manufacturer's technical drawing.
The plate's 250 mm width and 350 mm height establish the nominal mounting panel size, while the 1.5 mm thickness should be considered when selecting fasteners and assessing the installation. The allowable equipment load depends on the plate material, mounting method, fixing points and the complete enclosure assembly.
As part of the ABB Aria Enclosures range, the 831333 is intended to be selected alongside compatible cabinets and mounting accessories. It does not provide electrical isolation or environmental protection by itself. All mounted equipment must be installed using suitable fixings, clearances and electrical safety practices, and compatibility should be verified for the exact enclosure configuration.
Typical Applications
- ABB ARIA electrical enclosure assembly.
- Industrial electrical control panels.
- Commercial electrical distribution cabinets.
- Internal mounting of compatible control equipment.
- Electrical panel building and component layout.
- Automation and monitoring equipment installations.
- Electrical enclosure maintenance and refurbishment.
- Replacement of compatible perforated mounting plates.
- Projects requiring a 250 × 350 mm mounting panel.
- Electrical installations requiring flexible component positioning.
- Professional cabinet assembly using suitable mounting hardware.
- Organisation of internal electrical enclosure components.
