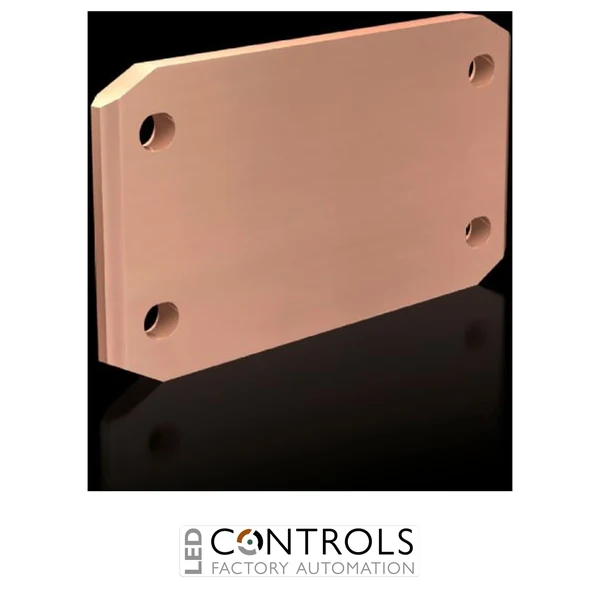

SV9686.250 Rittal LONGITUDINAL CONNECTOR H: 100 MM, FOR E-CU 2X/4X50X10 MM
Rittal SV 9686.250 longitudinal connector for E-Cu 2 x or 4 x 50 x 10 mm busbars, designed for reliable industrial power distribution connections.
£42.96
Why Choose the Rittal SV 9686.250 Longitudinal Connector?
The Rittal SV 9686.250 is a longitudinal connector designed for reliable joining of E-Cu busbars within Rittal RiLine power distribution systems. As part of the Rittal SV busbar accessory range, it provides a secure mechanical and electrical connection solution for industrial low-voltage switchgear and power distribution assemblies.
This connector enables the extension and connection of copper busbar sections while maintaining a compact and robust installation design. It is specifically designed for use with 2× or 4× 50 × 10 mm E-Cu busbar configurations, supporting efficient current distribution in demanding industrial applications.
With a height of 100 mm, the SV 9686.250 provides a practical connection solution for larger busbar assemblies where dependable mechanical fixing and electrical continuity are required.
Key Advantages
- Longitudinal connector for E-Cu busbar systems.
- Provides secure connection between copper busbar sections.
- Designed for 2×/4× 50 × 10 mm E-Cu busbars.
- Supports reliable power distribution in industrial switchgear assemblies.
- Enables scalable busbar system expansion.
- Suitable for professional Rittal power distribution installations.
Key Features
- Rittal SV 9686.250 longitudinal connector.
- For E-Cu busbar size: 2×/4× 50 × 10 mm.
- Height: 100 mm.
- Designed for longitudinal busbar connection applications.
- Provides mechanical support and electrical continuity.
- Suitable for low-voltage distribution systems.
- Compatible with Rittal RiLine power distribution solutions.
Reliable Busbar Connection for Industrial Power Distribution
The Rittal SV 9686.250 longitudinal connector provides a dependable method for connecting larger E-Cu busbar arrangements inside industrial electrical assemblies. It helps maintain stable current paths while supporting efficient enclosure layouts.
Designed for integration with Rittal power distribution systems, this accessory helps engineers and panel builders create flexible switchgear solutions with reliable mechanical connections and simplified installation.
Typical Applications
- Industrial low-voltage switchgear assemblies.
- Rittal VX enclosure power distribution systems.
- Large copper busbar connection projects.
- Electrical distribution panels.
- Industrial control cabinets.
- Power distribution infrastructure.
Technical Specifications
| Manufacturer | Rittal |
|---|---|
| Series | RiLine busbar accessories |
| Model | SV 9686.250 |
| Product type | Longitudinal connector |
| Suitable busbar | E-Cu 2×/4× 50 × 10 mm |
| Height | 100 mm |
| Application | Busbar extension and connection |
| Compatible system | Rittal RiLine / VX power distribution systems |
Frequently Asked Questions
What is the Rittal SV 9686.250 used for?
The SV 9686.250 is a longitudinal connector used to join E-Cu busbars in Rittal power distribution systems.
Which busbar size is compatible with the Rittal SV 9686.250?
The connector is designed for 2× or 4× 50 × 10 mm E-Cu busbar configurations.
What is the height of the Rittal SV 9686.250?
The longitudinal connector has a height of 100 mm.
Where is the Rittal SV 9686.250 installed?
It is typically installed inside industrial switchgear, distribution panels and Rittal enclosure power distribution assemblies.
Which Rittal systems are compatible with this connector?
The SV 9686.250 is designed for use with Rittal RiLine busbar and compatible VX enclosure systems.
