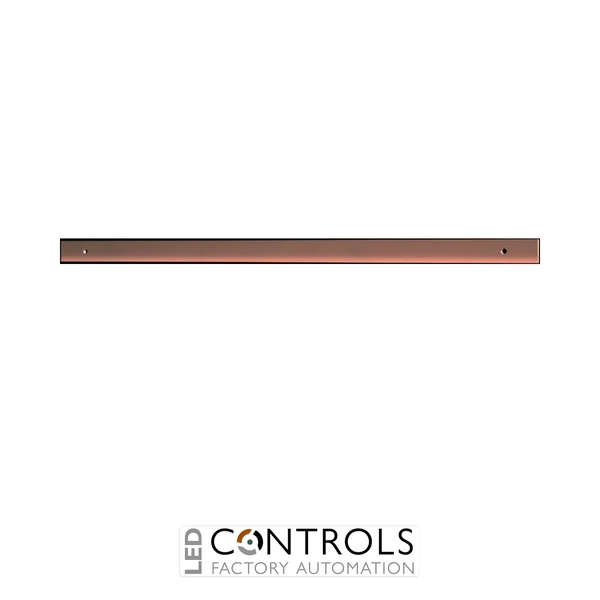

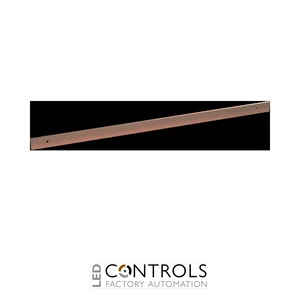

Rittal SV9684.004 slotted E-Cu F30 copper busbar with integral punchings, a 50 x 10 mm cross-section, 385 mm length and 11.5 mm hole diameter.
£59.51
The Rittal SV9684.004 is a solid electrolytic copper busbar with integral punchings, designed for professional power distribution and switchgear applications. Its pre-punched construction provides convenient connection points for compatible conductors and components, helping panel builders create organised and dependable electrical distribution assemblies.
Manufactured from high-conductivity E-Cu F30 copper, the SV9684.004 offers reliable electrical performance and mechanical strength for demanding industrial environments. Its substantial 50 × 10 mm cross-section provides a cross-sectional area of 500 mm², making it suitable for high-current distribution within correctly designed busbar systems.
The busbar measures 385 mm in length and features integrated 11.5 mm diameter holes. This practical design reduces the need for additional drilling and supports accurate, efficient installation within industrial switchboards, control panels and power distribution systems.
Copper busbars provide an efficient method of distributing electrical power within industrial switchgear and control panels. The solid E-Cu construction of the Rittal SV9684.004 helps minimise electrical resistance while offering the mechanical stability required for dependable long-term operation.
Its integral punchings help simplify component positioning and conductor connections, reducing fabrication work during panel assembly. The complete busbar system should always be designed with suitable supports, insulation, clearances, protective devices and connection hardware for the intended electrical load.
| Manufacturer | Rittal |
|---|---|
| Model | SV9684.004 |
| Article number | 9684004 |
| Product type | Slotted copper busbar |
| Design | Busbar with integral punchings |
| Material | Electrolytic copper, E-Cu F30 |
| Cross-section | 50 × 10 mm |
| Cross-sectional area | 500 mm² |
| Length | 385 mm |
| Hole diameter | 11.5 mm |
| Standard | DIN EN 13601 |
| Pack quantity | 1 piece |
| Net weight | 1.68 kg |
| Gross weight | 1.78 kg |
| Copper content | 1.68 kg per piece |
| EAN | 4028177951181 |
| Customs tariff number | 74071000 |
| ETIM classification | EC001522 |
| ECLASS classification | 27370303 |
| Approvals | DNV and Lloyd's Register |
The SV9684.004 is an electrolytic copper busbar used for distributing electrical power and creating conductor connection points within compatible industrial switchgear and panel assemblies.
The busbar measures 50 × 10 mm in cross-section and has an overall length of 385 mm.
The pre-punched connection holes have a diameter of 11.5 mm.
It is manufactured from E-Cu F30 electrolytic copper, providing excellent electrical conductivity and dependable mechanical strength.
Yes. The Rittal SV9684.004 is manufactured in accordance with DIN EN 13601 for copper and copper-alloy products used in electrical applications.
Rittal busbar components are widely used by electrical engineers, switchgear manufacturers and panel builders for dependable power distribution, efficient installation and integration into professional industrial electrical assemblies.
