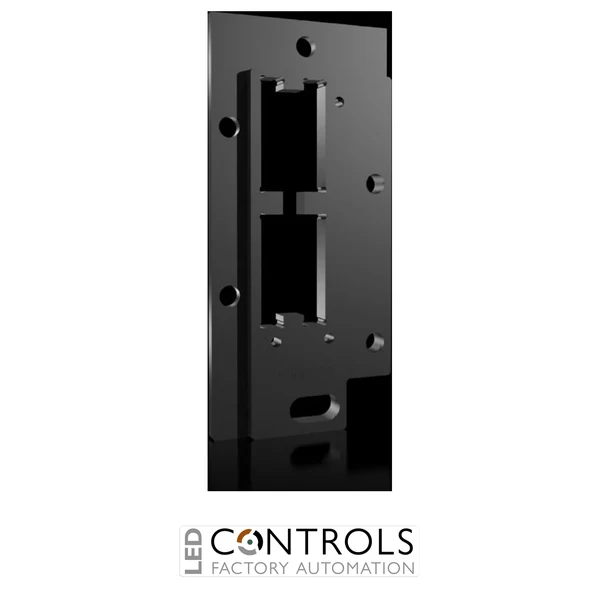

Rittal SV 9686.300 single-pole busbar support for assembling neutral or PEN conductors using up to four 50 x 10 mm copper busbars.
£69.24
The Rittal SV 9686.300 is a robust single-pole busbar support designed for assembling neutral and combined protective earth and neutral conductors within industrial power distribution systems. As part of the established Rittal SV power distribution range, it provides secure mechanical support for copper busbars installed inside compatible enclosure systems.
Manufactured from durable polyamide, the SV 9686.300 offers reliable insulation and mechanical stability in demanding electrical applications. Its fire behaviour complies with UL 94-HB, supporting dependable use inside switchgear, control panels and power distribution enclosures.
The support accommodates busbars measuring 50 × 10 mm and permits the installation of up to four sub-conductor busbars. It mounts directly onto the enclosure section and is supplied with the necessary assembly components for efficient installation.
Busbar supports provide essential mechanical stability and electrical separation within switchgear and power distribution assemblies. Correctly supporting each conductor helps maintain the required spacing, alignment and structural integrity of the busbar system.
The Rittal SV 9686.300 is specifically designed for neutral and PEN conductor arrangements. Its insulated polyamide construction and compatibility with multiple copper busbars make it suitable for building organised, dependable power distribution assemblies inside industrial enclosures.
| Phase | Single Phase |
|---|---|
| Manufacturer | Rittal |
| Series | SV Power Distribution |
| Model | SV 9686.300 |
| Article number | 9686300 |
| Product type | Busbar support |
| Conductor type | Neutral or PEN conductor |
| Number of poles | 1 |
| Compatible busbar size | 50 × 10 mm |
| Maximum busbar capacity | 4 × 50 × 10 mm |
| Material | Polyamide |
| Fire behaviour | UL 94-HB |
| Colour | Similar to RAL 9005 |
| Mounting location | Enclosure section |
| Pack quantity | 2 pieces |
| Net weight | 0.39 kg |
| Gross weight | 0.421 kg |
| EAN | 4028177935983 |
| Customs tariff number | 85469010 |
| ETIM classification | EC001166 |
| ECLASS classification | 27400607 |
The Rittal SV 9686.300 is used to support and secure single-pole neutral or combined protective earth and neutral busbar conductors inside electrical enclosures.
The support is designed for copper busbars measuring 50 × 10 mm.
It can accommodate a maximum of four 50 × 10 mm sub-conductor busbars.
The support is manufactured from durable polyamide, providing electrical insulation and mechanical stability.
The Rittal SV 9686.300 is supplied in a pack containing two busbar supports, including the required assembly components.
Rittal SV power distribution components are widely selected by switchgear manufacturers, electrical engineers and panel builders for dependable conductor support, organised installations and reliable integration within industrial enclosure systems.
