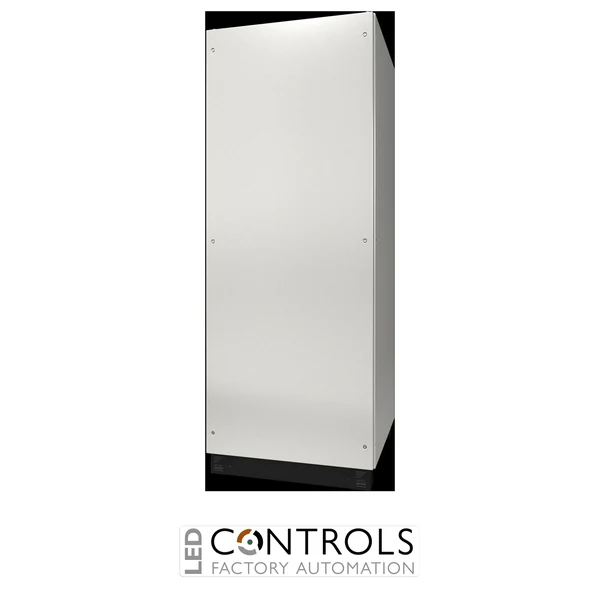

Rittal VX IT 5307.157 pre-configured 40 U network and server rack with a 19-inch swing frame, glazed aluminium front door, 100 mm base/plinth and 800 x 2100 x 800 mm overall dimensions.
£1,498.20
The Rittal VX IT 5307.157 is a pre-configured VX IT network and server rack with a 482.6 mm (19-inch) swing frame, designed for professional server, networking and telecommunications installations. Its closed enclosure design supports direct climate control tailored to the individual rack, while the integrated swing frame provides convenient access to the rear of installed 19-inch components.
The enclosure provides 40 U of usable installation height within an 800 mm wide × 2000 mm high × 800 mm deep cabinet. A 100 mm VX base/plinth increases the overall installed height to 2100 mm, while the large 19-inch swing frame opens through approximately 130° to simplify equipment installation, cabling and maintenance.
The VX IT 5307.157 combines a one-piece glazed aluminium front door with a solid rear panel, removable side panels and a multi-piece roof with cable entry facilities. Finished predominantly in RAL 7035 with RAL 9005 interior and base components, it offers a robust and professional enclosure solution with a static load capacity of 3500 N.
The integrated 19-inch swing frame is a key advantage of the Rittal VX IT 5307.157. By allowing the complete equipment mounting level to swing forwards through approximately 130°, technicians can gain direct access to rear connectors, cabling and installed components without requiring unrestricted access behind the enclosure.
This configuration is particularly useful for network, telecommunications and server installations where regular maintenance or cable changes are required. The glazed front door, removable side panels, cable-entry roof and integrated base/plinth further support organised installation and servicing, while the closed cabinet format enables climate control to be tailored directly to the enclosure.
| HS Code | 94032080 |
|---|---|
| Manufacturer | Rittal |
| Series | VX IT |
| Model | VX IT 5307.157 |
| Part number | 5307.157 |
| Product type | Network/server rack |
| Design | Pre-configured with swing frame |
| Installation height | 40 U |
| Width | 800 mm |
| Enclosure height | 2000 mm |
| Base/plinth height | 100 mm |
| Overall height including base/plinth | 2100 mm |
| Depth | 800 mm |
| Rack format | 482.6 mm (19-inch) |
| Mounting design | Swing frame |
| Swing-frame opening angle | 130° |
| Free mounting space to 19-inch level, front/rear | 150/520 mm |
| Load capacity | 3500 N |
| Impact resistance | IK08 |
| Basic material | Sheet steel |
| Front door | Aluminium with 3 mm single-pane safety glass |
| Front door opening | 180° |
| Rear closure | Solid rear panel |
| General colour | RAL 7035 |
| Net weight | 138 kg |
| Gross weight | 150 kg |
| Pack quantity | 1 piece |
The VX IT 5307.157 is a 40 U network and server rack designed to house compatible 19-inch IT, networking and telecommunications equipment while providing convenient rear access through an integrated swing frame.
The enclosure measures 800 mm wide × 2000 mm high × 800 mm deep, with a 100 mm base/plinth increasing the overall installed height to 2100 mm.
The enclosure provides 40 U of usable installation height within its fitted 482.6 mm (19-inch) swing frame.
The 19-inch swing frame opens through approximately 130°, allowing direct access to the rear of installed components for cabling, inspection and maintenance.
The enclosure has a specified static load capacity of 3500 N for compatible equipment installed within the rack.
Rittal VX IT network and server racks provide a modular platform for professional IT infrastructure, combining secure 19-inch equipment installation with practical cable management, maintenance access and climate-control integration.
