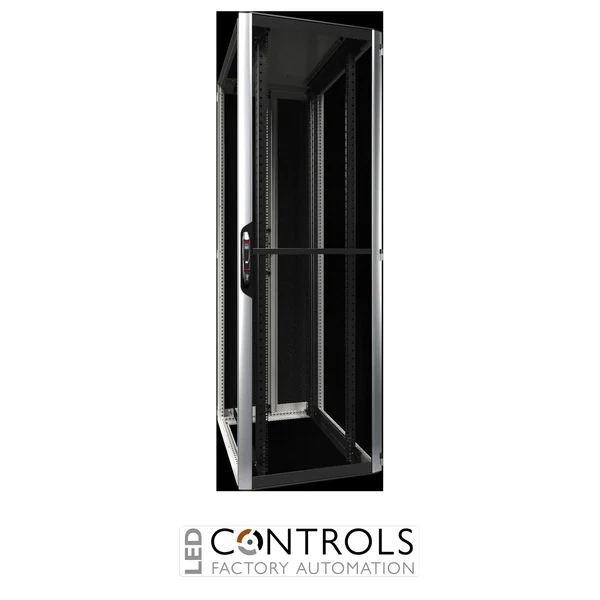

Rittal VX IT 5315.818 Dynamic vented 47 U network and server rack with depth-variable front and rear 19-inch mounting angles, 600 x 2200 x 1200 mm dimensions and an 18,000 N load capacity.
£1,595.80
The Rittal VX IT 5315.818 is a professional vented 47 U network and server rack featuring dynamic 482.6 mm (19-inch) mounting angles for flexible equipment installation. Designed for room-level climate control, it provides a robust infrastructure platform for servers, storage systems, network hardware and telecommunications equipment in demanding data centre environments.
With dimensions of 600 mm wide × 2200 mm high × 1200 mm deep, the enclosure combines a compact 600 mm footprint with substantial depth for modern server hardware, cabling and power distribution. Dynamic 19-inch mounting angles are installed at the front and rear, with a factory-set distance of 725 mm between the mounting levels and depth-variable positioning for adaptable rack configuration.
The VX IT 5315.818 incorporates a vented aluminium/sheet-steel front door and vertically divided vented sheet-steel rear door, each providing approximately 85% perforated surface area for effective front-to-rear airflow. A substantial 18,000 N load capacity, multi-piece cable-entry roof and RAL 7035 enclosure finish make it well suited to high-density professional IT infrastructure.
The dynamic mounting system is a key feature of the Rittal VX IT 5315.818. Its depth-variable front and rear 19-inch mounting angles allow the internal equipment levels to be adapted to different server, network and infrastructure requirements, providing greater flexibility when configuring the enclosure for changing hardware platforms.
Thermal management is supported by highly perforated front and rear doors that promote efficient front-to-rear airflow when the rack is used with suitable room climate control. Combined with the generous 1200 mm depth and 18,000 N load capacity, the enclosure provides the space and structural strength needed for densely populated server, storage and network installations.
| HS Code | 94032080 |
|---|---|
| Manufacturer | Rittal |
| Series | VX IT |
| Model | VX IT 5315.818 |
| Part number | 5315.818 |
| Product type | Vented network/server rack |
| Design | Dynamic |
| Installation height | 47 U |
| Width | 600 mm |
| Height | 2200 mm |
| Depth | 1200 mm |
| Rack format | 482.6 mm (19-inch) |
| Mounting angle design | Dynamic, depth-variable |
| 19-inch mounting levels | Front and rear |
| Distance between mounting levels as supplied | 725 mm |
| Free mounting space to 19-inch level, front/rear | 150/325 mm |
| Load capacity | 18,000 N |
| Maximum static load to UL 2416 | 15,000 N |
| Basic material | Sheet steel |
| Additional material | Aluminium |
| Front door | Aluminium/sheet steel, vented, one-piece |
| Rear door | Sheet steel, vented, vertically divided |
| Door opening angle | 180° |
| Roof | Multi-piece with front and rear corner cable entry |
| Base | Open |
| General colour | RAL 7035 |
| Net weight | 94 kg |
| Gross weight | 95.1 kg |
| Pack quantity | 1 piece |
The VX IT 5315.818 is a vented 47 U network and server rack designed for installing servers, storage systems, network equipment and telecommunications hardware in professional IT environments.
The enclosure measures 600 mm wide × 2200 mm high × 1200 mm deep and provides 47 U of usable 19-inch installation height.
The Dynamic configuration uses depth-variable 482.6 mm (19-inch) mounting angles, allowing the mounting levels to be adapted to suit different equipment and installation requirements.
The enclosure features vented front and rear doors with approximately 85% perforated surface area, supporting high front-to-rear airflow when used with suitable room-level climate control.
The VX IT 5315.818 has a specified 18,000 N load capacity, with a maximum static enclosure load of 15,000 N to UL 2416.
Rittal VX IT Dynamic network and server racks provide a flexible, high-capacity infrastructure platform for professional data centres and server rooms, combining adjustable 19-inch equipment mounting with high airflow, robust construction and structured cable management.
