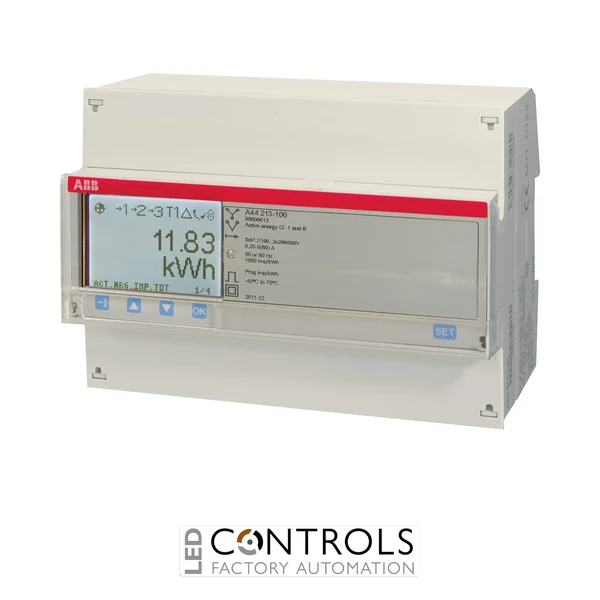

Why Choose the ABB A44 213-100 Three-Phase Energy Meter?
The ABB A44 213-100 is a high-performance transformer-connected three-phase electricity meter designed for accurate monitoring of electrical energy in commercial, industrial and infrastructure installations. As part of the advanced ABB A44 DIN rail mounted meter range, it provides reliable measurement of active and reactive energy through current and voltage transformer connections.
This Bronze functionality-level meter supports measurement of active and reactive energy for both import and export, together with a comprehensive range of electrical instrument values. Integrated M-Bus and infrared communication interfaces simplify connection to energy-management and building-automation systems, while a configurable digital output can be used for energy pulses or alarm signalling.
With a 1 A rated current and maximum current of 6 A, configurable CT/VT transformer ratios and a three-phase voltage range suitable for 3- and 4-wire networks, the A44 213-100 is designed for indirect metering applications. Its compact 7-module DIN rail format, backlit digital display and MID verification make it well suited to professional switchboards and energy-monitoring installations.
Key Advantages
- Professional three-phase transformer-connected energy meter for indirect metering.
- Measures active and reactive energy in both import and export directions.
- 1 A rated current with 6 A maximum current for CT-connected installations.
- Integrated M-Bus communication for remote meter reading and energy management.
- Configurable CT and VT ratios provide flexibility for different electrical installations.
- MID verified and IEC approved for dependable energy measurement.
Key Features
- ABB A44 three-phase energy meter series.
- Transformer-connected CTVT metering for 3- and 4-wire networks.
- 1 A nominal current and 6 A maximum current.
- Class B active-energy accuracy and Class 2 reactive-energy measurement.
- Measurement of active and reactive energy for import and export.
- Integrated M-Bus and infrared communication interfaces.
- Configurable digital output for pulse or alarm operation.
- Backlit digital display with up to seven counter positions.
- Instrument values include power, current, voltage, frequency, power factor and apparent power.
- Compact 7 DIN-module mounting width.
Accurate Three-Phase Energy Monitoring
Transformer-connected energy meters such as the ABB A44 213-100 enable electrical consumption to be measured in installations where current and voltage transformers are used to scale the primary electrical quantities to levels suitable for the meter. Configurable transformer ratios allow the displayed and communicated values to represent the actual primary-system energy usage.
The A44 series combines energy metering with detailed electrical instrument values and communications capability. M-Bus connectivity enables meter information to be collected remotely by compatible building-management and energy-monitoring systems, while the integrated infrared interface provides additional communication possibilities.
Typical Applications
- Industrial three-phase energy monitoring.
- Commercial building electrical distribution systems.
- Switchboards and electrical control panels.
- CT/VT-connected energy metering installations.
- Building-management and energy-management systems.
- Sub-metering and energy consumption monitoring.
