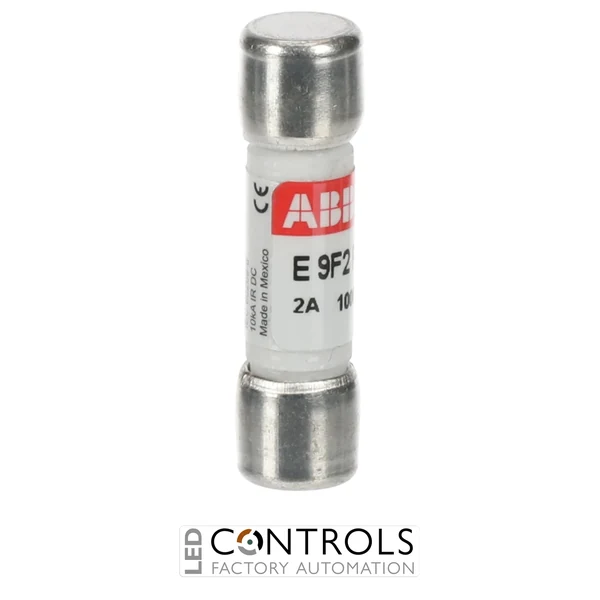

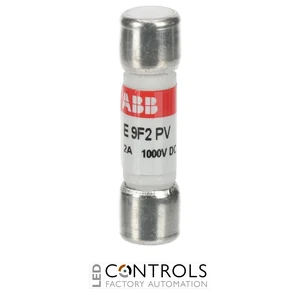

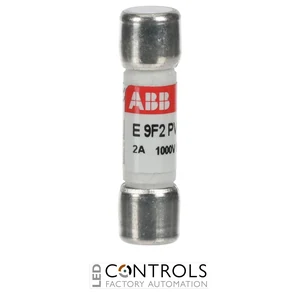

ABB E 9F2 PV is a 2 A 1000 V DC gPV cylindrical photovoltaic fuse in a 10.3 x 38 mm format designed for overcurrent protection of solar PV strings, inverters and associated DC equipment.
£16.52
The ABB E 9F2 PV is a high-performance gPV cylindrical fuse specifically designed to protect direct-current photovoltaic circuits against overcurrent conditions. As part of the ABB E 9F PV series, it is engineered for solar PV installations where reliable protection of strings, inverters and associated equipment is essential.
Designed specifically for photovoltaic applications, the E 9F2 PV combines a 2 A rated current with a 1000 V DC rated voltage. Its gPV operating class is intended for the protection requirements of photovoltaic source and array circuits, helping isolate electrical faults before they can damage downstream PV equipment.
The compact 10.3 × 38 mm cylindrical format enables installation in compatible ABB E 90 PV fuseholders and fuse disconnectors. With compliance to IEC 60269-6 requirements for photovoltaic fuse-links, the E 9F2 PV provides a purpose-designed protection solution for modern solar power installations.
Photovoltaic fuse-links are designed to interrupt damaging overcurrents within DC solar circuits. The ABB E 9F2 PV is specifically engineered for photovoltaic applications up to 1000 V DC, providing appropriately coordinated protection when installed in a correctly designed solar electrical system.
The ABB E 9F PV range covers rated currents from 1–30 A in the compact 10.3 × 38 mm format. This range enables system designers to select a fuse appropriate to individual PV circuit requirements while maintaining the gPV characteristics required for solar photovoltaic protection.
Tick the specs you need, then view products that match.
| Voltage | 1000 V | |
|---|---|---|
| Current | 2 A | |
| Fuse Class | gPV | |
| Fuse Type | PV (gPV) | |
| Device Type | Fuse link | |
| Series | E 9F PV | |
| ABB order code | 2CSM213466R1801 | |
| Product type | Photovoltaic cylindrical fuse | |
| Utilisation category | gPV | |
| Rated current | 2 A | |
| Rated voltage | 1000 V DC | |
| Fuse dimensions | 10.3 × 38 mm | |
| Minimum breaking capability | 1.3 × In | |
| Standard | IEC 60269-6 | |
| Weight | approx. 7 g | |
| Pack quantity | 10 pieces | |
| EAN | 8012542134667 |
The E 9F2 PV is a gPV photovoltaic fuse designed to protect DC solar circuits, including PV strings, inverters and associated equipment, against overcurrent conditions.
The E 9F2 PV has a rated current of 2 A.
The fuse is rated for photovoltaic systems operating at up to 1000 V DC.
The E 9F2 PV uses the standard cylindrical 10.3 × 38 mm fuse format.
The E 9F PV series is designed in accordance with IEC 60269-6, which specifies supplementary requirements for fuse-links used to protect solar photovoltaic energy systems.
ABB E 9F PV gPV cylindrical fuses provide purpose-designed overcurrent protection for photovoltaic strings, inverters and associated DC equipment in solar power installations.
