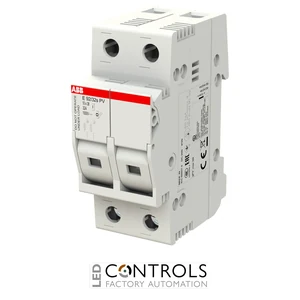

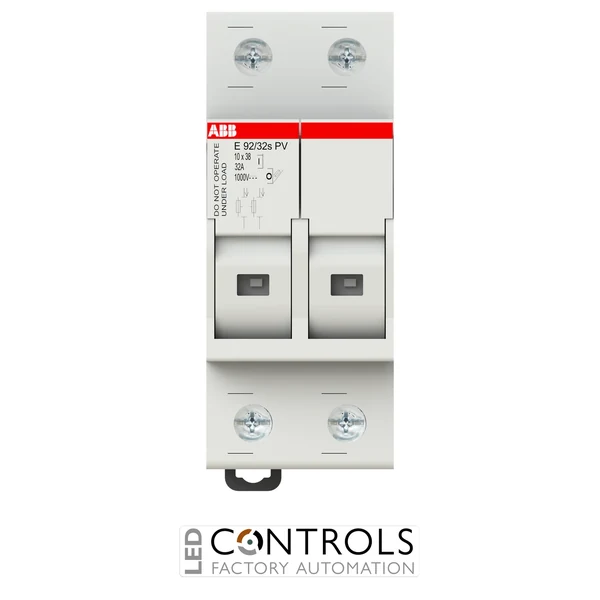

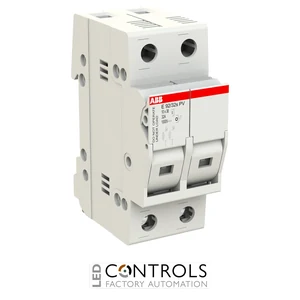

ABB E9232SPV E 92/32s PV is a 2-pole 32 A 1000 V DC photovoltaic fuseholder for 10.3 x 38 mm cylindrical PV fuse links with an integrated blown-fuse indicator.
£36.04
The ABB E9232SPV, designated E 92/32s PV, is a 2-pole 32 A photovoltaic fuseholder designed for overcurrent and short-circuit protection in DC solar installations when fitted with suitable fuse links. Identified by ABB order code 2CSM256913R1801, it forms part of the ABB E 90 PV range of modular fuse disconnectors.
Designed for 10.3 × 38 mm PV cylindrical fuse links, the E9232SPV supports operating voltages up to 1000 V DC. Its two-pole configuration enables both conductors of a photovoltaic DC circuit to be accommodated within a compact DIN-rail-mounted device.
The “s” version incorporates a blown-fuse indicator, providing convenient visual identification of fuse status and simplifying fault finding during maintenance. With a DC-20B utilisation category and two-module format, the E9232SPV provides a practical protection and isolation solution for photovoltaic strings, combiner boxes and DC distribution equipment.
Photovoltaic arrays can produce significant DC fault currents, making correctly coordinated fuse protection important for protecting strings, conductors and associated equipment. The ABB E 90 PV range is specifically designed for photovoltaic systems and accommodates cylindrical PV fuse links in a compact modular enclosure.
The E9232SPV provides two-pole accommodation for 10.3 × 38 mm fuse links at system voltages up to 1000 V DC. Its integrated blown-fuse indicator makes it easier to identify an operated fuse, while DIN-rail mounting supports straightforward integration into PV combiner boxes and DC distribution panels.
Tick the specs you need, then view products that match.
| Current | 32 A | |
|---|---|---|
| Device Type | Fuse base / holder | |
| Poles | 2-pole | |
| Fuse Type | Cylindrical | |
| Series | E 90 PV | |
| SKU | E9232SPV | |
| ABB order code | 2CSM256913R1801 | |
| Product type | PV fuseholder / fuse disconnector | |
| Application | Photovoltaic DC circuits | |
| Number of poles | 2 | |
| Number of protected poles | 2 | |
| Rated current | 32 A | |
| Rated operational voltage | 1000 V DC | |
| Fuse size | 10.3 × 38 mm | |
| Fuse type | PV cylindrical fuse link | |
| Utilisation category | DC-20B | |
| Blown-fuse indicator | Yes | |
| Mounting | DIN rail | |
| Modular width | 2 modules | |
| Product weight | 0.124 kg | |
| Pack quantity | 3 pcs | |
| EAN | 8012542569138 |
The ABB E9232SPV is a 2-pole photovoltaic fuseholder designed to accommodate suitable fuse links for overcurrent and short-circuit protection in PV DC applications.
The ABB E9232SPV has a rated current of 32 A.
The ABB E9232SPV has a rated operational voltage of 1000 V DC.
The E9232SPV is designed for 10.3 × 38 mm cylindrical PV fuse links.
Yes. The E 92/32s PV version incorporates a blown-fuse indicator that provides visual indication of fuse status for easier inspection and maintenance.
ABB E 90 PV fuseholders provide compact DIN-rail-mounted fuse protection for photovoltaic DC systems, combining high-voltage capability, standard cylindrical PV fuse compatibility and practical status indication for solar installations.
