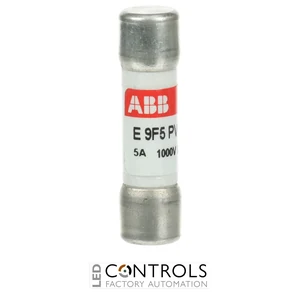

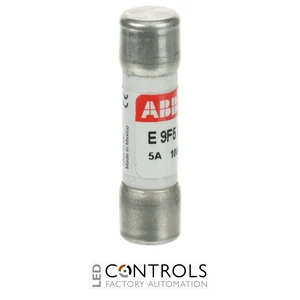

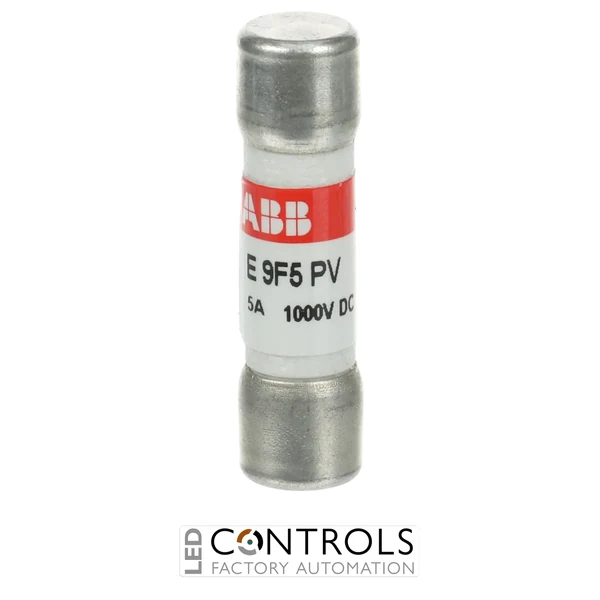

ABB E9F5PV E 9F5 PV is a 5 A 1000 V DC gPV cylindrical photovoltaic fuse link in a 10.3 × 38 mm format with a 50 kA breaking capacity, designed for overcurrent protection of solar PV strings, inverters and associated DC equipment.
£16.52
The ABB E9F5PV (E 9F5 PV) is a high-performance gPV cylindrical fuse link specifically designed for overcurrent protection in photovoltaic DC installations. As part of the ABB E 9F PV range, it provides dependable protection for solar PV strings, inverters and surge protection devices where reliable interruption of DC fault currents is essential.
With a rated current of 5 A and rated voltage of 1000 V DC, the E 9F5 PV is designed for the demanding electrical characteristics of photovoltaic systems. Its gPV utilisation category provides full-range fuse protection specifically intended for solar photovoltaic applications, while the cylindrical 10.3 × 38 mm format enables installation in compatible PV fuseholders and fuse disconnectors.
The E 9F5 PV offers a high 50 kA breaking capacity and has a power loss of approximately 1.12 W at rated current. Designed for photovoltaic circuit protection in accordance with IEC 60269-6, it provides a compact and purpose-built solution for protecting DC circuits against potentially damaging overcurrents.
Photovoltaic arrays can generate sustained DC fault currents that require protection devices specifically designed for solar installations. gPV fuse links are engineered to interrupt overcurrents throughout their operating range, helping protect PV conductors, modules and associated electrical equipment against damage caused by reverse currents and other fault conditions.
The ABB E 9F PV series is specifically designed for photovoltaic applications. Its 1000 V DC rating and compact cylindrical construction make the E 9F5 PV suitable for installation in compatible fuseholders protecting individual PV strings and associated inverter and surge protection circuits.
Tick the specs you need, then view products that match.
| Voltage | 1000 V | |
|---|---|---|
| Device Type | Fuse link | |
| Current | 5 A | |
| Fuse Class | gPV | |
| Fuse Type | PV (gPV) | |
| Series | E 9F PV | |
| SKU | E9F5PV | |
| ABB order code | 2CSM213496R1801 | |
| EAN | 8012542134961 | |
| Product group | Protection & Control | |
| Product type | Photovoltaic cylindrical fuse link | |
| Utilisation category | gPV | |
| Rated current | 5 A | |
| Rated voltage | 1000 V DC | |
| Breaking capacity | 50 kA | |
| Power loss at rated current | 1.12 W | |
| Fuse dimensions | 10.3 × 38 mm | |
| Standard | IEC 60269-6 | |
| Weight | approx. 7 g | |
| Pack quantity | 10 pieces |
The E 9F5 PV is a gPV cylindrical fuse link specifically designed to provide overcurrent protection for DC circuits in photovoltaic installations, including PV strings, inverters and associated protection equipment.
The E 9F5 PV has a rated current of 5 A.
The fuse is rated for photovoltaic circuits operating at up to 1000 V DC.
The E 9F5 PV has a breaking capacity of 50 kA, providing high fault-current interruption capability for photovoltaic DC applications.
The E 9F5 PV uses a cylindrical 10.3 × 38 mm format for installation in compatible photovoltaic fuseholders and fuse disconnectors.
ABB E 9F PV gPV cylindrical fuses provide purpose-designed overcurrent protection for photovoltaic strings, inverters and associated DC equipment, helping deliver dependable circuit protection in commercial and industrial solar installations.
