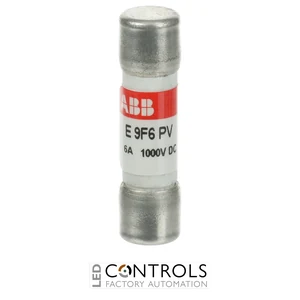

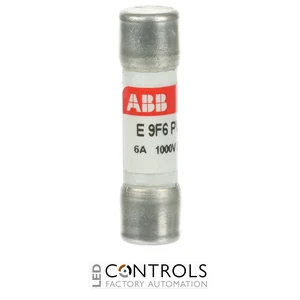

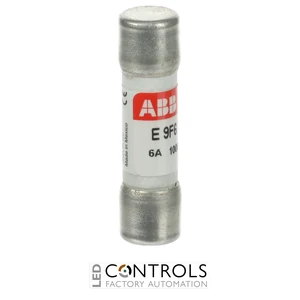

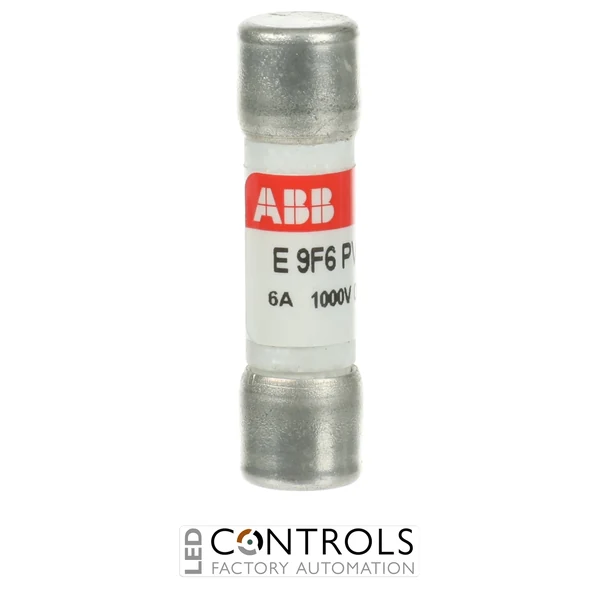

ABB E9F6PV E 9F6 PV is a 6 A 1000 V DC gPV cylindrical fuse link in 10.3 x 38 mm format designed for overcurrent protection of photovoltaic strings and associated solar DC equipment.
£16.52
The ABB E9F6PV (E 9F6 PV) is a high-performance gPV cylindrical fuse link specifically designed to protect direct-current photovoltaic circuits against overcurrent conditions. Part of the ABB E 9F PV photovoltaic fuse range, it provides dedicated protection for PV strings and associated equipment in solar power installations.
With a rated current of 6 A and a rated voltage of 1000 V DC, the E 9F6 PV is designed for the demanding electrical characteristics of photovoltaic systems. Its 10.3 × 38 mm cylindrical format is compatible with suitable ABB E 90 PV fuseholders and provides a compact solution for string-level DC circuit protection.
The E 9F PV series is designed in accordance with IEC 60269-6 requirements for fuse links used in solar photovoltaic energy systems. With a breaking capacity of 50 kA, the E9F6PV provides dependable interruption of fault currents and is suitable for protecting photovoltaic strings, inverters and surge protection devices.
Photovoltaic arrays can generate reverse and fault currents capable of damaging modules, conductors and associated DC equipment. A correctly selected gPV fuse is specifically designed to interrupt these overcurrents, helping isolate faulty circuits and protect valuable photovoltaic system components.
The ABB E 9F PV range is engineered specifically for photovoltaic applications. The E9F6PV combines a 1000 V DC voltage rating with a 50 kA breaking capacity and compact cylindrical dimensions, making it suitable for coordinated protection of PV strings, inverters and surge arresters in modern solar installations.
Tick the specs you need, then view products that match.
| Voltage | 1000 V | |
|---|---|---|
| Device Type | Fuse link | |
| Current | 6 A | |
| Fuse Class | gPV | |
| Fuse Type | PV (gPV) | |
| Fuse Size | 10x38 mm | |
| Series | E 9F PV | |
| ABB order code | 2CSM213506R1801 | |
| Product type | Photovoltaic cylindrical fuse link | |
| Utilisation category | gPV | |
| Rated current | 6 A | |
| Rated voltage | 1000 V DC | |
| Fuse size | 10.3 × 38 mm | |
| Breaking capacity | 50 kA | |
| Power loss at rated current | 1.05 W | |
| Application | Photovoltaic DC circuit protection | |
| Reference standard | IEC 60269-6 | |
| Weight | 0.007 kg | |
| Pack quantity | 10 pieces | |
| EAN / GTIN | 8012542135067 |
The ABB E9F6PV is a gPV cylindrical fuse link specifically designed to provide overcurrent protection for photovoltaic strings and associated DC equipment in solar power systems.
The E 9F6 PV has a rated current of 6 A.
The E9F6PV is rated for photovoltaic circuits operating at up to 1000 V DC.
The E 9F6 PV is a cylindrical fuse measuring 10.3 × 38 mm, designed for installation in compatible photovoltaic fuseholders.
The ABB E 9F PV range is designed for protection of photovoltaic strings, inverters and surge protection devices and complies with IEC 60269-6 requirements for solar photovoltaic fuse links.
ABB E 9F PV cylindrical fuses provide dedicated overcurrent protection for photovoltaic DC circuits, combining gPV performance, high DC voltage capability and compact dimensions for reliable protection of solar strings and associated equipment.
