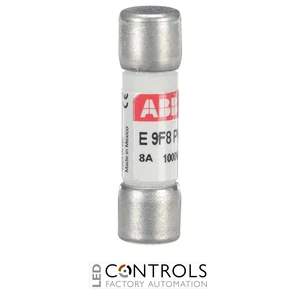

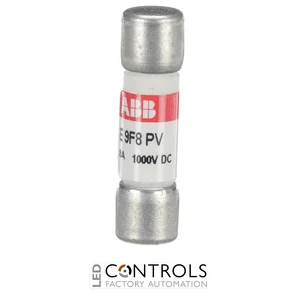

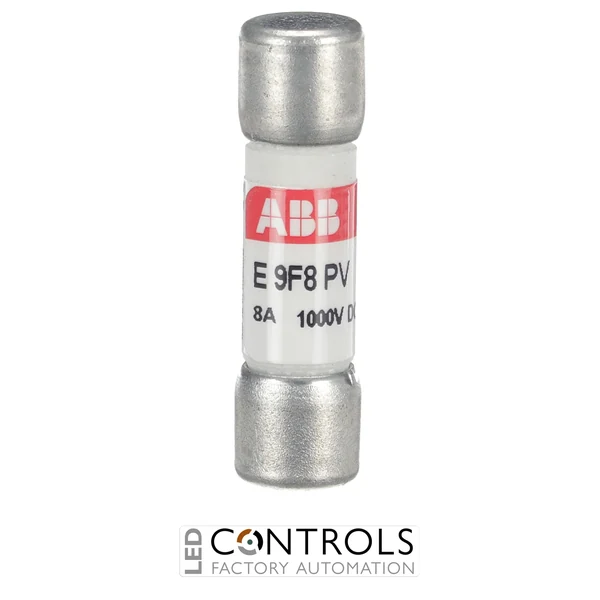

ABB E9F8PV E 9F8 PV is an 8 A 1000 V DC gPV cylindrical fuse link in 10.3 x 38 mm format designed for overcurrent protection of photovoltaic strings and associated solar DC equipment.
£16.52
The ABB E9F8PV (E 9F8 PV) is a compact gPV cylindrical fuse link specifically designed for overcurrent protection in direct-current photovoltaic installations. Part of the ABB E 9F PV photovoltaic fuse range, it is engineered to protect PV strings, inverters and surge protection devices against damaging fault currents.
With a rated current of 8 A and a rated voltage of 1000 V DC, the E 9F8 PV is suitable for high-voltage solar DC circuits. Its standard 10.3 × 38 mm cylindrical format enables installation in compatible photovoltaic fuseholders, including ABB E 90 PV devices.
The E 9F PV range is designed specifically for photovoltaic applications in accordance with IEC 60269-6. The E9F8PV provides a 10 kA breaking capacity and, for the 8–30 A models in this series, a minimum breaking capability of 2.0 × In, providing dedicated protection for modern solar generation systems.
Photovoltaic strings can be exposed to reverse currents and other fault conditions that may damage solar modules, cables and connected DC equipment. A correctly selected gPV fuse link is designed to interrupt these overcurrents, helping isolate the affected circuit and reduce the risk of damage elsewhere in the photovoltaic installation.
The ABB E 9F PV series is specifically engineered for DC photovoltaic protection. Combining a 1000 V DC rating, 10 kA breaking capacity and compact cylindrical construction, the E9F8PV provides dedicated protection for PV strings and associated equipment while integrating easily with compatible solar fuseholders.
Tick the specs you need, then view products that match.
| Voltage | 1000 V | |
|---|---|---|
| Device Type | Fuse link | |
| Current | 8 A | |
| Fuse Class | gPV | |
| Fuse Type | PV (gPV) | |
| Fuse Size | 10x38 mm | |
| Series | E 9F PV | |
| ABB order code | 2CSM213526R1801 | |
| Product type | Photovoltaic cylindrical fuse link | |
| Utilisation category | gPV | |
| Rated current | 8 A | |
| Rated voltage | 1000 V DC | |
| Fuse size | 10.3 × 38 mm | |
| Breaking capacity | 10 kA | |
| Minimum breaking capability | 2.0 × In | |
| Application | Photovoltaic DC circuit protection | |
| Reference standard | IEC 60269-6 | |
| Weight | 7 g | |
| Pack quantity | 10 pieces | |
| EAN / GTIN | 8012542135268 |
The ABB E9F8PV is a gPV cylindrical fuse link specifically designed to protect photovoltaic strings and associated DC equipment against overcurrent conditions.
The E 9F8 PV has a rated current of 8 A.
The E9F8PV is rated for photovoltaic circuits operating at up to 1000 V DC.
The E 9F8 PV has a cylindrical 10.3 × 38 mm format for installation in compatible photovoltaic fuseholders.
The E9F8PV has a specified breaking capacity of 10 kA and is designed in accordance with IEC 60269-6 for photovoltaic fuse-link applications.
ABB E 9F PV cylindrical fuses provide dedicated overcurrent protection for photovoltaic DC installations, combining gPV characteristics, high DC voltage capability and compact dimensions for dependable protection of solar strings and associated equipment.
