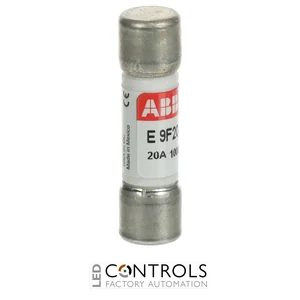

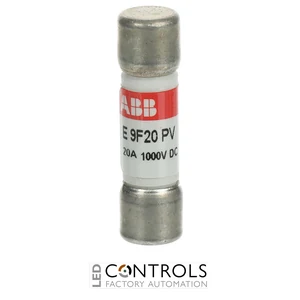

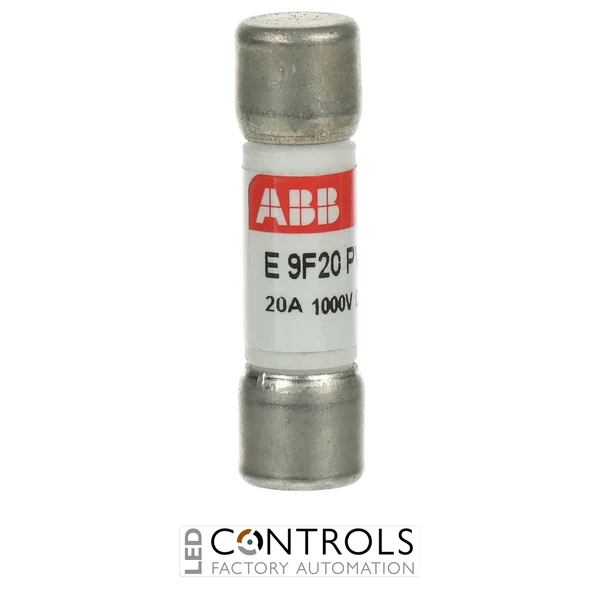

ABB E9F20PV E 9F20 PV is a 20 A 1000 V DC gPV cylindrical fuse link in 10.3 x 38 mm format with a 10 kA breaking capacity for photovoltaic string and DC circuit protection.
£16.52
The ABB E9F20PV (E 9F20 PV) is a compact gPV cylindrical fuse link specifically designed for overcurrent protection in direct-current photovoltaic installations. Part of the ABB E 9F PV photovoltaic fuse range, it provides dedicated protection for PV strings, inverters and surge arresters in solar power systems.
With a rated current of 20 A and a rated operational voltage of 1000 V DC, the E 9F20 PV is engineered for the demanding electrical characteristics of photovoltaic circuits. Its standard 10.3 × 38 mm cylindrical format enables compact installation in compatible PV fuseholders and makes it particularly suitable for string combiner boxes and DC distribution assemblies.
The E9F20PV provides a 10 kA breaking capacity and, as a 20 A model within the 8–30 A E 9F PV range, has a minimum breaking capability of 2.0 × In. Designed in accordance with IEC 60269-6, it provides reliable photovoltaic circuit protection in residential, commercial and industrial solar installations.
Photovoltaic strings can be exposed to reverse currents and fault conditions capable of damaging solar modules, conductors and connected DC equipment. A correctly selected gPV fuse link is designed to interrupt these overcurrents, isolating the affected circuit and helping protect the wider photovoltaic installation.
The ABB E 9F PV range is engineered specifically for photovoltaic applications. The E9F20PV combines a 20 A current rating, 1000 V DC capability and 10 kA breaking capacity in a compact cylindrical package, providing dedicated protection for PV strings, inverters and surge arresters.
Tick the specs you need, then view products that match.
| Current | 20 A | |
|---|---|---|
| Fuse Type | Cylindrical | |
| Device Type | Fuse link | |
| Series | E 9F PV | |
| ABB order code | 2CSM213566R1801 | |
| Product type | Photovoltaic cylindrical fuse link | |
| Fuse classification | gPV | |
| Rated current | 20 A | |
| Rated operational voltage | 1000 V DC | |
| Breaking capacity | 10 kA | |
| Minimum breaking capability | 2.0 × In | |
| Fuse size | 10.3 × 38 mm | |
| Application | Photovoltaic DC circuit protection | |
| Reference standard | IEC 60269-6 | |
| Weight | 7 g | |
| Package quantity | 10 pieces | |
| EAN / GTIN | 8012542135661 |
The ABB E9F20PV is a gPV cylindrical fuse link specifically designed to provide overcurrent protection for photovoltaic strings, inverters and associated DC equipment in solar power systems.
The E 9F20 PV has a rated current of 20 A.
The E9F20PV has a rated operational voltage of 1000 V DC for photovoltaic applications.
The E 9F20 PV is a cylindrical fuse link measuring 10.3 × 38 mm, allowing compact installation in compatible photovoltaic fuseholders.
The E9F20PV has a breaking capacity of 10 kA and a minimum breaking capability of 2.0 × In, with the E 9F PV range designed in accordance with IEC 60269-6 for photovoltaic applications.
ABB E 9F PV cylindrical fuse links provide dedicated overcurrent protection for photovoltaic DC installations, combining gPV characteristics, high DC voltage capability and compact dimensions for reliable protection of solar strings and associated equipment.
