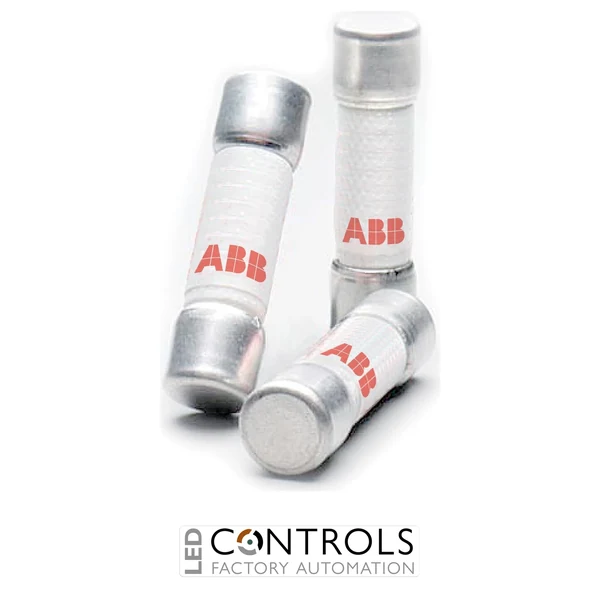

ABB E9F25PV E 9F25 PV is a 25 A 1000 V DC gPV cylindrical photovoltaic fuse link in a 10.3 × 38 mm format with a 50 kA maximum breaking capacity for PV string and DC circuit protection.
£16.52
The ABB E9F25PV (E 9F25 PV) is a high-performance gPV cylindrical fuse link specifically designed for overcurrent protection in photovoltaic DC installations. As part of the ABB E 9F PV range, it provides dependable protection for solar PV strings, modules and associated DC equipment where reliable interruption of photovoltaic fault currents is essential.
With a rated current of 25 A and rated voltage of 1000 V DC, the E 9F25 PV is designed for the demanding electrical characteristics of photovoltaic systems. Its gPV fuse classification is specifically intended for PV string protection, while the cylindrical 10.3 × 38 mm format enables installation in compatible photovoltaic fuseholders and fuse disconnectors.
The E 9F25 PV provides a 50 kA maximum breaking capacity and has a power loss of approximately 3 W at rated operating conditions per pole. Designed in accordance with IEC 60269-6, it provides a compact and purpose-built solution for protecting photovoltaic DC circuits against potentially damaging overcurrents.
Photovoltaic arrays can generate sustained DC fault currents that require protection devices specifically designed for solar installations. gPV fuse links provide overcurrent protection tailored to photovoltaic circuits, helping protect PV modules, strings, conductors and associated electrical equipment against damaging fault conditions.
The ABB E 9F PV series is specifically developed for photovoltaic applications. Its 1000 V DC rating, 25 A current rating and compact cylindrical construction make the E 9F25 PV suitable for installation in compatible fuseholders protecting PV strings and associated DC distribution circuits.
Tick the specs you need, then view products that match.
| Current | 25 A | |
|---|---|---|
| Device Type | Fuse link | |
| Fuse Type | Cylindrical | |
| Series | E 9F PV / System pro M compact | |
| SKU | E9F25PV | |
| ABB order code | 2CSM213576R1801 | |
| EAN | 8012542135760 | |
| Product group | Protection & Control | |
| Product type | Photovoltaic cylindrical fuse link | |
| Fuse type | gPV | |
| Rated current | 25 A | |
| Rated voltage | 1000 V DC | |
| Maximum breaking capacity | 50 kA | |
| Power loss at rated operating conditions per pole | 3 W | |
| Fuse dimensions | 10.3 × 38 mm | |
| Construction material | GMG | |
| Standard | IEC 60269-6 | |
| Weight | approx. 7 g | |
| Pack quantity | 10 pieces |
The E 9F25 PV is a gPV cylindrical fuse link specifically designed to provide overcurrent protection for photovoltaic DC circuits, including PV module strings and associated solar distribution equipment.
The E 9F25 PV has a rated current of 25 A.
The fuse has a rated voltage of 1000 V DC, making it suitable for compatible high-voltage photovoltaic DC circuits.
The E 9F25 PV has a maximum breaking capacity of 50 kA, providing high fault-current interruption capability for photovoltaic applications.
The E 9F25 PV uses a cylindrical 10.3 × 38 mm format for installation in compatible photovoltaic fuseholders and fuse disconnectors.
ABB E 9F PV gPV cylindrical fuses provide purpose-designed overcurrent protection for photovoltaic strings, modules and associated DC equipment, helping deliver dependable circuit protection in commercial and industrial solar installations.
