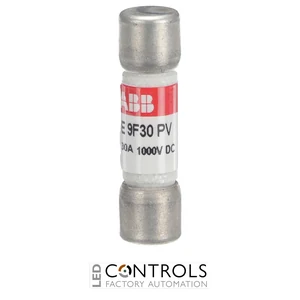

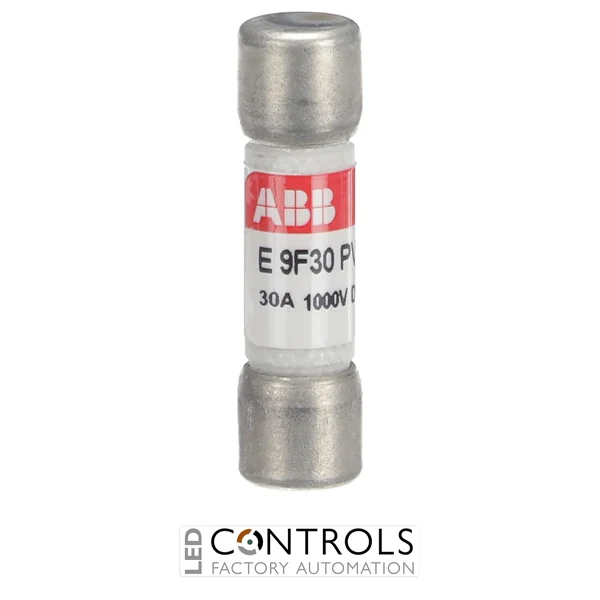

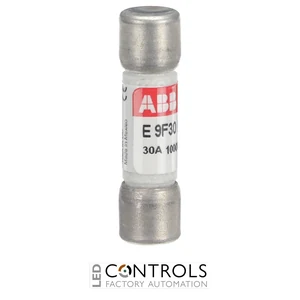

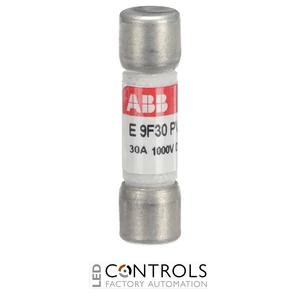

ABB E9F30PV E 9F30 PV is a 30 A 1000 V DC gPV cylindrical photovoltaic fuse link in a 10.3 × 38 mm format with a 10 kA breaking capacity for PV string, inverter and associated DC circuit protection.
£16.52
The ABB E9F30PV (E 9F30 PV) is a high-performance gPV cylindrical fuse link specifically designed for overcurrent protection in photovoltaic DC installations. As part of the ABB E 9F PV range, it provides dependable protection for solar PV strings, inverters and surge protection equipment where reliable interruption of DC fault currents is essential.
With a rated current of 30 A and rated operational voltage of 1000 V DC, the E 9F30 PV is designed for the demanding electrical characteristics of photovoltaic systems. Its photovoltaic-specific fuse characteristics provide protection for DC solar circuits, while the cylindrical 10.3 × 38 mm format enables installation in compatible PV fuseholders and fuse disconnectors.
The E 9F30 PV provides a 10 kA breaking capacity and a minimum breaking capability of 2.0 × In. Designed for photovoltaic circuit protection in accordance with IEC 60269-6, it provides a compact and purpose-built solution for protecting DC circuits against potentially damaging overcurrents.
Photovoltaic arrays can generate sustained DC fault currents that require protection devices specifically designed for solar installations. gPV fuse links are engineered for photovoltaic overcurrent protection, helping protect PV conductors, strings, inverters and associated electrical equipment against damage caused by reverse currents and other fault conditions.
The ABB E 9F PV series is specifically designed for photovoltaic applications. Its 1000 V DC rating, 30 A current rating and compact cylindrical construction make the E 9F30 PV suitable for installation in compatible fuseholders protecting individual PV strings and associated inverter and surge protection circuits.
Tick the specs you need, then view products that match.
| Current | 30 A | |
|---|---|---|
| Device Type | Fuse link | |
| Fuse Type | Cylindrical | |
| Series | E 9F PV | |
| SKU | E9F30PV | |
| ABB order code | 2CSM213586R1801 | |
| EAN | 8012542135869 | |
| Product group | Protection & Control | |
| Product type | Photovoltaic cylindrical fuse link | |
| Fuse class | gPV | |
| Rated current | 30 A | |
| Rated operational voltage | 1000 V DC | |
| Breaking capacity | 10 kA | |
| Minimum breaking capability | 2.0 × In | |
| Fuse dimensions | 10.3 × 38 mm | |
| Standard | IEC 60269-6 | |
| Weight | approx. 7 g | |
| Pack quantity | 10 pieces |
The E 9F30 PV is a gPV cylindrical fuse link specifically designed to provide overcurrent protection for DC circuits in photovoltaic installations, including PV strings, inverters and associated protection equipment.
The E 9F30 PV has a rated current of 30 A.
The fuse has a rated operational voltage of 1000 V DC, making it suitable for compatible high-voltage photovoltaic DC circuits.
The E 9F30 PV has a breaking capacity of 10 kA for photovoltaic DC circuit protection.
The E 9F30 PV uses a cylindrical 10.3 × 38 mm format for installation in compatible photovoltaic fuseholders and fuse disconnectors.
ABB E 9F PV gPV cylindrical fuses provide purpose-designed overcurrent protection for photovoltaic strings, inverters and associated DC equipment, helping deliver dependable circuit protection in commercial and industrial solar installations.
