Why Choose the ABB ZXM1042 250A Busbar?

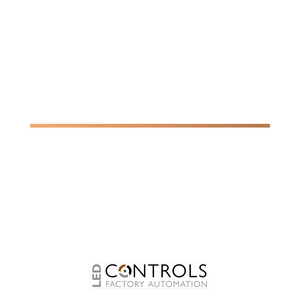

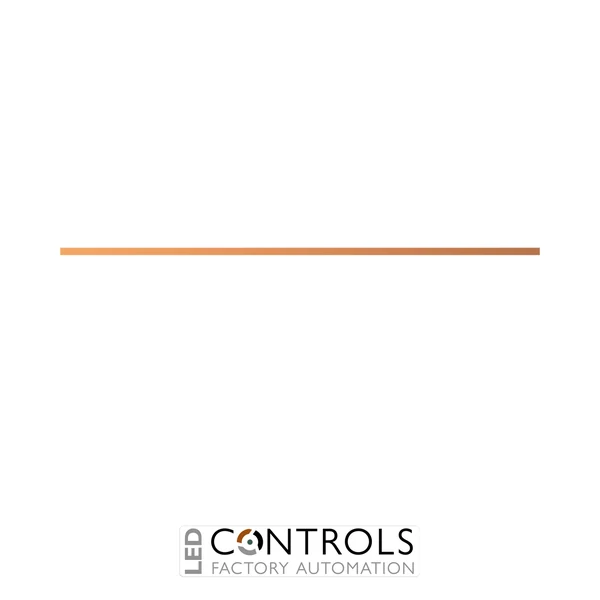

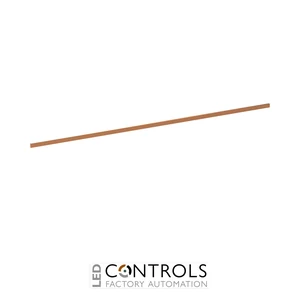

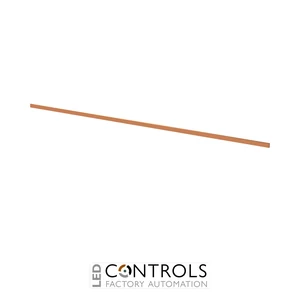

The ABB ZXM1042 is a 12 × 5 mm copper busbar designed for compatible ABB CombiLine low-voltage sub-distribution assemblies. Supplied under ABB order code 2CPX041518R9999, it provides a factory-mounted conductor for applications requiring a 3-panel-width busbar.
The ZXM1042 is rated at a maximum current of 250 A and has a 12 × 5 mm copper cross-section. Its mounted configuration has a length of 798 mm, corresponding to a 3 PW installation width within compatible ABB cabinet assemblies.
As part of ABB's DESUJ Sub Distribution product group, the ZXM1042 is intended for professional panel-building applications where structured current distribution is required. It is supplied mounted and installed in the cabinet, providing a system-specific busbar solution for compatible modular distribution equipment.
Key Advantages
- 250 A maximum rated current for compatible low-voltage distribution applications.
- Compact 12 × 5 mm copper busbar construction.
- 3 PW / 798 mm configuration for wider modular assemblies.
- Designed for compatible ABB CombiLine distribution systems.
- Rigid, non-flexible construction for structured cabinet installations.
- Supplied mounted and installed in the cabinet.
Key Features
- ABB ZXM1042 copper busbar.
- 250 A maximum rated current.
- 12 × 5 mm busbar cross-section.
- 3 PW configuration.
- 798 mm overall length.
- 12 mm height.
- 5 mm thickness.
- Solid, non-flexible busbar construction.
- Designed for compatible CombiLine sub-distribution assemblies.
- Factory-mounted cabinet version.
Reliable Current Distribution in Modular Assemblies
Copper busbars provide a dedicated low-resistance conductor for distributing electrical current within low-voltage assemblies. Their rigid construction supports an organised cabinet layout while providing a practical foundation for structured power distribution across compatible modular equipment fields.
The ABB ZXM1042 combines a 250 A maximum rating with a 12 × 5 mm copper cross-section and 798 mm length. Its 3 PW format and factory-mounted configuration make it a dedicated busbar component for compatible ABB CombiLine sub-distribution assemblies.
Typical Applications
- ABB CombiLine sub-distribution assemblies.
- Commercial and industrial distribution cabinets.
- 250 A busbar distribution arrangements.
- Factory-assembled low-voltage switchboards.
- Modular electrical distribution systems.
- Electrical panel-building and system-integration projects.
