Why Choose the ABB ZXM1043 250A Busbar?

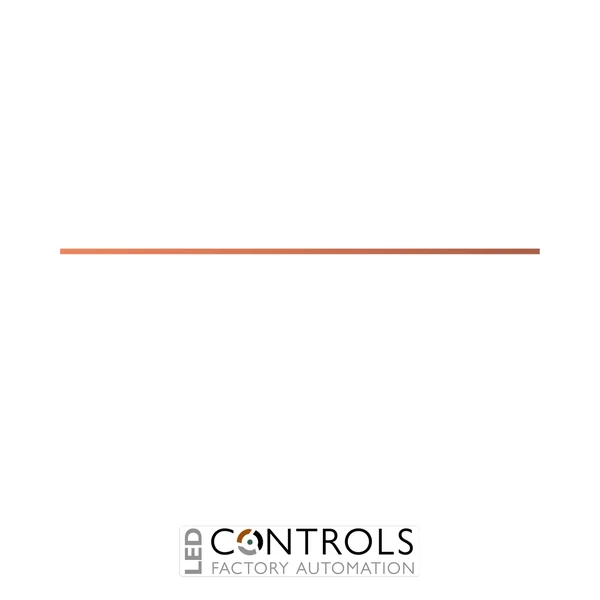

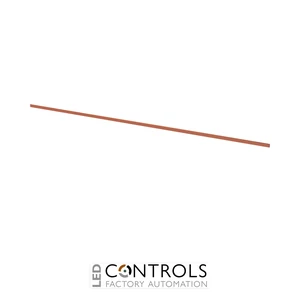

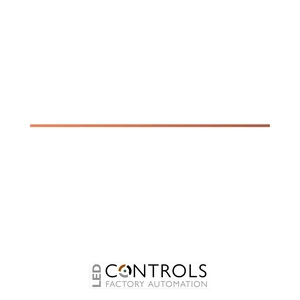

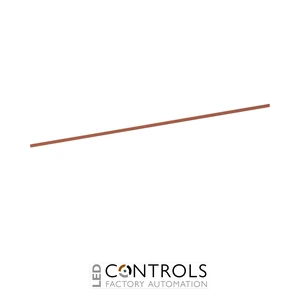

The ABB ZXM1043 is a 250 A busbar designed for structured power distribution within compatible ABB subdistribution assemblies. Supplied under ABB order code 2CPX041519R9999, the ZXM1043 combines a 12 × 5 mm busbar cross-section with a 4 PW installation format for integration into modular low-voltage distribution cabinets.
As part of ABB's DESUJ Sub Distribution product group, the ZXM1043 provides a robust conductive path for distributing electrical power between compatible components within a panel assembly. Its defined 250 A rating and compact busbar dimensions make it suitable for professional distribution-board construction where an organised and dependable internal power-distribution system is required.
The ZXM1043 is supplied as a mounted system component for compatible ABB cabinet configurations. Its 4 PW format enables integration across a four-panel-width section, supporting systematic panel construction and coordinated installation alongside other ABB busbar, mounting and distribution components.
Key Advantages
- Purpose-designed busbar for ABB subdistribution systems.
- 250 A rated current for compatible low-voltage distribution applications.
- 12 × 5 mm busbar cross-section provides a compact conductive profile.
- 4 PW configuration for compatible modular cabinet sections.
- Supports structured and organised internal power distribution.
- Designed for coordinated integration with compatible ABB distribution components.
- Suitable for professional commercial and industrial panel construction.
Key Features
- ABB DESUJ Sub Distribution system component.
- 250 A busbar rating.
- 12 × 5 mm busbar dimensions.
- 4 PW installation format.
- Rigid busbar construction for dependable cabinet integration.
- Designed for low-voltage electrical distribution assemblies.
- Supports systematic power distribution within compatible ABB cabinets.
- Mounted configuration for integration into the intended distribution system.
Reliable Power Distribution for Modular Cabinets
Busbars provide a low-resistance conductive path for distributing electrical power between devices and functional sections within low-voltage switchboards and distribution cabinets. Their rigid construction helps panel builders establish an organised electrical infrastructure while reducing the need for extensive individual power wiring between compatible components.
With its 250 A rating, 12 × 5 mm profile and 4 PW configuration, the ABB ZXM1043 provides a coordinated busbar solution for compatible ABB subdistribution assemblies. The defined system format supports efficient cabinet planning, installation and maintenance in professional electrical distribution applications.
Typical Applications
- ABB low-voltage subdistribution systems.
- Commercial electrical distribution boards.
- Industrial low-voltage distribution cabinets.
- Internal power-distribution busbar systems.
- Modular switchboard assemblies.
- Professional electrical panel building.
