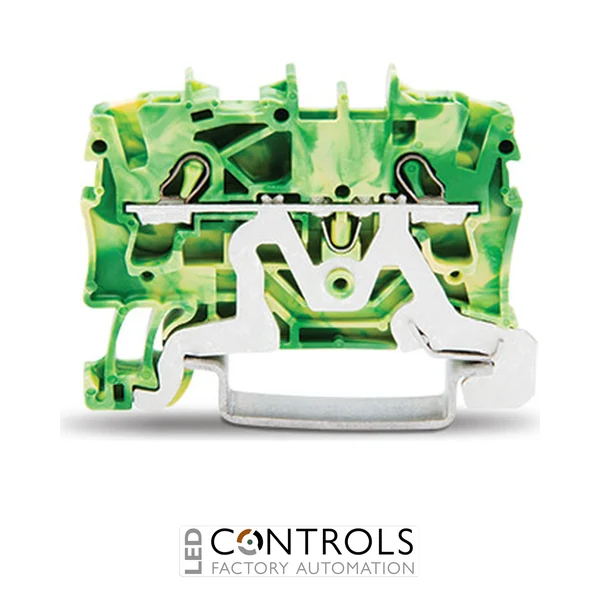

WAGO 2002-1207 TOPJOB S green-yellow 2-conductor ground terminal block with 2.5 mm² nominal cross-section and Push-in CAGE CLAMP connection technology for protective-earth DIN-rail wiring and Ex e II applications.
£1.77
The WAGO 2002-1207 is a compact 2-conductor ground terminal block from the WAGO TOPJOB® S 2002 Series, designed to provide reliable protective-earth connections in industrial control panels, machinery and electrical distribution systems. Featuring a 2.5 mm² nominal cross-section and distinctive green-yellow housing, it provides clear identification of protective conductor connections within DIN-rail terminal assemblies.
The terminal block uses WAGO Push-in CAGE CLAMP® connection technology, enabling suitable solid conductors and conductors with ferrules to be inserted directly while maintaining dependable spring contact pressure. This screwless connection method helps reduce installation time while providing a vibration-resistant and maintenance-friendly connection for demanding industrial environments.
Designed for Ex e II applications, the 2002-1207 is suitable for installations requiring dependable protective-earth termination under applicable hazardous-area requirements. Its slim 5.2 mm width, front-entry wiring, side and centre marking facilities and compatibility with standard 35 × 7.5 mm and 35 × 15 mm DIN rails make it well suited to compact and organised panel construction.
Ground terminal blocks provide an essential connection between protective conductors and the DIN-rail grounding system in electrical installations. The WAGO 2002-1207 combines this protective-earth function with spring-pressure connection technology to provide secure conductor termination without conventional screw clamping.
WAGO Push-in CAGE CLAMP® technology allows suitable conductors to be inserted directly into the connection point, while the spring maintains consistent contact pressure. Combined with its narrow profile and clearly identifiable green-yellow housing, the 2002-1207 provides an efficient solution for structured protective-earth wiring in modern control and distribution panels.
Tick the specs you need, then view products that match.
| Number of Connection Points | 2 | |
|---|---|---|
| Product Series | WAGO TOPJOB S | |
| Connection | Push-in | |
| Terminal Type | Earth (PE) | |
| Conductor Size | 2.5 mm² | |
| Number of Levels | 1 | |
| Colour | Green/Yellow | |
| HS Code | 85369010 | |
| Country of Manufacture | Germany | |
| Manufacturer | WAGO | |
| Series | TOPJOB® S 2002 Series | |
| Model | 2002-1207 | |
| Product type | 2-conductor ground / protective-earth terminal block | |
| Terminal type | Earth / PE | |
| Connection technology | Push-in CAGE CLAMP® | |
| Actuation type | Push-in | |
| Nominal cross-section | 2.5 mm² | |
| Solid conductor range | 0.25–4 mm² | |
| Solid conductor push-in range | 0.75–4 mm² | |
| Fine-stranded conductor range | 0.25–4 mm² | |
| Fine-stranded conductor with insulated ferrule | 0.25–2.5 mm² | |
| Fine-stranded conductor with ferrule, push-in | 1–2.5 mm² | |
| Connectable conductor material | Copper | |
| Number of connection points | 2 | |
| Number of potentials | 1 | |
| Number of levels | 1 | |
| Number of jumper slots | 2 | |
| Strip length | 10–12 mm | |
| Wiring direction | Front-entry | |
| Mounting type | DIN-35 rail | |
| Compatible DIN rails | 35 × 7.5 mm and 35 × 15 mm | |
| Marking | Side and centre marking | |
| Suitable applications | Ex e II | |
| Colour | Green-yellow | |
| Insulation material | Polyamide PA66 | |
| Width | 5.2 mm | |
| Height | 50.8 mm | |
| Depth from upper edge of DIN rail | 32.9 mm |
The WAGO 2002-1207 is a protective-earth terminal block used to connect protective conductors to the grounding system in DIN-rail-mounted industrial electrical installations.
The terminal block has a nominal cross-section of 2.5 mm² and accepts selected solid and fine-stranded copper conductors from 0.25–4 mm².
It uses WAGO Push-in CAGE CLAMP® spring connection technology for fast, secure and maintenance-friendly conductor termination.
Yes. The WAGO 2002-1207 is specified as suitable for Ex e II applications, subject to the applicable certification and installation requirements.
The terminal block is designed for standard 35 × 7.5 mm and 35 × 15 mm DIN rails.
WAGO TOPJOB® S terminal blocks are widely used in industrial panel building and automation applications, combining compact DIN-rail construction with dependable spring-pressure connection technology for efficient and organised electrical wiring.
